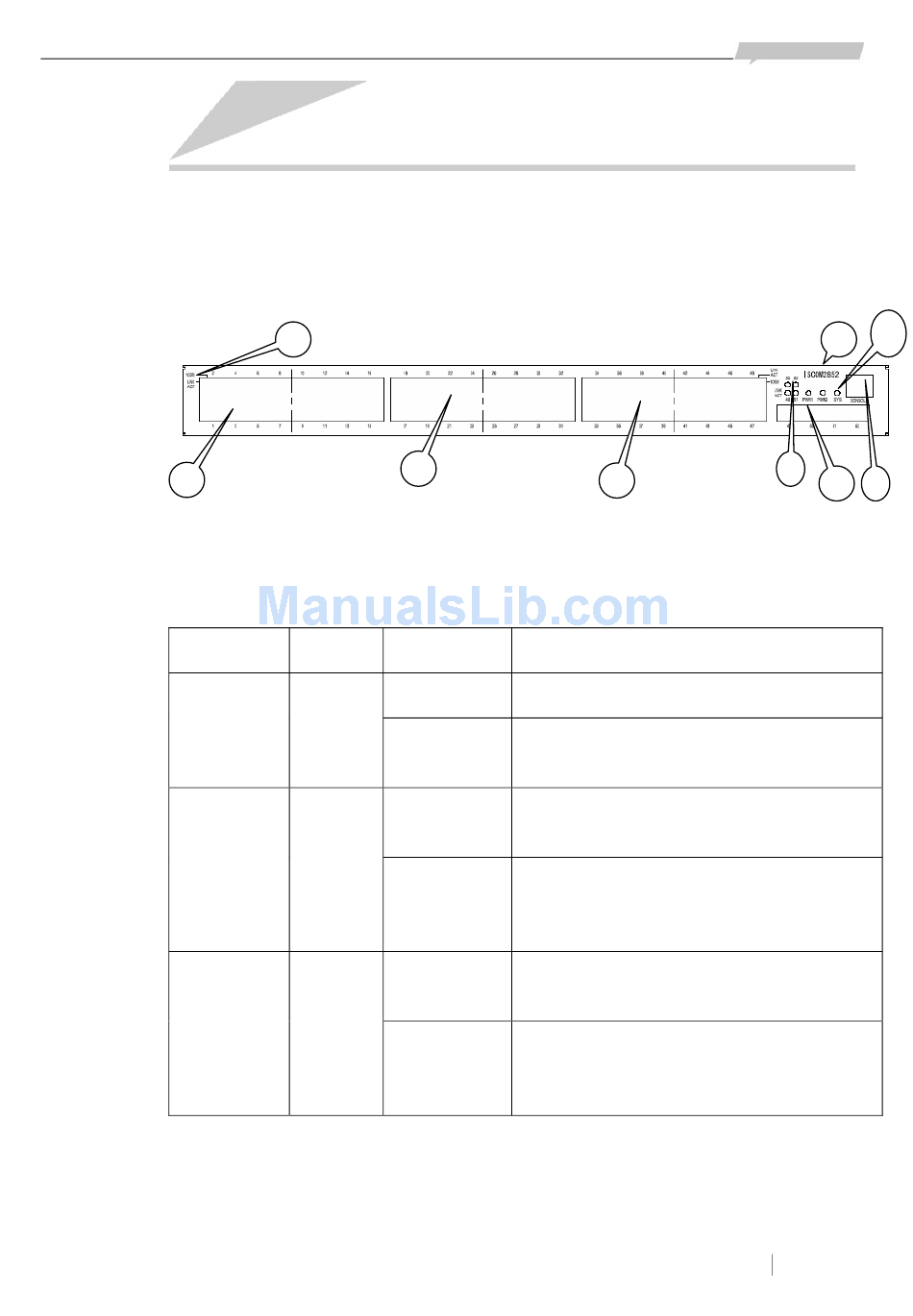

3.1 Device front panel description

48 RJ-45 interfaces, 4 SFP interfaces, 1 CONSOLE interface and dozens of status indicators are
placed on the front panel of ISCOM2852 switch (see the figure below).
3
In the figure shown above:
① The model of the switch is ISCOM2852.
② 3 device status indicators: SYS, PWR1 and PWR2.
Indicator
SYS
PWR1
PWR2
③ 48 10/100M Ethernet interfaces.
④ 48 groups of indicators for the 48 10/100M Ethernet interfaces. There are 2 indicators for each
SFP interface: LNK/ACT and 100M.

Chapter 3 Device Appearance

4
3
Color Status
Green Flickering
Other
Status
Green ON
OFF
Green ON
OFF
3
Description
The system is operating in order.
Software fault or the system is initializing
after electrifying.
The power supply module on the left is
electrified.
The power supply module on the left is not
electrified, or fault occurs on the power
supply.
The power supply module on the right is
electrified.
The power supply module on the right is not
electrified, or fault occurs on the power
supply.
