Notes:
If the Charging LED did not come on, check the connection to the vehicle' s DC accessory outlet. Rotate the adapter slightly to
make sure there is good contact. If it is properly connected, the battery may be in fault condition. Manufacturer suggests to have
the battery tested by a qualified battery service technician.
Some vehicles require that the ignition be turned to the ACC (accessory) position to activate the DC accessory outlet. If your
vehicle ignition is required to be turned to the ACC position, be sure all the vehicle accessories (i.e. heater, fan, radio, TV,
lights... etc) are turned off. If not turned off, the charger might not be able to charge the battery.
4. When the charging complete LED ( ) lights, the battery is fully charged.
When disconnecting charger, disconnect AC cord, and then remove the 12 volt DC accessory plug
from the vehicle accessory outlet.
Connecting and Charging the Battery with the Terminal Rings

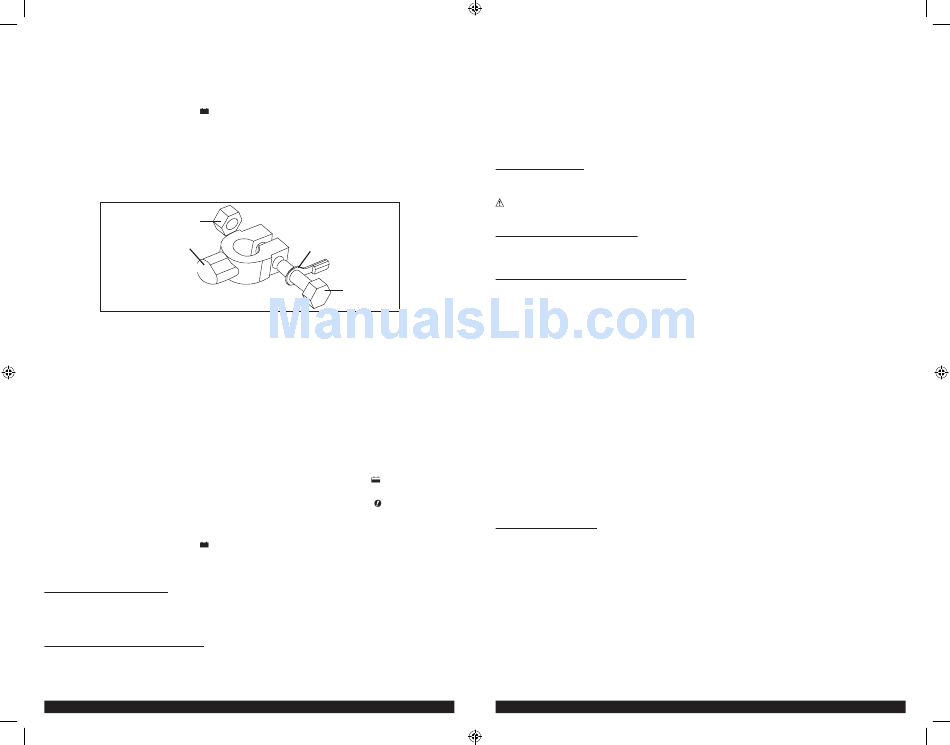

CONNECTING THE CHARGER WITH TERMINAL RINGS
The charger's output leads have crimped, color-coded terminal rings (RED-POSITIVE and BLACK-
NEGATIVE). These rings connect directly to the corresponding connectors on the battery posts.
NUT
CONNECTOR
1. Remove the nuts from the bolts of the battery post's connectors.
2. Position the RED terminal on the bolt of the POSITIVE battery post connector.
3. Position the BLACK terminal on the NEGATIVE post connector; then replace the nuts.
IMPORTANT: If there is any problem connecting the output leads, check with a reputable auto supply
store or contact the Customer Service Department toll-free at 1-877-571-2391 for assistance in
finding an appropriate connection device for your particular application.
CHARGING WITH THE TERMINAL RINGS
1. With the ring terminals connected to the battery and with ring terminal connector held as far away
from the battery as practical, insert the double barrel tip of the terminal ring cable into the double
barrel tip of the battery charger cable (male-to-female and female-to-male). Then plug the battery
charger's power cord into an AC outlet. The power LED will light blue to indicate that the charger is
plugged in and ready.
Notes:
If the Power LED does not come on, check connection with the AC outlet. Make sure the AC outlet is functional.
2. When the unit is properly connected and charging, the battery charging LED ( ) will light yellow
to indicate the battery is charging.
Notes:
If the terminal rings are incorrectly connected with regard to polarity, the Reverse Polarity/Fault LED ( ) will light. Unplug the
charger; then remove the terminal rings. Reconnect the terminal rings properly.
If the Charging LED did not come on, check the connection to the battery. If the terminal rings are properly connected, the battery
may be in fault condition. Manufacturer suggests to have the battery tested by a qualified battery service technician.
3. When the charging complete LED ( ) lights green, the battery is fully charged.
When disconnecting charger, disconnect AC cord, and then remove the terminal rings from battery
terminals.

TROUBLESHOOTING

Unit Not Charging
• Check that the charger is properly connected to a live 120 volt AC outlet.
• If the battery to be charged has fallen below 2 volts, the battery cannot be recharged with this unit.
CARE AND MAINTENANCE
Storage
• Store the unit in a clean, dry, cool place when not in use.
• Clean the unit casing and cords (as necessary) with a dry (or slightly damp) cloth. Ensure that unit
is completely disconnected from battery and power source before cleaning.
BC2WBD_ManualENSP_071514.indd 8-9
TERMINAL RING
BOLT
8
• To maintain the operating condition and maximize the life of the charger cords, always coil them
loosely for storage. Do not wrap them around the unit or crimp them with a tight band.
Fuse Replacement (12 Volt DC Accessory Plug)
1. Remove plug from accessory outlet. Remove the grooved cap by turning counter clockwise and
lifting off.
2. Remove center pin and spring. Remove fuse.
3. Replace fuse with same type and size fuse (5 amp).
4. Replace center pin and spring inside plug.
5. Replace gold cap by turning clockwise.
ACCESSORIES
Recommended accessories for use with this unit may be available from the manufacturer. If you need
assistance regarding accessories, please contact the manufacturer at 1-877-571-2391.
WARNING: The use of any accessory not recommended for use with this appliance could be
hazardous.
SERVICE INFORMATION
Whether you need technical advice, repair, or genuine factory replacement parts, contact the
manufacturer at 1-877-571-2391.
ONE-YEAR LIMITED WARRANTY
The manufacturer warrants this product against defects in materials and workmanship for a period
of ONE (1) YEAR from the date of retail purchase by the original end-user purchaser ("Warranty
Period").
If there is a defect and a valid claim is received within the Warranty Period, the defective product can
be replaced or repaired in the following ways: (1) Return the product to the manufacturer for repair or
replacement at manufacturer's option. Proof of purchase may be required by manufacturer. (2) Return
the product to the retailer where product was purchased for an exchange (provided that the store is a
participating retailer). Returns to retailer should be made within the time period of the retailer's return
policy for exchanges only (usually 30 to 90 days after the sale). Proof of purchase may be required.
Please check with the retailer for their specific return policy regarding returns that are beyond the time
set for exchanges.
This warranty does not apply to accessories, bulbs, fuses and batteries; defects resulting from normal
wear and tear, accidents; damages sustained during shipping; alterations; unauthorized use or repair;
neglect, misuse, abuse; and failure to follow instructions for care and maintenance for the product.
This warranty gives you, the original retail purchaser, specific legal rights and you may have other
rights which vary from state to state or province to province. This product is not intended for
commercial use.
Please complete the Product Registration Card and return within 30 days from purchase of the
product to: Baccus Global LLC, 595 S. Federal Highway, Suite 210, Boca Raton, FL 33432. Baccus
Global LLC, toll-free number: (877) 571-2391.

SPECIFICATIONS

Input: 120VAC, 60Hz, 0.6A
Output: 12VDC, 2A
Imported by
Baccus Global LLC
595 S. Federal Highway, Suite 210
Boca Raton, FL 33432
(877) 571-2391
9
