Remote Control; Inserting The Batteries - Sharp XV-Z7000U/E Service Manual

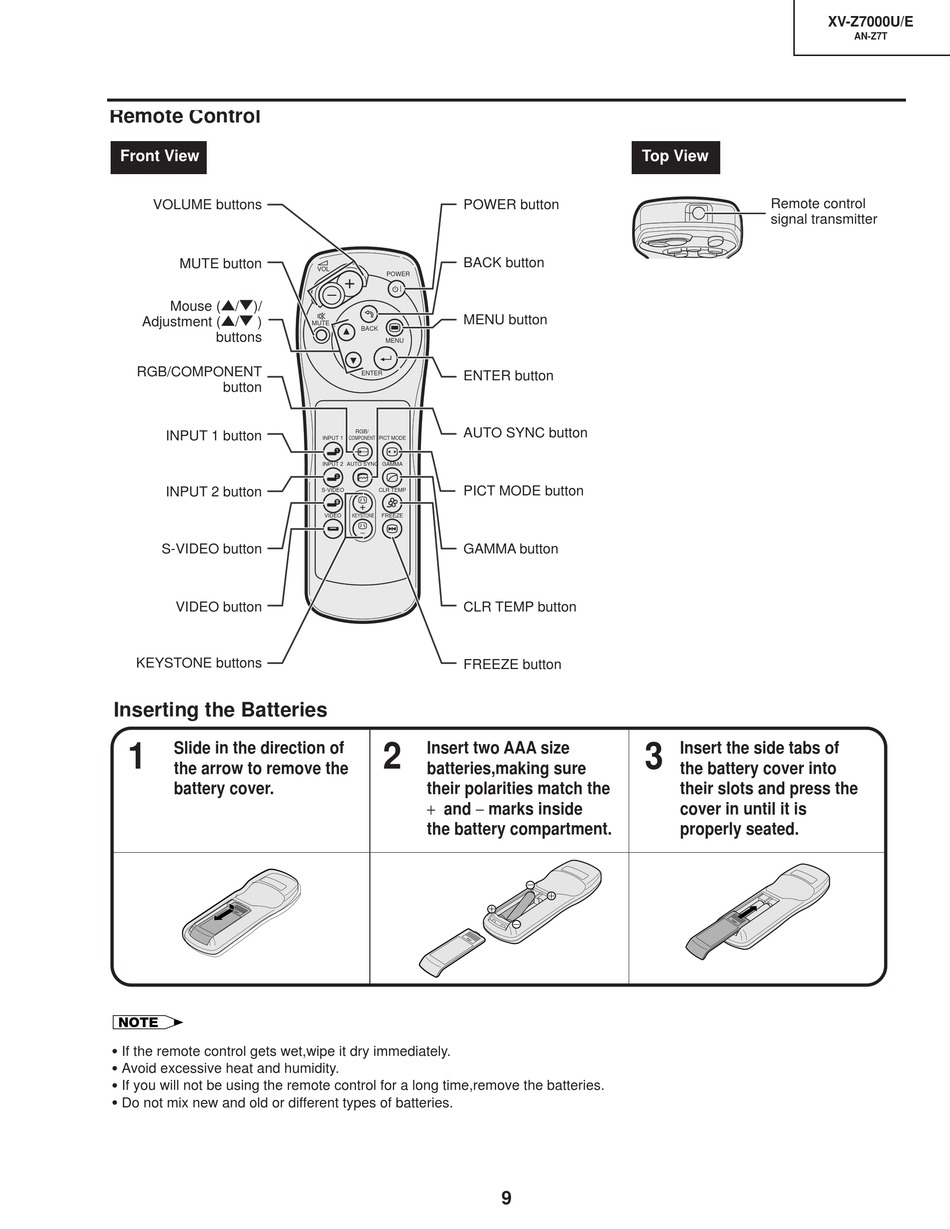

Remote Control

Front View
VOLUME buttons
MUTE button
Mouse (]/[)/
Adjustment (]/[ )
buttons
RGB/COMPONENT
button
INPUT 1 button
INPUT 2 button
S-VIDEO button
VIDEO button
KEYSTONE buttons

Inserting the Batteries

1 Slide in the direction of
the arrow to remove the
battery cover.
If the remote control gets wet,wipe it dry immediately.
Avoid excessive heat and humidity.
If you will not be using the remote control for a long time,remove the batteries.
Do not mix new and old or different types of batteries.
POWER button
BACK button
VOL
POWER
MENU button
MUTE
BACK
MENU
ENTER button
ENTER
AUTO SYNC button
RGB/
INPUT 1 COMPONENT PICT MODE
AUTO SYNC GAMMA
INPUT 2
PICT MODE button
S-VIDEO CLR TEMP
VIDEO KEYSTONE FREEZE
GAMMA button
CLR TEMP button
FREEZE button
2 Insert two AAA size
batteries,making sure
their polarities match the
+ and − marks inside
the battery compartment.
Top View
3 Insert the side tabs of
the battery cover into
their slots and press the
cover in until it is
properly seated.
9
XV-Z7000U/E
AN-Z7T
Remote control
signal transmitter
