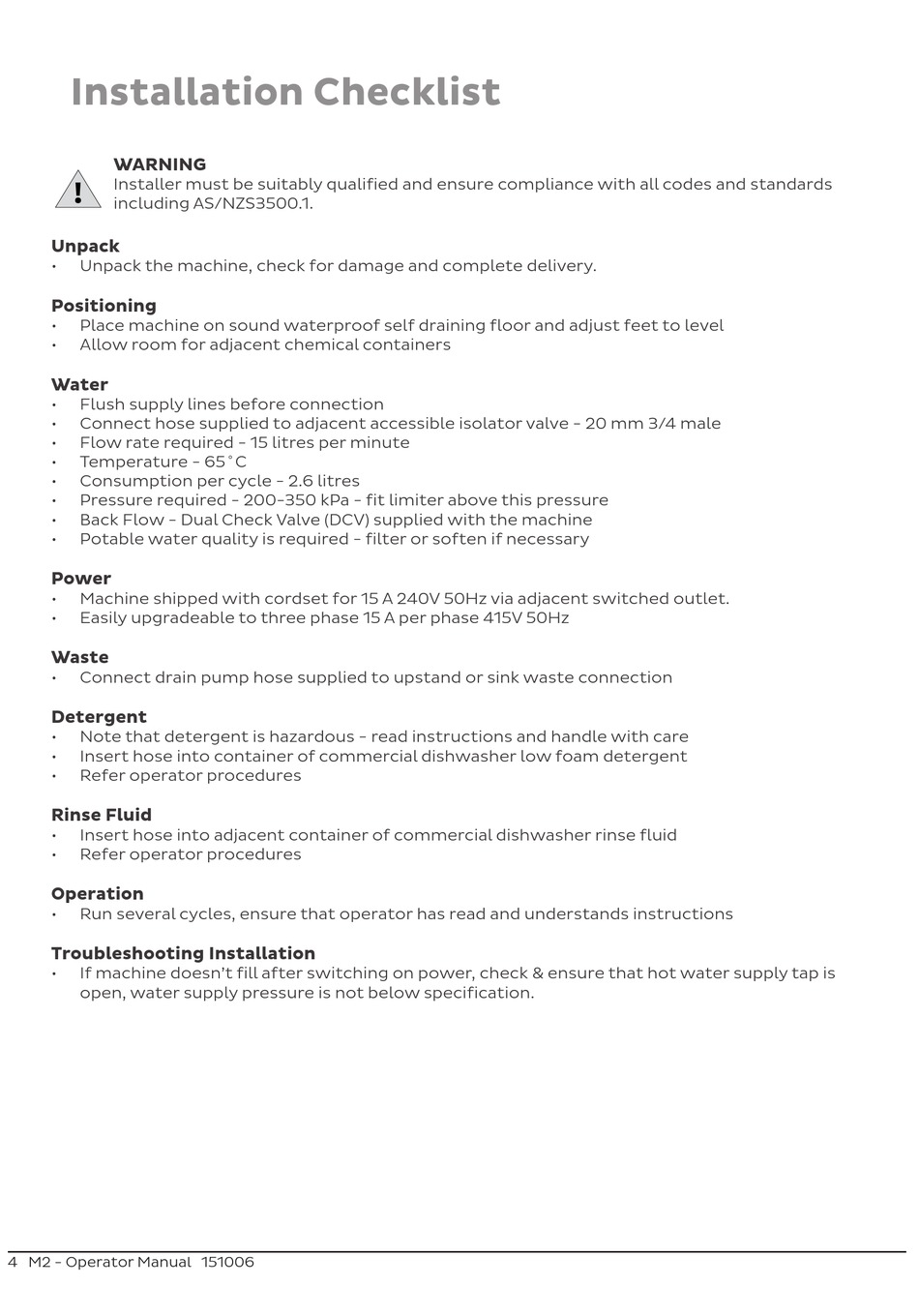

Installation Checklist
WARNING
WARNING
!
Installer must be suitably qualified and ensure compliance with all codes and standards
Before installation and commissioning, you must read the safety instructions
including AS/NZS3500.1.
and warnings carefully and all the warning labels attached to the equipment.
Unpack
IMPORTANT
!
•
Unpack the machine, check for damage and complete delivery.
Failure to comply (even partially) with the instructions given in this manual
will invalidate the product warranty and relieves the manufacturer of any
responsibility.
Positioning
•
Place machine on sound waterproof self draining floor and adjust feet to level
!
IMPORTANT
•
Allow room for adjacent chemical containers
the alteration of machine operation, design or the replacement of parts not
approved by the manufacturer may void warranties and approvals.
Water
•
Flush supply lines before connection
•
Connect hose supplied to adjacent accessible isolator valve - 20 mm 3/4 male
•
Flow rate required - 15 litres per minute
•
Temperature - 65˚C
•
Consumption per cycle - 2.6 litres
•
Pressure required - 200-350 kPa - fit limiter above this pressure
•
Back Flow - Dual Check Valve (DCV) supplied with the machine
•
Potable water quality is required - filter or soften if necessary
Power
•
Machine shipped with cordset for 15 A 240V 50Hz via adjacent switched outlet.
•
Easily upgradeable to three phase 15 A per phase 415V 50Hz
We have checked that the contents of this document correspond to the model described. there may be
discrepancies nevertheless, and no guarantee can be given that they are completely identical. the information
contained in this document is reviewed regularly and any necessary changes will be included in the next edition. We
Waste
welcome suggestions for improvement.
•
Connect drain pump hose supplied to upstand or sink waste connection
Document subject to change without prior notice.
Information supplied in this manual is copyright. no part of this work may be reproduced or copied in any form or
by any means, electronic or mechanical without the express permission of the author / publisher.
Detergent
•
Note that detergent is hazardous - read instructions and handle with care
•
Insert hose into container of commercial dishwasher low foam detergent
Service 1800 622 216
•
Refer operator procedures
Parts 1800 337 963
Rinse Fluid
•
Insert hose into adjacent container of commercial dishwasher rinse fluid
•
Refer operator procedures
Distributed in australia by Moffat pty limited. 740 Springvale road, Mulgrave VIC 3170.
• tel (03) 9518 3888 • Fax (03) 9518 3818 • Web www.moffat.com.au
Operation
•
Run several cycles, ensure that operator has read and understands instructions
2
m2 High performance passthrough Dishwasher - Operator Manual
Troubleshooting Installation
•
If machine doesn't fill after switching on power, check & ensure that hot water supply tap is
open, water supply pressure is not below specification.
