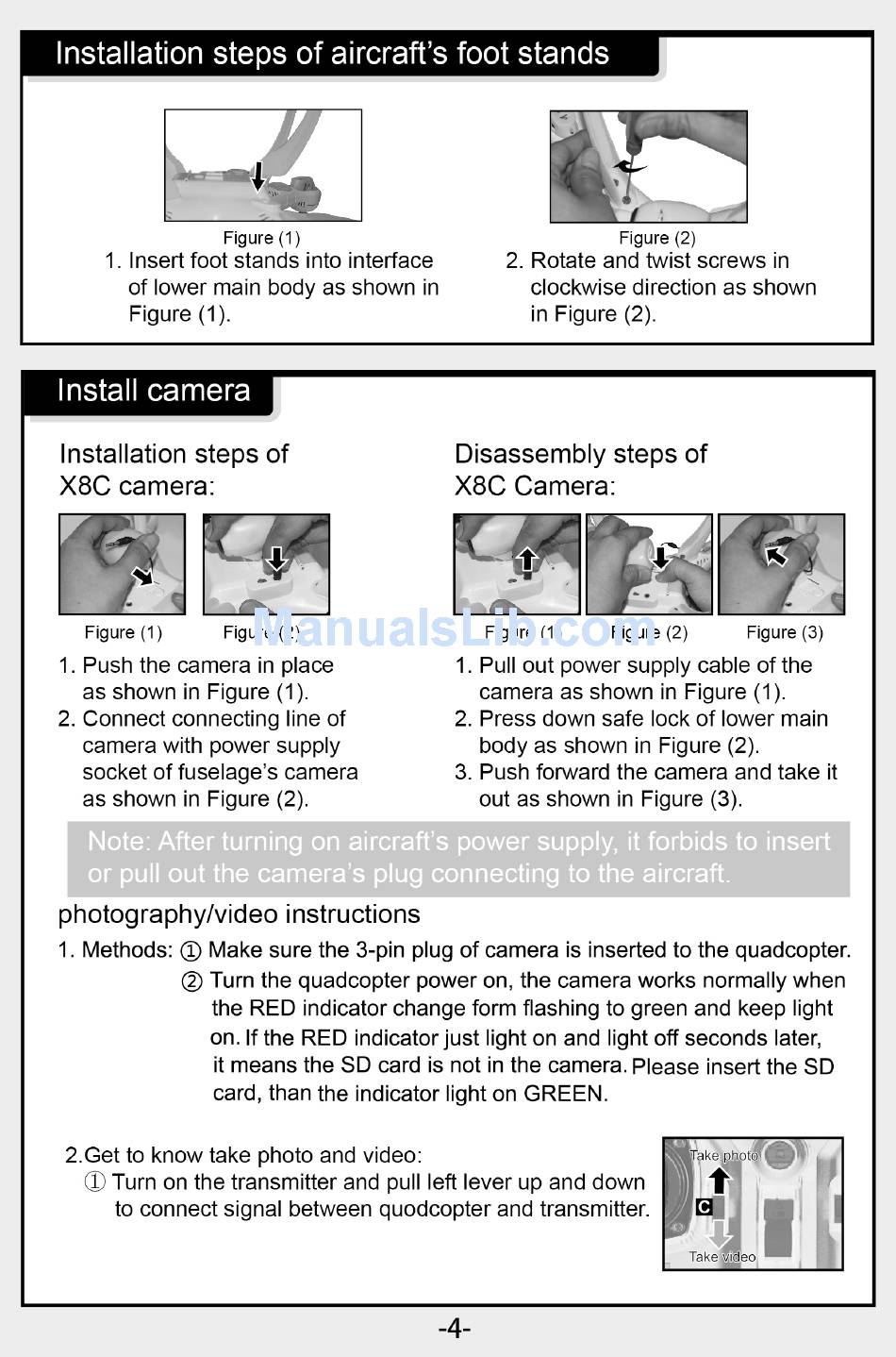

SYMA X8C Instruction Manual page 5

Installation steps of aircraft's foot stands
Figure (1)
1. Insert foot stands into interface
of lower main body as shown in
Figure (1).
Figure (2)
2. Rotate and twist screws in
clockwise direction as shown
in Figure (2).
nsta camera
Installation steps of
X8C camera:
Figure (1) Figure (2)
1. Push the camera in place
as shown in Figure (1).
2. Connect connecting line of
camera with power supply
socket of fuselage's camera
as shown in Figure (2).
Disassembly steps of
X8C Camera:
i
I
Figure (1) Figure (2) Figure (3)
1. Pull out power supply cable of the
camera as shown in Figure (1).
2. Press down safe lock of lower main
body as shown in Figure (2).
3. Push forward the camera and take it
out as shown in Figure (3).
Note: After turning on aircraft's power supply, it forbids to insert
or •ull
OU
camera's •lug connecting to the aircraft.
photography/video instructions
1.
Methods: 0 Make sure the 3-pin plug of camera is inserted to the quadcopter.
C) Turn the quadcopter power on, the camera works normally when
the RED indicator change form flashing to green and keep light
on. If the RED indicator just light on and light off seconds later,
it means the SD card is not in the camera. Please insert the SD
card, than the indicator light on GREEN.
2.Get to know take photo and video:
OD Turn on the transmitter and pull left lever up and down
to connect signal between quodcopter and transmitter.
' .
..1) 'fake photo
t
El
Take video
-4-
