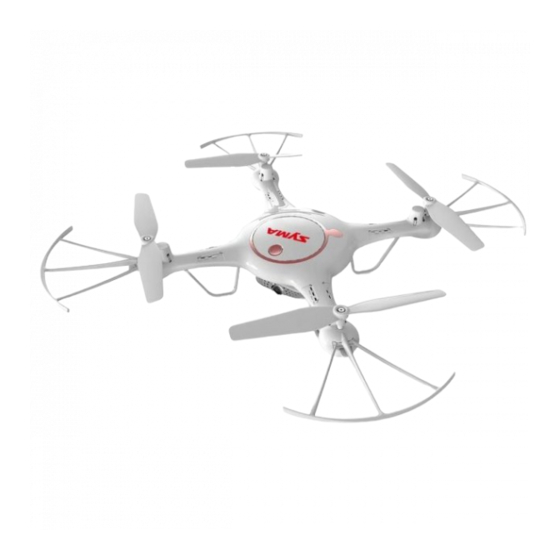

720P POSITIONING AERIAL DRONE WITH ADJUSTABLE CAMERA
USER MANUAL
1
MAIN FEATURES
●Utilizes the 4-axis structure, enabling the drone to be even more
flexible and speedy. It suitable for both spacious indoor & outdoor
areas.
●Built-in 6-axis gyro stabilizer, barometer and optical flow sensor to
ensure the accuracy of inflight position.
●Be capable of 360°stunt flip function.
●Headless function makes it easier for directional control.
●Auto take-off and landing function make it easier and safer to control.
●HD adjustable camera with real-time transmission function for getting
the fun of aerial photography.
●Smartphone control is available.
GYRO REMOTE CONTROL SERIES
5UW-D
12+
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SYMA X5UW-D
Summary of Contents for SYMA X5UW-D
- Page 1 GYRO REMOTE CONTROL SERIES 5UW-D 720P POSITIONING AERIAL DRONE WITH ADJUSTABLE CAMERA USER MANUAL MAIN FEATURES ●Utilizes the 4-axis structure, enabling the drone to be even more flexible and speedy. It suitable for both spacious indoor & outdoor areas. ●Built-in 6-axis gyro stabilizer, barometer and optical flow sensor to ensure the accuracy of inflight position.
-
Page 2: Safety Guide
Safety Guide 1.Please store the small sized drone accessories in the place that is out of the reach of children. 2.This drone is very powerful. For all first-time flights, the left joystick must be slowly pushed up in order to prevent the drone from ascending too fast to avoid unnecessary collision and possible damage and injury. -
Page 3: Package Description
4.Transformer used with the aircraft should be examined regularly, such as the cord, plug, enclosures and other parts. In case of any damages is found, please stop using it unless it is repaired or replaced. Package Description The following items can be found Inside this product package: GYRO REMOTE CONTROL SERIES 5UW-D 720P POSITIONING AERIAL DRONE WITH ADJUSTABLE CAMERA... - Page 4 Installation of Mobile Phone Retaining Clip Mobile phone retaining clip’s attachment method: 1.Pull up the phone clip 2.Insert the phone clip 3. Press the handles to cover from behind the holder into the adjust the jaws. remote control. connector at the top of the remote control.
- Page 5 The charging time is about 130 minutes, hover flight time is approximately 7 minutes. Precautions as follows during charging of battery: - Avoid placing the active batteries in places with direct exposure, sunlight and high temperatures. For example, naked light or electrical equipment installations;...
-
Page 6: Battery Installation For Remote Control
Battery installation for remote control: Battery cover 4 x AA Batteries Battery Installation Method: Open up the battery cover at the back of the remote control. Correctly place 4 x AA alkaline batteries in the battery box in strict adherence to the polarity instructions ( batteries are not included). 1. - Page 7 Step 3:Press and hold the power button on the top of the drone to make sure the drone is turned “ON”. Step 4:Push the left joystick (throttle) up to the highest point and then pull down to the lowest point. When the indicator lights in the drone change from quick flashing to the continuous lighting, it means that...
- Page 8 3. Turning off the drone Method 1:Push the left joystick (throttle) to the lowest level and hold for 2 to 3 seconds, the drone can then be turned off. Method 2:Push the left and right joysticks to the bottom inner corners for 1 second, and the drone can be turned off.
-
Page 9: Trimming Operation
Left turning and right turning Left side flying and right side control flying control When the left joystick (throttle) is When the right joystick (rudder) is pushed towards the left or right, pushed towards the left or right, the drone will turn left or right the drone will fly sideways on the correspondingly. -
Page 10: Product Features
Product Features 1.Low-Voltage Protection: When the four indicator lights at the bottom of drone start flashing, it means that the drone's battery power is low. At this time, please control the drone return. 2.Over-Current Protection: When the drone encounters direct impact from a foreign object, or is obstructed, or the blades are not rotating, the drone will go into the over-current protection mode. - Page 11 6.Photo/ Video Shooting Function: ①Photo shooting function: Press the Photo button, the drone indicator and the red indicator light on the camera will flash once when the photo has been taken. ②Video shooting function: Press the Video button, the drone indicator and the indicator light on the camera will flash twice, and then turn long bright, it indicates the video is recording, press the Video button again, the indicator light on the drone is long bright, indicating the recording is...
- Page 12 9.Headless Function: ①Defining forward direction: ●Press on the power button of the remote control. ●Connect the battery to the drone, press the power button of the drone, and adjust the Front specified direction of the drone’s head under Left Right the headless mode as the new forward direction.
- Page 13 For Android phones,download and install the SYMA FLY APP by visiting the www.symatoys.com or by scanning the QR code. For IOS Apple phones,download and install the SYMA FLY APP by visiting the App Store or by scanning the QR code.
- Page 14 This device must not be collocated or operating in conjunction with any other antenna or transmitter.” Decoration of Conformity lnserts: “Hereby, GuangDong Syma model drone lndustrial co.,ltd, declares that this drone is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.”...
- Page 15 Accessories /Parts List (Optional) You can choose your favourite optional accessories as below. In order to make it easier for the customers to choose and purchase, we have specially offered each and every accessory. The accessories can be purchased through the local distributors.
-
Page 16: Product Descriptions
Product Descriptions Product Name Qty. Product Name Qty. Product Name Qty. Motor(Clockwise Main Stand Top Main Body Direction) Motor(Counter- Bottom Main Body Power Button clockwise Direction) Blade(Clockwise Landing Gear Top Body Cover Direction) Blade(Counter- Lamp Cover Battery Fastener clockwise Direction) Protective Gear Plating Object Receiver Board... -
Page 17: Main Specifications
Main Specifications 32cm 32cm Drone’s Length: 32cm Drone’s Width : 32cm Drone’s Height: 7cm Motor’s Model : 8x16 Battery : 3.7V 500mAh lithium battery Rectification Procedures Problem Reason Solution 1. The drone has entered into The drone low-voltage protection. 1. Charge up the drone. has no 2. - Page 18 Problem Reason Solution In the headless 1. Re-define the front direction. state, it is biased 1. Many collisions may cause For further details, see No. 9 towards the front head drift. Page 11 for details(Headless direction function). 1.Re-adjust the calibration until the drone is level to the ground.
- Page 19 QR code for android QR code for apple system iOS system Manufacturer Guangdong Syma Model drone Industrial Co., Ltd. The Crossing of No.2 West Xingye Road and North Xingye Road,Laimei. Industrial Park Chenghai District Shantou City Guangdong China. Contact person：SYMA Telephone：+86 0754 86381898 The company has the right of final interpretation of this instruction manual statement.
