Summary of Contents for SYMA X200

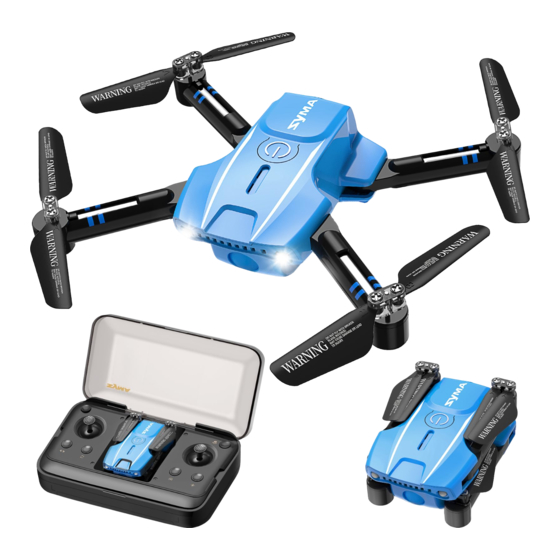

  • Page 1 X200 FOLDABLE DRONE +1 718-312-0558(US) +44 (0)7723708421(UK) +4933545519201(DE) usa@symatoys.com(US) eu@symatoys.com(EU) https://www.symatoys.com https://www.symatoys.com.cn User manual V1.0...
  • Page 3 Contents 1-21 ENGLISH INTRODUCE 23-43 DEUTSCH EINFÜHRUNG...
  • Page 4 Contents 1.0 Important Notices and Safety Guidelines 2.0 Product Description 2.1 Specifications 2.2 Take Out the Drone 2.3 Drone Diagram 2.4 Remote Control Diagram 3.0 Product Assembly 3.1 Folding the Drone 3.2 Propeller Installation 3.3 Drone Battery Charging 3.4 Battery Installation 4.0 Flight Guide 4.1 Flight Preparation and Turning the Drone On/Off...
  • Page 5 Syma will not take any responsibility.
  • Page 6 12. To ensure the electromagnetic environment requirement of the aviation radio (station), using remote controls in the zone, which is in a radius of about 5000m zones from the circle center of the airport runway, is forbidden. All users also should abide by the regulation of the radio set forth by government and regulatory agencies including the duration and area.
  • Page 7 2.0 Product Description 2.1 Specifications Drone Brand name SYMA Model/ITEM NO. X200 Drone weight about 35g Drone Size 156x142x30 mm Range about 35m Altitude about 10m Motor ø6 Battery capacity(built-in) 3.7V 400mAh Charging time about 90 minutes Flight time about 15 minutes...
  • Page 8 2.2 Take Out the Drone Remote control Open the Box Take out the drone container 2.3 Drone Diagram ① ③ Propeller ① Power switch ② Charging port ③ Arms ② ④ ④ 2.4 Remote Control Diagram One key take off/ Power switch land Left joystick...
  • Page 9 3.0 Product Assembly 3.1 Folding the Drone 1. Unfold the arms in the direction 2. Fold the arms in the direction of the arrow of the arrow 3.2 Propeller Installation Detaching the propellers Installing the propellers Remove the screws and the holder in the Place the propellers on the arm of the direction of the arrow, and then detach drone in the direction of the arrow,...
  • Page 10 3.3 Drone Battery Charging The indicator light is red when charging and will turn off when the battery is fully charged. USB charging cable 5V/1A adapter(Not included) Note: * Charge the drone with the USB charging cable that came with the product. * The battery will take longer to charge when you use an adapter with a smaller rated current.
  • Page 11 3.4 Battery Installation Remote control battery installation: Open the battery cover on the back of the remote control, and install 2*AAA batteries correctly according to the electrode instructions of the battery box(battery needs to be purchased separately) 2x1.5V“AAA”batteries Note: 1. When installing the battery, please make sure that the polarity of the battery matches the polarity of the battery box.
  • Page 12 Level calibration Place the drone on a flat surface and move the left and right joysticks to the lower right corner for approximately 3 seconds. The indicator will flash rapidly and then turn solid, which means that the calibration process is complete. The drone cannot be calibrated if the angle of inclination is greater than 10 degrees.
  • Page 13 Turning the drone off Method one Method two Method three Push the left joystick downward Push the left and right joysticks Press the one key t for 2-3 seconds. downward in a V shape for 2 seconds. akeoff/landing button Note: The drone will switch off...
  • Page 14 Rotate right Front Rotate left Rear Front Go left Go right Rear 4.3 Flight Mode Headless mode Push the right joystick on the remote control to fly forward, and the drone will always fly in the direction indicated by the nose when it takes off, even if the direction of the nose is changed during the flight.
  • Page 15 1. Define the Front When you turn on the power for the first time and start the drone, the direction of the nose of the drone is straight ahead. 2. Enter and Exit Headless Mode ① After the pairing is completed, press the "Headless Mode" button, and the remote control will emit a "beep beep.."...
  • Page 16 4.4 Smart Flight Feature High/low speed mode Press the speed switch button to switch between high speed and low speed. 1. The default speed is low speed when the power is on. 2. The remote control emits two beeps for high speed and one beep for low speed. 360°Flip When you are familiar with the basic functions of the drone, you can try out the exciting flip stunts.
  • Page 17 One key take off/land 1. When the drone is in standby mode, press the one key take off/land button, the drone will automatically take off and hover at a height of 1.5 meters. 2. When the drone is in flight, press the one key take off/land button and the drone will automatically land on the ground.
  • Page 18 5.0 Troubleshooting Problem Cause Solution 1. Correctly pair the remote 1. The aircraft and the remote control with the drone. The Aircraft fails to take control are not paired indicator light will stay on off and the indicator 2. The aircraft enters low when the pairing is successful.
  • Page 19 6.0 Contact Us Please do not hesitate to contact us if you need further support. warranty@symatoys.com.cn +1 718-312-0558(US) +44 (0)7723708421(UK) +4933545519201(DE) For online support, please scan this code with Facebook Messenger 7.0 Product Accessories Battery Arm A Arm B (With forward motor) (With reverse motor) Propellers Remote control...
  • Page 20 8.0 Exploded View...
  • Page 21 RF frequency band: 16.97dBm(Max) Transmitter power: 2412MHz Product name: DRONE Decoration of Conformity Inserts: Hereby, GuangDong SYMA Model Aircraft Industrial Co., Ltd. declares that the radio equipment type drone is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.symatoys.com/down/declaration-of-conformity.html...
  • Page 22 2 YEAR WARRANTY: LIMITED 2-YEAR WARRANTY AND FREE LIMITED REPLACEMENT PARTS FOR 2-YEARS Symatoys.com.cn warrants to the original buyer only that its products will be free from defects in material and workmanship for 2 years from the date upon which the product is shipped, either directly from symatoys.com.cn or from an Authorized Re-seller's location, to the buyer.
  • Page 23 LIMITED REMEDY: Symatoys.com.cn's sole liability, and buyer's sole remedy for any breach of the foregoing warranty shall be at Symatoys.com.cn's option to exchange the product with a new product or a refurbished product that is functionally equivalent to the original product, or issue a credit or refund to the purchased product. Any replaced products shall be warranted as set forth herein, provided that the period within which buyer may make further claims shall be limited to the remainder of the original period.
  • Page 24 +49 335-4551-9201(DE) usa@symatoys.com(US) eu@symatoys.com(EU) https://www.symatoys.com https://www.symatoys.com.cn SYMA is a trademark of Guangdong Syma Model Aircraft Industrial Co., Ltd. registered in the United States and/or other countries. Made in China The company has the right of final interpretation of this user manual.
  • Page 25 Contents 23-43 DEUTSCH EINFÜHRUNG...
  • Page 26: Table Of Contents

    Inhalt 1.0 Wichtige Hinweise und Sicherheitsrichtlinien 2.0 Über dieses Produkt 2.1 Spezifikationen 2.2 Herausnehmen 2.3 Drohne-Diagramm 2.4 Fernbedienung 3.0 Zusammenbau des Produkts 3.1 Zusammenklappen der Drohne 3.2 Installieren der Propeller 3.3 Aufladen des Akkus der Drohne 3.4 Anleitung der Fernbedienung 4.0 Flugführung 4.1 Flugvorbereitung und Ein-/Ausschalten der Drohne 4.2 Flugkontrolle...
  • Page 27: Wichtige Hinweise Und Sicherheitsrichtlinien

    1.0 Wichtige Hinweise Vielen Dank für den Kauf dieses SYMA-Produkts. Um sicherzustellen, dass Sie die Drohne richtig und bequem bedienen, lesen Sie bitte diese Anleitung vor dem ersten Gebrauch sorgfältig durch und bewahren Sie sie zum späteren Nachschlagen an einem sicheren Ort auf.
  • Page 28 10. Entladen Sie den Akku auf 40%-50% (mit einer vollen Ladung die Hälfte der gesamten Flugzeit fliegen), wenn er 10 Tage oder länger nicht benutzt wird; dies kann die Lebensdauer des Akkus erheblich verlängern. 11. Bitte halten Sie einen sicheren Abstand zu den sich drehenden Propellern, um Verletzungen zu vermeiden.
  • Page 29: Über Dieses Produkt

    2.0 Über dieses Produkt 2.1 Spezifikationen Drohne Markenname SYMA Modell/ARTIKEL-NR. X200 Drohnengewicht Approx. 35g Drohnengröße 156x142x30 mm Bereich Approx. 35m Höhe Approx. 10m Motor ø6 Batterie(eingebaut) 3.7V 400mAh Ladezeit Approx.90 minutes Flugzeit Approx. 15 mins Fernbedienung Arbeitsfrequenz 2.4 GHz Batterie 2x1.5V"AAA"(Nicht enthalten)
  • Page 30: Herausnehmen

    2.2 Herausnehmen Container für Öffnen Sie den Kasten Nehmen Sie sie heraus Fernsteuerung 2.3 Drohne-Diagramm ① Propellerblätter ③ ① Netzschalter ② Aufladestation ③ Arme ② ④ ④ 2.4 Fernbedienung Start/Landung Netzschalter mit einer Taste Linker Steuerknüppel Rechter Joystick Trimmtaste (Halten Sie die Taste Kopfloser Modus gedrückt und drücken Sie den rechten Joystick,...
  • Page 31: Zusammenbau Des Produkts

    3.0 Zusammenbau des Produkts 3.1 Zusammenklappen der Drohne 1. Klappen Sie die Arme in Pfeilrichtung 2. Falten Sie die Arme in Pfeilrichtung, bis auseinander der Quadcopter vollständig gefaltet ist. 3.2 Installieren der Propeller Lösen der Propeller Wiedereinbau der Propeller Entfernen Sie die Schrauben und die Setzen Sie die Propeller in Pfeilrichtung Halterung in Pfeilrichtung, und nehmen auf den Arm der Drohne, bringen Sie die...
  • Page 32: Aufladen Des Akkus Der Drohne

    Attaching the phone holder 3.3 Aufladen des Akkus der Drohne Während des Ladevorgangs leuchtet die rote Anzeige. Wenn das Gerät vollständig geladen ist, erlischt die rote Anzeige. USB-Ladekabel 5V/1A-Adapter (nicht enthalten) Achtung: * Laden Sie die Drohne mit dem mitgelieferten USB-Ladekabel auf. * Der Akku braucht länger zum Laden, wenn Sie einen Adapter mit einem kleineren Nennstrom verwenden.
  • Page 33: Anleitung Der Fernbedienung

    3.4 Anleitung der Fernbedienung Batterieinstallation in der Fernbedienung: Öffnen Sie zum Einlegen der Controller-Batterien die Batterieabdeckung auf der Rückseite der Fernbedienung und legen Sie 2x AAA-Alkalibatterien ein, achten Sie dabei auf die Polaritätsmarkierungen (Batterien sind nicht im Lieferumfang enthalten und müssen separat erworben werden).
  • Page 34 Horizontale Kalibrierfunktion Stellen Sie die Drohne auf eine ebene Fläche und bewegen Sie den linken und rechten Joystick etwa 3 Sekunden lang in die untere rechte Ecke. Die Anzeige blinkt schnell und bleibt dann konstant, um anzuzeigen, dass der Kalibrierungsprozess abgeschlossen ist. Die Drohne kann nicht kalibriert werden, wenn der Neigungswinkel größer als 10 Grad ist.
  • Page 35: Flugkontrolle

    Ausschalten der Drohne Methode eins Methode zwei Methode drei 2-3 Sekunden nach unten Ziehen Sie die Joysticks in einer Drücken Sie die Auf-/ drücken. V-Form Abstiegstaste Achtung: Wenn der Drohnenkörper um mehr als 90 Grad geneigt wird, schaltet sich die Drohne von selbst ab.
  • Page 36: Flugmodus

    Nach rechts Vorderseite Nach links drehen drehen Rückseite Vorderseite nach links nach rechts neigen neigen Rückseite 4.3 Flugmodus Kopflos-Modus Drücken Sie im Kopflos-Modus den rechten Joystick der Fernbedienung, um vorwärts zu fliegen. Die Drohne fliegt beim Abheben immer in die von der Nase angezeigte Richtung, auch wenn die Richtung der Nase während des Flugs geändert wird...
  • Page 37 1. Definiere die Front Wenn Sie das Gerät zum ersten Mal einschalten und die Drohne starten, ist die ichtung der Nase der Drohne geradeaus. 2. Ein- und Ausstieg aus dem Kopflos-Modus ① Nachdem das Pairing abgeschlossen ist, drücken Sie kurz die "Headless Mode"-Taste, und die Fernbedienung gibt einen "Beep Beep..."-Ton aus, die Anzeigeleuchte an der Drohne blinkt langsam, was anzeigt, dass sie in den Headless-Modus gegangen ist;...
  • Page 38: Intelligente Flugfunktionen

    4.4 Intelligente Flugfunktionen Schnell-/langsam-Modus Drücken Sie kurz die Schnell- und Langsam-Taste, um den Schnell-/Langsam- Modus umzuschalten. 1. Die Standardeinstellung ist der langsame Modus beim Einschalten. 2. Die Fernbedienung gibt zwei Pieptöne für den schnellen Modus und einen Piepton für den langsamen Modus aus. 360°Flip Wenn die Grundbewegungen geübt sind, können Sie einige Stunts spielen.
  • Page 39: Produktmerkmale

    One-Touch-Start/Landung 1. Wenn sich die Drohne im Standby-Modus befindet, drücken Sie die Starttaste, damit die Drohne automatisch abhebt und in einer Höhe von 1,5 m schwebt. 2. Wenn sich die Drohne in der Luft befindet, drücken Sie die One-Touch-Start-/Landetaste, damit die Drohne automatisch landet. Höhe halten Wenn Sie den linken Joystick (Gas) nach dem Auf-/Abstieg loslassen, schwebt die Drohne weiterhin auf der aktuellen Höhe.
  • Page 40: Streitigkeiten Lösen

    5.0 Streitigkeiten lösen Problem Ursache Lösung 1. Koppeln Sie die Frequenz zwischen 1. Das Fluggerät und die Fluggerät und Fernsteuerung Flugzeug konnte Fernsteuerung sind nicht korrekt. Die Kontrollleuchte nicht starten, die gekoppelt leuchtet weiter, wenn die Kopplung Kontrollleuchte 2. Das Flugzeug tritt in den erfolgreich war.
  • Page 41: Uns Kontaktieren

    6.0 Uns kontaktieren Bitte zögern Sie nicht, uns zu kontaktieren, wenn Sie weitere Unterstützung benötigen. warranty@symatoys.com.cn +1 718-312-0558(US) +44 (0)7723708421(UK) +4933545519201(DE) For online support, please scan this code with Facebook Messenger 7.0 Produktangebot Batterie Arm A Arm B (Mit Vorwärtsmotor) (Mit Vorwärtsmotor) Propellerblätter Fernbedienung...
  • Page 42: Explosionsansichten

    8.0 Explosionsansichten...
  • Page 43 Dieses Gerät darf nicht zusammen mit anderen Antennen oder Sendern aufgestellt oder betrieben werden. RF-Frequenzband: 16.97dBm(Max) Sendeleistung: 2412MHz Produktbezeichnung: DROHNE Hiermit erklärt [GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO., LTD], dass diese [DROHNE] der Richtlinie 2014/53/EU entspricht. Der vollständige Test der EU-Konformitätserklärung ist unter folgender Internetadresse verfügbar: http://www.symatoys.com/down/-declaration-of-conformity.html...
  • Page 44: Gewährleistung

    2-jährige Garantie BEFRISTETE GARANTIE VON 2 Jährige UND KOSTENLOSE BEGRENZTE ERSATZTEILE FÜR 2 Jahre Symatoys.com.cn garantiert dem ursprünglichen Käufer, wenn Produkte neunzig 2 Jahr ab dem Datum des Versands an den Käufer Material- und Verarbeitungsfehlern haben, kann der Käufer einen kostenfreien Ersatz erhalten, entweder direkt von symatoys.com.cn oder von einem autorisierten Wiederverkäufer Standort.
  • Page 45 BEGRENZTE ABHILFE: Die alleinige Haftung von Symatoys.com.cn und das alleinige Rechtsmittel des Käufers bei Verstößen gegen die vorstehende Garantie liegt in der Option von Symatoys.com.cn, das Produkt gegen ein neues Produkt oder ein generalüberholtes Produkt auszutauschen, und funktional dem Originalprodukt entspricht, oder eine Gutschrift oder Rückerstattung auf den Kaufpreis des Produkts auszustellen.
  • Page 46 KOSTENLOSER AUSTAUSCH VON TEILEN FÜR 2 Jahr: Symatoys.com.cn stellt alle Ersatzteile, die für registrierte Fahrzeuge benötigt werden, 2 Jährige ab Kaufdatum kostenlos zur Verfügung, mit Ausnahme von Batterien und Motoren, Leiterplatten und Fernbedienug. Es können Versandkosten anfallen. Beschränken Sie die Anforderung eines Teiletyps pro registriertem Fahrzeug (z.
  • Page 49 United States Representative: Duvin Trade Inc 5800 Wood Sorrel Dr,Littleton,Co, 80123, United States Phone: 718-312-0558 E-mail: amz@symatoys.com Hersteller: GUANGDONG SYMA MODEL AIRCRAFT INDUSTRIAL CO.,LTD Adresse: NO.2 WEST XINGYE ROAD LAIMEI INDUSTRIAL AREA CHENG HAI , Shantou, China Postleitzahl: 515800 +1 718-312-0558 (US)
