Summary of Contents for Nyrius WS54
-

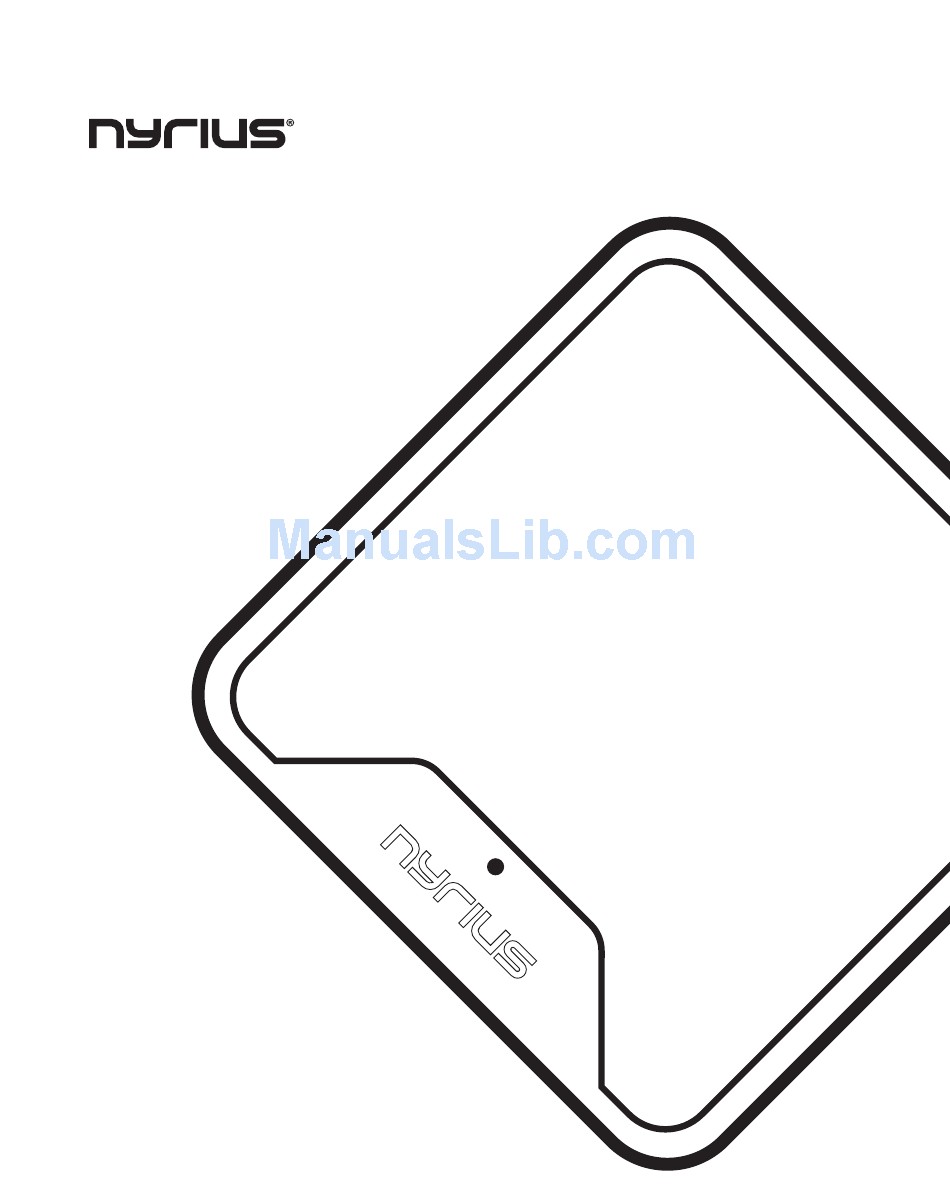

Page 1: (Ws54)
(WS54) INSTRUCTION MANUAL WIRELESS HD TRANSMITTER... -
Page 2: Table Of Contents
CONTENT (WS54) ..............................1 INSTRUCTION MANUAL ........................1 WIRELESS HD TRANSMITTER ......................1 CONTENT ..............................2 WHAT'S INCLUDED ........................... 3 OVERVIEW ............................3 INSTALLATION ..........................4 SPLASH SCREENS ..........................5 LED BEHAVIOR ..........................6 WALL MOUNTING: ..........................7 TROUBLESHOOTING: ........................8 SPECIFICATION: ..........................11 FCC STATEMENT .......................... -
Page 3: What's Included
WHAT'S INCLUDED • 2x Screws/Screw Anchors • Digital Wireless HD Transmitter • 1 Year Warranty • Digital Wireless HD Receiver • Lifetime Customer Support • 2x External IR Remote Extender • 2x 100-240V AC Power Adapters • 5ft HDMI Cable OVERVIEW HDMI IN HDMI OUT... -
Page 4: Installation
INSTALLATION RECEIVER / RÉCEPTEUR TRANSMITTER / ÉMETTEUR DEVICE / APPAREI HDMI 1 HDMI 2 HDMI IN HDMI OUT IR OUT IR EXTENDER SETUP / DEVICE / APPAREIL 30°3 0° 5-10cm HDTV DEVICE / APPAREIL... -
Page 5: Splash Screens
OPTIONAL: HDTV TO TRANSMITTER HDTV HDMI IN HDMI OUT IR OUT HDMI 1 HDMI 2 PLEASE NOTE / S'IL VOUS PLAÎT NOTE: TV connected to receiver and TV connected to transmitter will always display same content. SPLASH SCREENS CONNECTING SCREEN: Receiver is searching for Transmitter. -
Page 6: Led Behavior
LED BEHAVIOR WHEN CONNECTED: LED will remain solid white permanently DEVICE WHEN NOT CONNECTED: LED will turn on for 1 second, then off fo 3 seconds and repeat HDMI 1 HDMI 2 HDMI IN HDMI OUT IR OUT IR Extender Plug the external IR remote extender lead into the IR socket on the back of the transmitter DEVICE / APPAREIL... -
Page 7: Wall Mounting
TROUBLESHOOTING SCREEN: Will appear if Transmitter is not found after 60 seconds. DEVICE MI 2 WALL MOUNTING: PAIRING MODE SCREEN: Receiver has entered manual pairing mode. 1. Drill pilot holes. 2. insert the supplied two Anchors into the wall. DEVICE / APPAREIL 30°... -
Page 8: Troubleshooting
TROUBLESHOOTING: No Video • Check the status of the Link LEDs, and check if the HD device is working normally. • Check the HDMI lead is undamaged and is plugged into the correct socket. • Check that the correct HDMI output has been selected from the HD device’s menu and that the HDMI lead is plugged into the correct output socket. - Page 9 Thank you for your purchase of the Nyrius Aries Home/Home +. If you require any assistance please review the below Frequently Asked Questions. 1. WHAT DOES THE STATUS OF THE LEDS MEAN? SOLID WHITE LINKED Transmitter/Receiver is linked. FLASHING WHITE/BLUE SEARCHING Transmitter/Receiver not in range.
- Page 10 PAIRING MULTIPLE RECEIVERS / RE-PAIRING: The WS54 can transmit to up to four receivers simultaneously. If you wish to pair additional receivers or just repair your existing transmitter and receiver see below: 7. Ensure your WS54 Receiver is powered on and connected to your TV via HDMI input 8.
-
Page 11: Specification
SPECIFICATION: SUPPORTED VIDEO RESOLUTION 1080p, 1080i, 720p, 576p, 480p 3D COMPATIBLE AUDIO FORMATS PCM 2CH, Dolby 5.1 PORTS & INTERFACES Transmitter: HDMI input, HDMI Loop Through (Output), Micro USB (for power), 2.5mm Jack (for IR Emitter) Receiver: HDMI Output, Micro USB (for power), 3.5mm Jack (for IR Emitter) WIRELESS RANGE 100ft (clear line of sight) -
Page 12: Fcc Statement
FCC STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. This class B digital apparatus complies with Canadian ICES-003. -
Page 13: Safety Information
SAFETY INFORMATION Read all instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 14: Warranty
NYRIUS product or the loss of information. The purchaser will be responsible for any removal, re-installation, transportation and insurance costs incurred. Correction of defects, in the manner...
