USER GUIDE

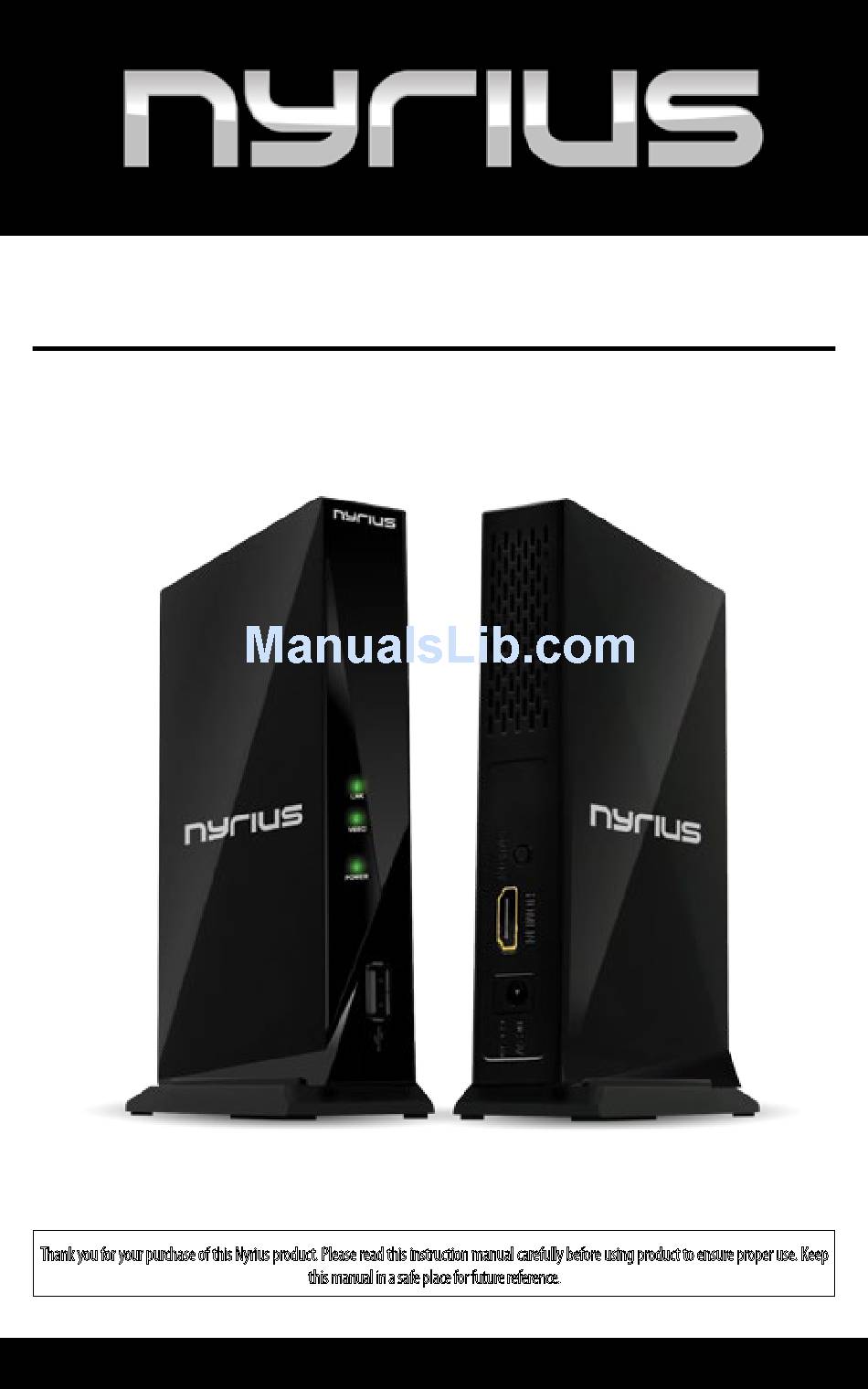

ARIES™ Home+ Wireless HD Transmiter
with 3D Compatibility and IR Remote Extender
www.NYRIUS.com
NAVS501
Thank you for your purchase of this Nyrius product. Please read this instruction manual carefully before using product to ensure proper use. Keep
this manual in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for Nyrius ARIES NAVS501
Summary of Contents for Nyrius ARIES NAVS501
- Page 1 3D Compatibility and IR Remote Extender www.NYRIUS.com NAVS501 Thank you for your purchase of this Nyrius product. Please read this instruction manual carefully before using product to ensure proper use. Keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
Buttons and Connections ..........................3 Setup ................................4 Operation ................................ 5 Troubleshooting ............................... 6 Specifications ..............................7 FCC Statement ..............................8 Safety Information ............................9 NYRIUS Warranty ............................10 WHAT’S INCLUDED • Digital Wireless HD Transmitter • External IR Remote Extender •... -
Page 3: Buttons And Connections
BUTTONS AND CONNECTIONS Transmitter - FRONT Transmitter - BACK USB SOCKET - For software upgrades and IR 3.5mm SOCKET - Connect external IR keyboard or mouse connection remote extender POWER LED - Indicates power on STANDBY BUTTON - Set unit to standby/pairing VIDEO LED - Indicates HDMI connection HDMI SOCKET - Connect your HDMI device LINK LED - Indicates wireless connection... -
Page 4: Setup
SETUP Transmitter Connection Connect your HDMI device to the transmitter using the HDMI cord. Plug the external IR remote extender lead into the IR socket on the back of the transmitter and place the IR remote extender bubble infront of the HD device. Connect the power supply to the DC socket. -
Page 5: Operation
SETUP Multicast function means that a receiver can be connected to many transmitters, (up to 8 transmitters) by using the remote control. Connecting multiple transmitters with one receiver Press the [MENU] key of the remote control to enter the MAIN MENU, press the directional keys to select [Add new Video Source] or press the [Add] key to add a video source. -
Page 6: Troubleshooting
• If any other issue occurs of if the above issues persist, try switching OFF both Unresolved Issues Transmitter and Receiver and repeating the link set-up process For further questions or inquires, please contact NYRIUS customer support at: 1.866.946.7828 or email support@NYRIUS.com - 6 -... -
Page 7: Specifications
SPECIFICATIONS Supported Video Resolutions 1080p, 1080i, 720p, 720i, 576p, 480p HDMI Interface Supports HDMI 1.4a Video Audio format and HDCP 2.0 with video encryption Transmission Distance 100ft (30m) Line of Sight ( LOS ) Operating Frequencies 4.9GHz~ 5.9GHz (with DFS function) Bandwidth 40MHz Frequency Stability... -
Page 8: Fcc Statement
FCC STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This class B digital apparatus complies with Canadian ICES-003. -
Page 9: Safety Information
SAFETY INFORMATION Do not use close to refrigerators, washing machines and metal furniture. Place on a stable surface and make sure connecting wires are routed to minimize the chance of accidents. Only use the DC power adaptors supplied, if they must be replaced make sure the replacements have the same output rating of 5V 3A DC. -
Page 10: Nyrius Warranty
NYRIUS product or the loss of information.
