Nyrius WS54 Quick Start Manual

QUICK START GUIDE
WS54
For additional product information, please consult the manual at:
BEFORE YOU BEGIN!!
WHAT IS AN IR EXTENDER CABLE?
The WS54 comes with an IR extender that allows you to control your source device with its remote from the
TV's location. The remote's IR signal is transmitted by the receiver to the transmitter and then through the IR
extender to the source device.
NEED HELP FINDING YOUR IR SENSOR?
Cut a piece of cardboard to the same size as the front panel of your source device and place a 1 inch hole in
the middle of the cardboard. Power ON your source device and play a movie or other video content. Place the
cardboard hole over the left side of the source device and using the source device's remote control directly
over the cardboard hole, press the pause button repetitively while gradually moving the cardboard hole from
left to right making sure to keep the remote control's beam directly over the cardboard hole. Once the source
device recognizes the pause button being pressed, you have located the position of the remote control IR
sensor on the source device and that is where you will place the IR Extenders sensor.
01

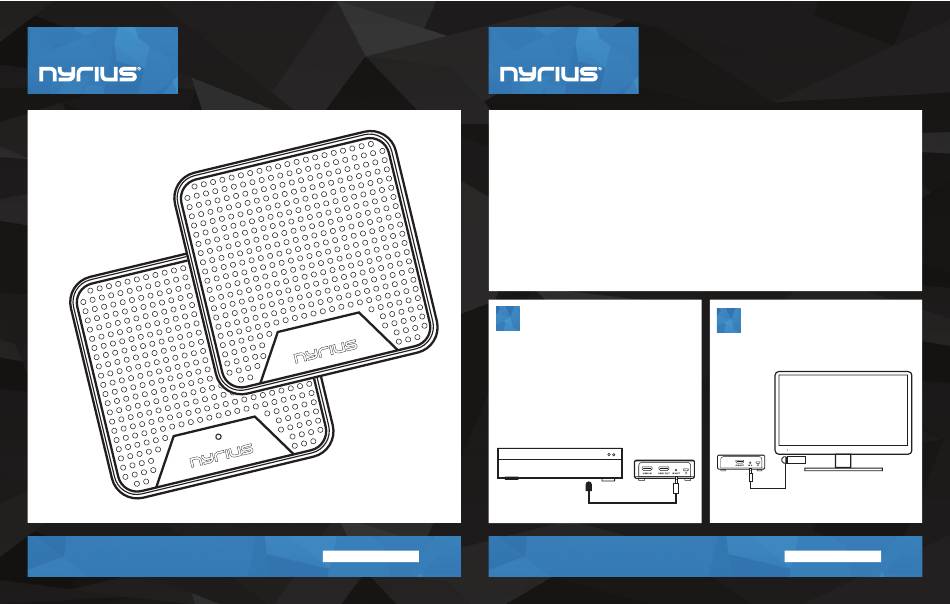

1. Plug the IR Extender cable in to the IR "Out" jack of
2. Position the IR Extender head in front but not on the
NYRIUS.COM/SUPPORT
QUICK START GUIDE
WS54
TRANSMITTER
the transmitter.
IR sensor of your HD audio/video source device(s).
DEVICE
TRANSMITTER
IR Extender
For additional product information, please consult the manual at:
RECEIVER
02
1. Ensure the front of the WS54 IR Extender Cable is
visible to receive the commands of the remote.
HDTV
RECEIVER
NOTE: Obstacles will decrease the distance of the IR extender. Transmitter and
source devices connected to the Transmitter must all be in line of sight
for IR control.
NYRIUS.COM/SUPPORT
