WHAT'S INCLUDED

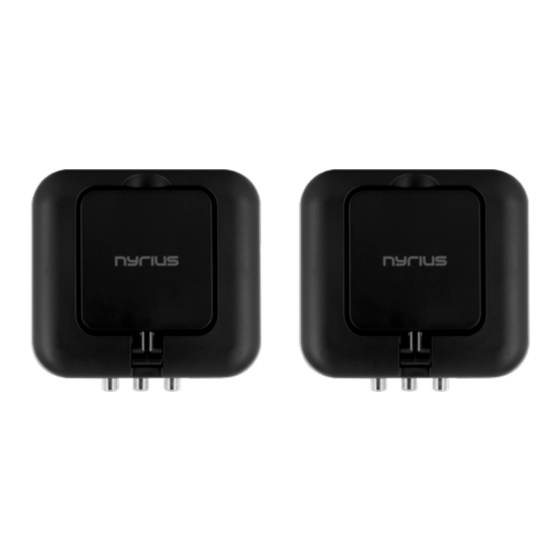

Transmitter
BUTTONS & CONNECTIONS
TRANSMITTER
IR
4 3 2 1
AUDIO IN
DC 12V
VIDEO IN
LEFT
RIGHT
FIRST TIME SETUP
Connect power to Receiver. Connect Receiver to RCA inputs on TV with RCA cable.
Some TVs may have Component Inputs that also function as RCA inputs. Check
your TV's manual for more information on connecting an RCA cable.
For additional product information, please consult the manual at :
Receiver
REMOTE CH
A B
DC 12V
RECEIVER
Power Adapters
RCA Cables
RECEIVER
4 3 2 1
AUDIO OUT
VIDEO OUT
LEFT
RIGHT
NY-GS10
IR Extender
1.
IR Remote Output
(for Infrared Extender)
2.
Power Switch
3.
Channel Selector
4.
IR Frequency Selector
(A - 38KHz, B - 56KHz)
5.
Power Input
6.
RCA Inputs
7.
RCA Outputs
NYRIUS.COM/RESOURCES
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Nyrius NY-GS10
Summary of Contents for Nyrius NY-GS10
- Page 1 NY-GS10 WHAT’S INCLUDED Power Adapters Transmitter Receiver RCA Cables IR Extender BUTTONS & CONNECTIONS TRANSMITTER RECEIVER REMOTE CH IR Remote Output 4 3 2 1 4 3 2 1 (for Infrared Extender) Power Switch Channel Selector IR Frequency Selector (A - 38KHz, B - 56KHz)
- Page 2 NY-GS10 FIRST TIME SETUP CONTD. Connect power to Transmitter. Connect Transmitter to RCA output on source device with RCA cable. Examples of a source device include Cable Boxes, Satellite Receivers, DVD Players, and VCRs. TRANSMITTER DEVICE Set the Channel Selection switch on both the Transmitter and the Receiver to the same channel.
- Page 3 TV’s user manual. How Can I Transmit To Multiple TVs? The NY-GS10 does support multiple receivers. If you wish to transmit to a second TV additional receivers are available www.nyrius.com. For additional product information, please consult the manual at :...
- Page 4 NY-GS10 WARRANTY INFORMATION We take quality very seriously. This is why all of our NYRIUS® products come with a one-year warranty from the original purchase date against defects in workmanship and materials. FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.
