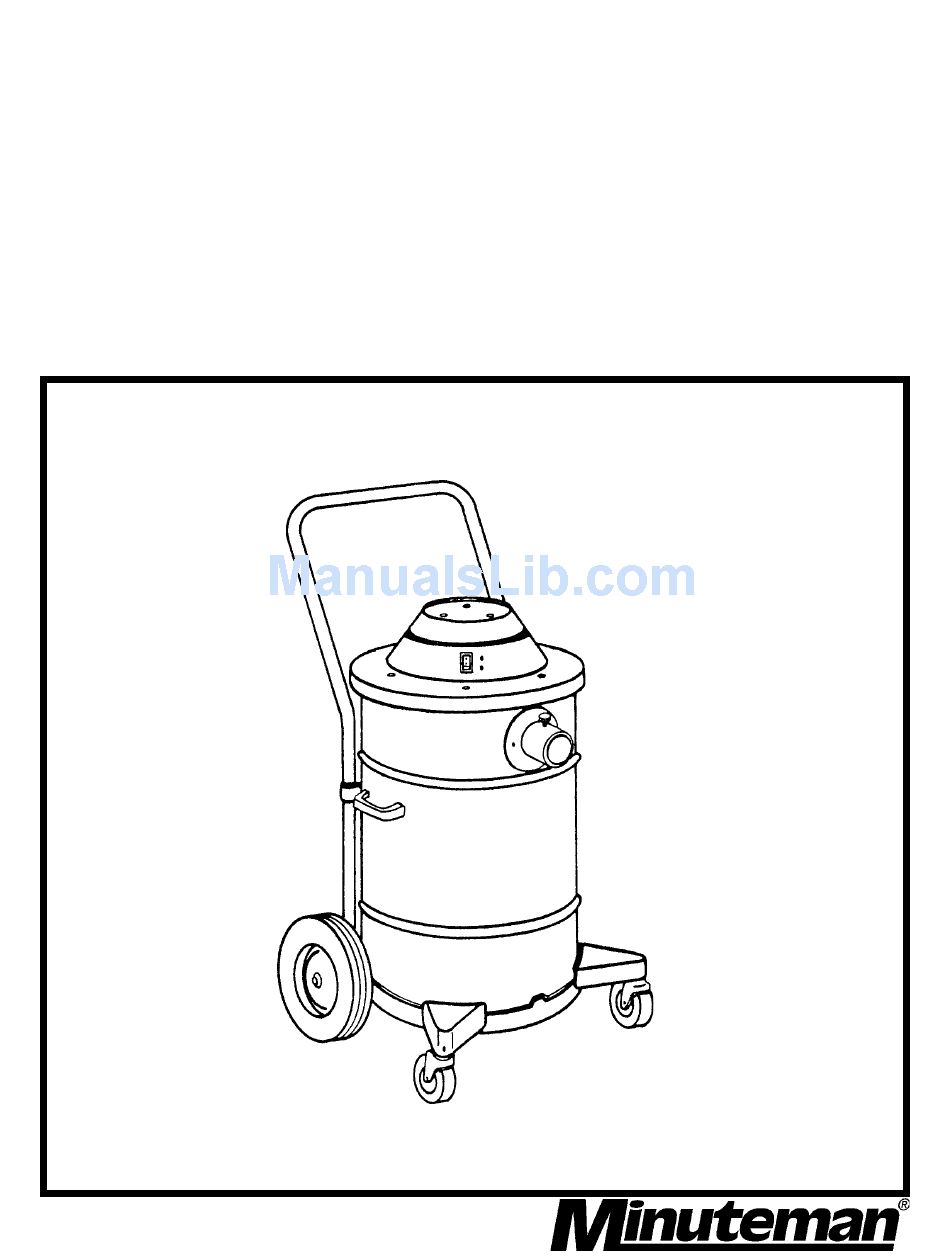

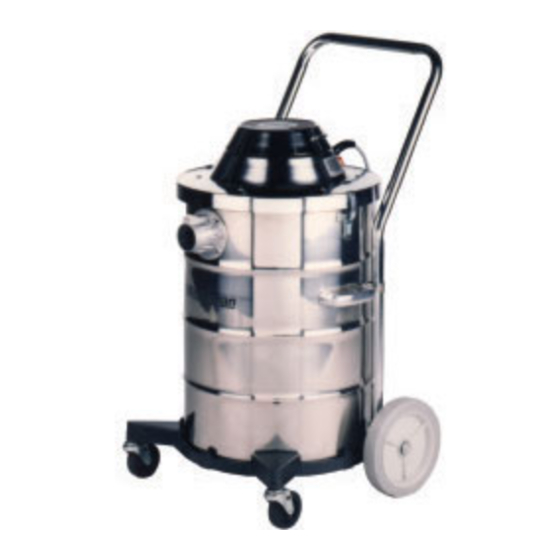

- Page 1 390 Vacuum Model No: C39085-01,02,03,04 Series C39105-01,02,03,04 C39130-01,02,03,04 15, 30 & 55 C39330-01,02,03,04,05,06 Gallon Units C39055-01,02,03,04,05,06 Stainless Steel & Painted OPERATION SERVICE PARTS CARE Revised 7/02...
-
Page 2: Important Safety Instructions
FOR COMMERCIAL USE ONLY IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING WARNING - To reduce the risk of fire, electric shock, or injury: • Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. -
Page 3: Electrical - 115 Volt
INSPECTION Carefully unpack and inspect your machine for shipping damage. Each unit is tested and thoroughly inspected before shipment, and any damage is the responsibility of the delivery carrier who should be notified immediately. ELECTRICAL - 115 Volt This machine is designed to operate on a standard 15 amp. 115 volt, 60 hz, AC circuit. Voltages below 105 volts AC or above 125 volts AC could cause serious damage to the motor. -
Page 4: User Maintenance Instructions
WARNING This vacuum may contain potentially hazardous dust depending on its appilcation. Special handling of contaminated disposal bags and filters is recommended. Disposal must be in compliance with local EPA regulations USER MAINTENANCE INSTRUCTIONS All service and repair should be performed by qualified vacuum service representative or electrician. No user serviceable components are employed in the electrical vacuum lid head assembly. -
Page 5: Optional Industrial Tools And Accessories
OPTIONAL INDUSTRIAL TOOLS AND ACCESSORIES Part No. Description 800024 3” Rd Dust Brush Complete 800022 5” Rd Dust Brush Complete 800023 Bristle Insert 5” 800175MCH Dust Brush HSG 5” 800176MCH Dust Brush HSG 3” 800025 Bristle Insert 3” 800034 24” Crev Tool Aluminum Comp 800015 Wand Asy 1-1/2, Complete 800017... - Page 7 Parts List Item Part No Description 760899 Handle Bail 760898PLT Cap, Motor 760897PLT Cover, Motor 760896 Shroud, Motor 760985PH Pan, Motor 809754 Switch, Rocker 450088 Spacer, Switch 381020 Gray Cord Ste 16-3 50’ 740600 Cord HO5 VV-F3G1.5 x 50’ 833237 Strain Relief 710355 SCR-MC 10-32 x .50 STPL...
- Page 9 Parts List Item Part No Description 130032 Cap, Retainer 280016 Caster 3” 900112 Intake, MCH (750381-2 Only) 390087 Gasket Diecut 390110 Intake Assy Aluminum 711005 SCR-SK 1/4-20 x .31 711006 SCR-SK 1/4-20 x .62 711202 BLT-HH 1/4-20 x .50 STPL 711352 Nut-Acorn 1/4-20 ST NI 711503...
- Page 10 Parts List Item Part No Description 760131 Molded Bag Ring 805054 Cloth Bag Only 805058 Cloth Bag Asy Comp...
- Page 11 Parts List Item Part No Description 806016PTD 55 Gal Adapter, Painted 806015PTD 30 Gal Adapter, Painted 390110 Intake Assy Aluminum 900035 Deflector, Intake 761054 Latch 390087 Gasket Diecut Pron Intake 806006 Gasket, Raw 710530 SCR-MC 8-32 x .50 BR 712824 SCR-THMS 10-24 x .75 STPL 711915 Rivet-Tube .19 x .28 NI PL...
- Page 12 Parts List Item Part No Description 900078PTD Tank 30 Gal PTD Less Handles 900015PTD Tank 55 Gal PTD No Handles 900047 Dump Valve 900031POL Handle, Tank Polished 711203 BLT, HH 1/4-20 x .62 711591 Washer, Rubber 711505 WSR, FLat 1/4 C90007-80 Tank 30 Gal Pkg 12 805037PKG...
- Page 13 Parts List Item Part No Description 750045 Weldment Dolly 30/55 900051 Weldment Handle 900052 Grip, Handle 900080 Spring, Torsion RH 900081 Spring LH 711642 Rollpin 761050 Caster, Rigid 5” 761049 Caster, Swivel 5” 711545 WSR-Helical Spr Loc 5/16 711319 Nut-Hex 5/16-18 ST PL 900048 Dolly Cart, Complete...
-
Page 14: Limited Warranty
Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International, Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted through and approved by factory authorized repair stations.
