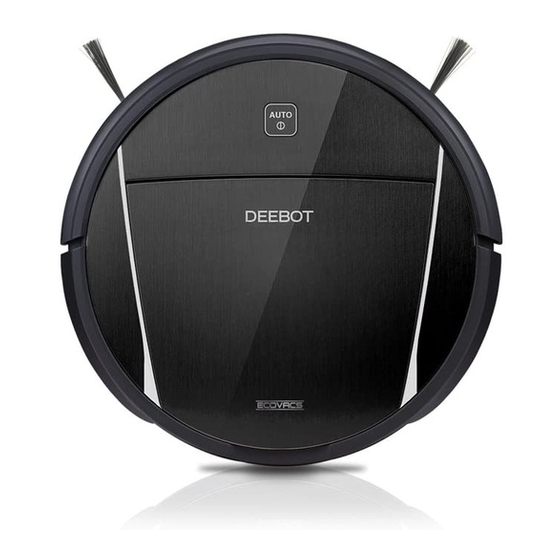

ECOVACS Deebot M8 Instruction Manual
  1. Manuals
  2. Brands
  3. ECOVACS Manuals
  4. Vacuum Cleaner
  5. Deebot M8
  6. Instruction manual

ECOVACS Deebot M8 Instruction Manual

Hide thumbs Also See for Deebot M8:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Instruction Manual
EN
Mode d'emploi
FR
Benutzerhandbuch
DE
Manual de instrucciones
ES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Deebot M8 and is the answer not in the manual?

Questions and answers

Related Manuals for ECOVACS Deebot M8

Summary of Contents for ECOVACS Deebot M8

  • Page 1: Important Safety Instructions

    Instruction Manual Mode d'emploi Benutzerhandbuch Manual de instrucciones...

  • Page 2: Table Of Contents

    Contents 1. Important Safety Instructions ..............2 2. Package Contents and Technical Specifications ........4 2.1 Package Contents ..................4 2.2 Specifications ................... 4 2.3 Product Diagram ..................5 3. Operating and Programming ............... 7 3.1 Notes Before Cleaning ................7 3.2 Quick Start ....................

  • Page 3: Package Contents And Technical Specifications

    2. Package Contents and Technical Specifications 2.1 Package Contents Instruction Manual Robot Charging Dock Remote Control Instruction Manual (with Power Adapter) (with Batteries) Smart Clean Reservoir (4) Side Brushes Battery Pack Smart Clean Cloth (with 2 screws) Direct Suction Option Main Brush Option Measuring Cup (pre-installed)

  • Page 4: Product Diagram

    2. Package Contents and Technical Specifications 2.3 Product Diagram Robot 1. Top Cover 6. Side Brushes 11. Smart Clean Reservoir Slots 2. Control Panel 7. Main Brush Option 12. Infrared Receiver for Remote Control 3. Anti-Collision Sensors 8. Driving Wheels 13.
  • Page 5 2. Package Contents and Technical Specifications Remote Control 1. LED Screen 2. Return to Charger Mode Button 3. AUTO Mode Button 4. Direction Control Buttons 5. START/PAUSE Button 6. Spot Cleaning Mode Button 7. Edge Cleaning Mode Button 8. Intensive Cleaning Mode Button 9.

  • Page 6: Operating And Programming

    3. Operating and Programming 3.1 Notes before Cleaning Before operating DEEBOT, take a few moments to survey the area to be cleaned and remove any obstacles. Remove power cords and small objects from The product is not suitable for use on long-pile carpet.

  • Page 7: Quick Start

    3. Operating and Programming 3.2 Quick Start Charging Dock Placement Connect the Power Adapter to the Charging Dock. Place the Charging Dock on a level floor surface against the wall with the base perpendicular to the ground. Keep the immediate area 1.5m (5’) in front of the charger and 0.5m (1.6’) on both sides of the charger clear of objects and reflective surfaces.
  • Page 8 3. Operating and Programming Power ON Press and hold the button on the robot for 3 seconds. DM85 is powered ON when the button illuminates. Charge DM85 Remove the Smart Clean Reservoir before charging DM85. Place DM85 on the Charging Dock making sure the Charging Contacts on DM85 and the Charging Dock Pins make a connection.

  • Page 9: Power Off

    3. Operating and Programming Start Press the AUTO Mode Button on DM85’s Control Panel or the AUTO Mode Button on the Remote Control twice. DM85 starts to work immediately in AUTO Cleaning Mode. * To choose another Cleaning Mode, please refer to section 3.3 Cleaning Mode Selection for details. Pause Pause DM85 by pressing the AUTO Mode Button on the robot’s Control Panel or the START/PAUSE...

  • Page 10: Cleaning Mode Selection

    3. Operating and Programming 3.3 Cleaning Mode Selection DM85 has several Cleaning Modes for you to choose from to effectively clean different floors. Cleaning Modes are selected using the robot’s Control Panel Buttons or using the Remote Control. * To switch Cleaning Modes using the robot’s Control Panel Buttons, Pause DM85 first, and then press the desired Cleaning Mode Button on the Control Panel.
  • Page 11 3. Operating and Programming Spot Cleaning Mode (1 Minute) This mode is applicable for an area of highly concentrated dirt or dust. In Spot Cleaning Mode, DM85 focuses on a specific area to clean. Edge Cleaning Mode This mode is good for cleaning the edges and corners of a room.

  • Page 12: Programming The Robot

    3. Operating and Programming 3.4 Programming the Robot DM85 has a Time Scheduling function. DM85 can be programmed to automatically clean once or twice per day, at specific times, even if nobody is at home. The current time of day and the cleaning times are scheduled using the Remote Control.
  • Page 13 3. Operating and Programming Schedule the Cleaning Time Press the up and down Direction Control Buttons Press button on the Remote Control until flashes and illuminates on the Remote to adjust “hour” and “minute” number. Press Control LED Screen. the left and right Direction Control Buttons switch between hour, minute and AM/PM.

  • Page 14: Optional Advanced Mopping System

    3. Operating and Programming Cancel Scheduled Cleaning Time To cancel the first cleaning time, press and hold button until disappears from the Remote Control LED Screen. The scheduled cleaning time is cancelled. To cancel the second cleaning time, press and hold button until disappears from the Remote Control LED Screen.
  • Page 15 3. Operating and Programming Attach Smart Clean Cloth Attach the Smart Clean Cloth to the Smart Clean Reservoir. Attach the Smart Clean Reservoir to the bottom of the robot. Insert the tabs on the Smart Clean Reservoir into the Smart Clean Reservoir Slots on the bottom of the robot until you hear a click.

  • Page 16: Choosing A Suction Option

    3. Operating and Programming 3.6 Choosing a Suction Option DM85 has 2 interchangeable suction options for your convenience. Main Brush Option: The best choice for deep Direct Suction Option: The best choice for cleaning with a combination of the Main Brush daily cleaning with the Main Brush removed for and strong suction.

  • Page 17: Alarm Indicator And Sounds

    3. Operating and Programming 3.7 Alarm Indicator and Sounds If the robot detects a problem, it emits an alarm sound and the AUTO Mode Button flashes RED. Please troubleshoot according to the alarm sounds. Alarm Sound Problems Solution Check Driving Wheels for tangled hair or One Beep Driving Wheel Malfunction debris and clean.

  • Page 18: Maintenance

    4. Maintenance Before performing cleaning and maintenance on DM85, power OFF the robot and unplug the Charging Dock. 4.1 Dust Bin and Filters Cleaning the Dust Bin and the Filters Open DM85’s Top Cover and remove the Dust Bin. Open the Dust Bin Cover and empty the Dust Bin. Remove the filters.

  • Page 19: Smart Clean Cloth, Smart Clean Reservoir

    4. Maintenance 4.2 Smart Clean Cloth, Smart Clean Reservoir Cleaning the Smart Clean Cloth If the mopping system was used, remove the Smart Clean Reservoir from the bottom of DM85 and remove the Cleaning Cloth. Empty any remaining water from the Water Reservoir. Wash the Smart Clean Cloth by hand or in the washing machine, and lay flat to dry.

  • Page 20: Main Brush, Direct Suction Option And Side Brushes

    4. Maintenance 4.3 Main Brush, Direct Suction Option and Side Brushes A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges. Cleaning the Main Brush Turn the robot over. Push both buttons on the Main Brush Option towards the center of the robot. Remove the Main Brush Cover.

  • Page 21: Other Components

    4. Maintenance 4.4 Other Components Use the Multi-Function Cleaning Tool to cut Wipe the Anti-Drop Sensors with the brush or off and remove any hair tangled around the the felt side of the Multi-Function Cleaning Universal Wheel. Tool to maintain their effectiveness. Wipe the Dust Sensors with the brush or the felt side of the Multi-Function Cleaning Tool to maintain their effectiveness.

  • Page 22: Troubleshooting

    5. Troubleshooting Please use this chart to troubleshoot common problems using DM85. Malfunction Possible Causes Solutions Press and hold AUTO Mode Button on DM85 is not powered ON. DM85 to power ON. Be sure that DM85 has made a DM85 has not made a connection with the Charging Dock connection with the Charging Pins.
  • Page 23 5. Troubleshooting Malfunction Possible Causes Solutions The batteries in the Remote Replace with new batteries making Control need to be replaced. sure they are installed correctly. DM85 is powered OFF or Make sure DM85 is powered ON DM85’s battery is low. and fully charged.
