Summary of Contents for ECOVACS deebot m88

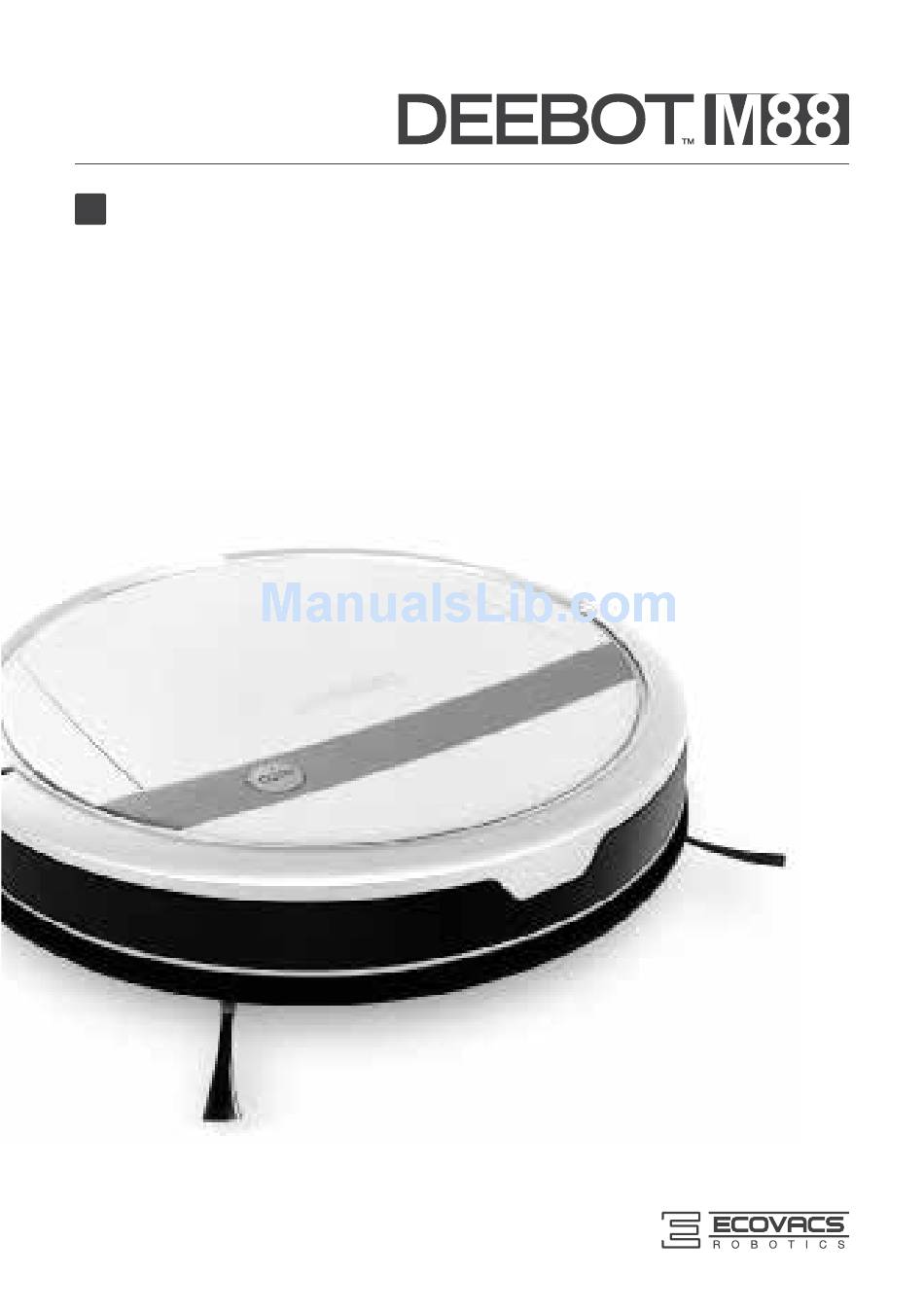

- Page 1 Instruction Manual...
- Page 2 Instruction Manual, please contact our Customer Service Center where a technician can address your specific problem or question. For more information, please visit the ECOVACS ROBOTICS official website: www.ecovacs.com The company reserves the right to make technological and/or design changes to this product for continuous improvement.
-
Page 3: Table Of Contents
Contents 1. Important Safety Instructions .......................2 2. Package Contents and Technical Specifications ..............5 2.1 Package Contents ........................5 2.2 Specifications ..........................5 2.3 Product Diagram .........................6 3. Operating and Programming ......................8 3.1 Notes Before Cleaning .......................8 3.2 Quick Start .............................9 3.3 Cleaning Pattern and Cleaning Mode Selection ............12 3.4 Programming the Robot ...................... -
Page 4: Important Safety Instructions
1. Important Safety Instructions When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. SAVE THESE INSTRUCTIONS 1. This Appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the Appliance in a safe... - Page 5 29. The Appliance must be used in accordance with the directions in this Instruction Manual. ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries caused by improper use. 30. WARNING: For the purposes of recharging the battery, only use the...
- Page 6 1. Important Safety Instructions 31. The robot contains batteries that are only replaceable by skilled persons. 32. The Remote Control uses non-rechargeable CR2032 button cell battery. To replace the battery of the Remote Control, please turn over the Remote Control and unscrew its Battery Cover with a coin. Remove the battery cover.
-
Page 7: Package Contents And Technical Specifications
2. Package Contents and Technical Specifications 2.1 Package Contents Robot Charging Dock Remote Control with Instruction Manual Button Cell Battery (4) Side Brushes Main Brush Option Direct Suction Option (2) Advanced Wet/Dry (pre-installed) Cleaning Cloths Advanced Wet/Dry Replacement High Efficiency Measuring Cup Reservoir Cleaning Reservoir... -
Page 8: Product Diagram
2. Package Contents and Technical Specifications 2.3 Product Diagram Robot 1. Top Cover 8. Driving Wheels 14. Reset Button 2. Control Panel 9. Bottom Power Switch (For Customer Service Only) 3. Anti-Collision Sensors 10. Universal Wheel 15. Dust Bin 4. Anti-Drop Sensors 11. - Page 9 2. Package Contents and Technical Specifications Remote Control 1. AUTO Mode Button 2. Direction Control Buttons 3. START/PAUSE Button 4. Return to Charger Mode Button 5. Single Room Mode Button 6. Edge Cleaning Mode Button 7. Network Setup Button 8. Infrared Emitter Dust Bin 1.
-
Page 10: Operating And Programming
3. Operating and Programming 3.1 Notes Before Cleaning Before operating DEEBOT, take a few moments to survey the area to be cleaned and remove any obstacles. Remove power cords and small objects from The product is not suitable for use on long-pile the floor that could entangle the product. -
Page 11: Quick Start
3. Operating and Programming When DEEBOT is cleaning using Programmed Cleaning Pattern, please do not stand in narrow spaces, such as hallways, or DEEBOT may fail to identify the area to be cleaned. 3.2 Quick Start * Remove the Bumper Rail protection sponge on the DEEBOT before the first use. - Page 12 3. Operating and Programming Install Side Brushes Attach Side Brushes to the bottom of DEEBOT by pressing a brush into each slot with the matching color until it clicks. Power ON Turn the robot’s Bottom Power Switch to the ON position.
-
Page 13: Power Off
3. Operating and Programming Start Press the AUTO Mode Button on DEEBOT or on the Remote Control. DEEBOT starts to work immediately in AUTO Cleaning Mode using the default Random Cleaning Pattern. * To choose another Cleaning Mode or Cleaning Pattern, please refer to section 3.3 Cleaning Pattern and Cleaning Mode Selection for details. -
Page 14: Cleaning Pattern And Cleaning Mode Selection
DEEBOT has 2 Cleaning Patterns and several Cleaning Modes to choose from to effectively clean different floors. Cleaning Patterns and Cleaning Modes are selected using the Remote Control or the ECOVACS App. For more information on the ECOVACS App, see the separate ECOVACS App leaflet. - Page 15 Remote Control for 3 seconds. Random Cleaning Pattern is set when DEEBOT emits one beep. Cleaning Patterns can also be set using the ECOVACS App. DEEBOT uses the set Cleaning Pattern when cleaning in AUTO Cleaning Mode and Single Room Cleaning Mode.
- Page 16 3. Operating and Programming Single Room Mode This mode is used when DEEBOT only needs to clean a single room with a maximum size of 30 m (323 sq ft). To start Single Room Cleaning Mode, press the Single Mode Button on the Remote Control or on the App main screen.
- Page 17 3. Operating and Programming Edge Cleaning Mode This mode is good for cleaning the edges and corners of a room. To start Edge Cleaning Mode, press the Edge Cleaning Mode Button on the Remote control or on the App main screen. In Edge Cleaning Mode, DEEBOT cleans along a border (e.g.
-
Page 18: Programming The Robot
3. Operating and Programming 3.4 Programming the Robot DEEBOT has an Intelligent Scheduling and a Time Scheduling function to schedule cleaning times. DEEBOT can be programmed to automatically clean once per day at the same time with Intelligent Scheduling using the robot’s Control Panel. DEEBOT can also be programmed weekly to clean up to two times per day at specific times with Time Scheduling using the App. -
Page 19: Choosing A Suction Option
DEEBOT can be programmed weekly to clean multiple times per day at specific times using the ECOVACS App. Open the ECOVACS App. Press “ ” in top right corner on the App's main screen. Set new scheduled cleanings and cancel existing scheduled cleanings in "Time Scheduling."... -
Page 20: Optional Advanced Wet/Dry Mopping System
3. Operating and Programming Install the Main Brush Option Turn the robot over. Push both buttons on the Direct Suction Option and remove Direct Suction Option. Insert the Main Brush into the bottom of the robot. Line up the Main Brush Cover tabs with the slots on the bottom of the robot. - Page 21 3. Operating and Programming Add Water to the Advanced Wet/Dry Reservoir * Before adding water to the Advanced Wet/Dry Reservoir remove the Advanced Wet/Dry Reservoir from the bottom of the robot. Fill the provided Measuring Cup with water. Open the Water Inlet lid on the Advanced Wet/Dry Reservoir and slowly pour water from the Measuring Cup into the Reservoir.
- Page 22 3. Operating and Programming Start Select the desired Cleaning Mode. DEEBOT sweeps. lifts, vacuums, mops and dries in the selected mode. * It is suggested to select Single Room Mode when using the optional Advanced Wet/Dry Mopping System for maximum efficiency. * To mop another room, move DEEBOT to the room to be cleaned, refill the Water Reservoir/ change the Cleaning Cloth as needed and restart.
-
Page 23: Alarm Indicator Light And Sounds
3. Operating and Programming 3.7 Alarm Indicator and Sounds I f DEEBOT detec ts a problem and needs your assistance, it emits alarm beeps and the AUTO Mode Button flashes RED. Alarm Sound Problems Solution Check Driving Wheels for tangled hair or One Beep Driving Wheel Malfunction debris and clean as described in section... -
Page 24: Maintenance
4. Maintenance Before performing cleaning and maintenance, power OFF DEEBOT and unplug the Charging Dock. 4.1 Dust Bin and Filters Cleaning the Dust Bin and Filters Open the robot’s Top Cover and remove the Dust Bin. Open the Dust Bin Lock and empty the Dust Bin. Remove the filters. -
Page 25: Advanced Wet/Dry Cleaning Cloth, Advanced Wet/Dry Reservoir
If the Advanced Wet/Dry Reservoir does not run out of water after DEEBOT cleans for 60 minutes, the water outlets on the Reservoir are clogged. Clean the Reservoir with the provided ECOVACS Reservoir Cleaning Solution according to the instructions on the bottle of the solution. -
Page 26: Main Brush, Direct Suction Option And Side Brushes
4. Maintenance 4.3 Main Brush, Direct Suction Option and Side Brushes * A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges. Cleaning the Main Brush Turn the robot over. Push both buttons on the Main Brush Option and remove the Main Brush cover. -
Page 27: Other Components
4. Maintenance 4.4 Other Components Use the Multi-Function Cleaning Tool to cut Wipe the Anti-Drop Sensors with the brush or off and remove any hair tangled around the felt side of the Multi-Function Cleaning Tool to Universal Wheel. maintain their effectiveness. Wipe the robot’s Charging Contacts and Charging Docks Pins with the brush of the Multi-Function Cleaning Tool or with a dry cloth to maintain their effectiveness. -
Page 28: Troubleshooting
5. Troubleshooting Please use this chart to troubleshoot common problems using DEEBOT. Malfunction Possible Causes Solutions DEEBOT is not powered Move the robot’s Bottom Power Switch to the ON position. Be sure that the robot’s Charging DEEBOT has not made a Contacts have made a connection connection with the Charging with the Charging Dock Pins. - Page 29 5. Troubleshooting Malfunction Possible Causes Solutions When battery power gets low, DEEBOT automatically switches to Return to Charger This is normal. No solution necessary. Mode and returns to the DEEBOT returns to the Charging Dock to recharge Charging Dock before it itself.
- Page 30 5. Troubleshooting Malfunction Possible Causes Solutions The battery in the Remote Replace with a new battery making Control need to be replaced. sure it is installed correctly. DEEBOT is powered OFF or Make sure DEEBOT is powered ON the robot’s battery is low. and fully charged.
- Page 31 DM88-EU01-IM2016R01...
