MaxFlo XL
SELF-PRIMING SWIMMING POOL PUMP

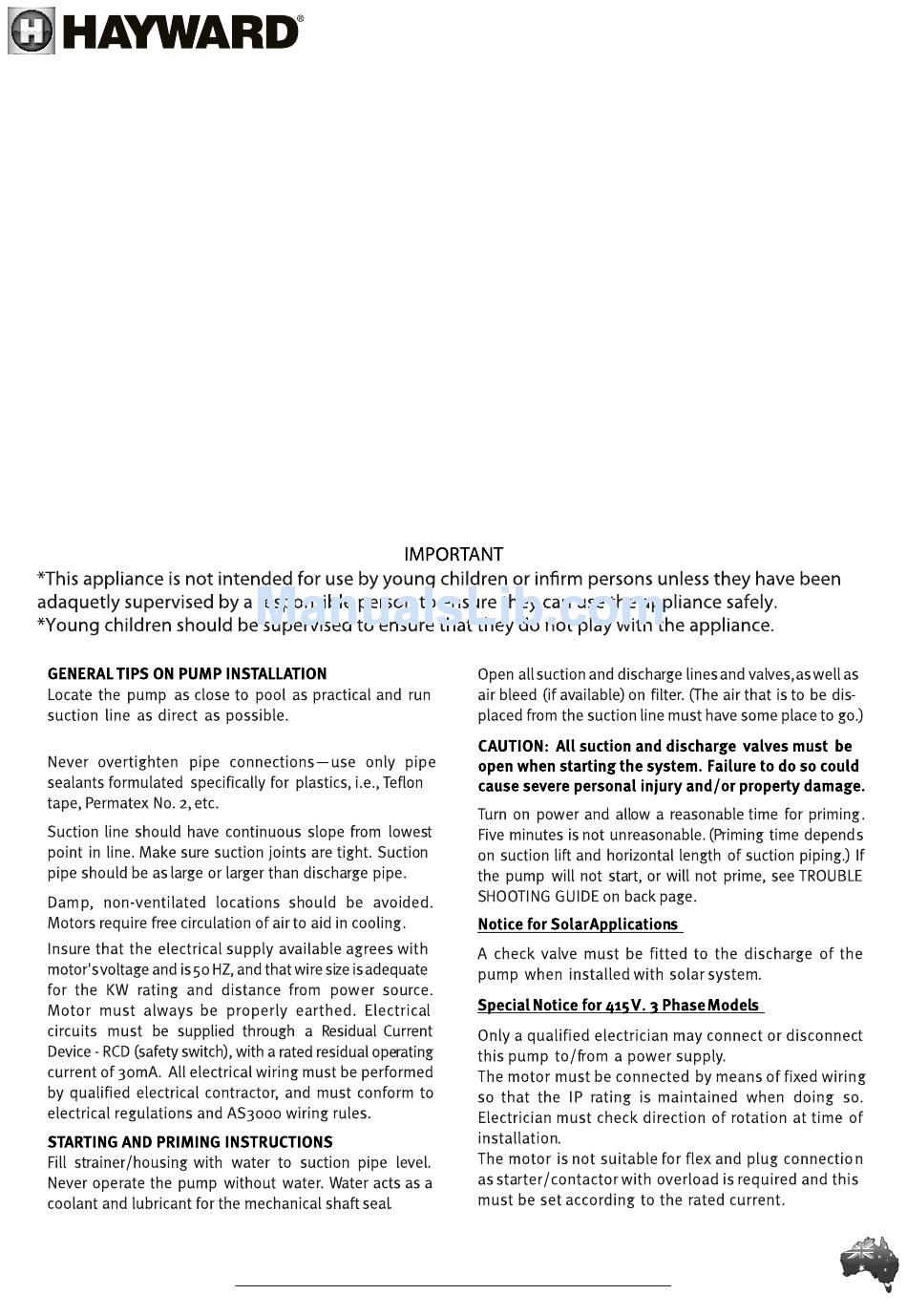

INSTALLATION AND OPERATING
Your Hayward MaxFlo XL is a high technology self-priming centrifugal pump that combines
performance, dependability and value with durable construction. Designed for pools of all
types and sizes, MaxFlo XL features 40mm and 50mm union connections to match a variety
of plumbing configurations and has a cam and ramp strainer cover that seals with less than
MaxFlo XL is an ideal choice for both new construction or as a replacement pump.
with screws or bolts to reduce vibration and pipe stress.
- SP2300 Series
™
INSTRUCTION MANUAL
a quarter turn.
Secure pump to base
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
MaxFlo XL Pump
30-LITINSB011 Rev-A
Advertisement
Related Manuals for Hayward MaxFlo XL-SP2300 Series
Summary of Contents for Hayward MaxFlo XL-SP2300 Series
- Page 1 INSTALLATION AND OPERATING INSTRUCTION MANUAL Your Hayward MaxFlo XL is a high technology self-priming centrifugal pump that combines performance, dependability and value with durable construction. Designed for pools of all types and sizes, MaxFlo XL features 40mm and 50mm union connections to match a variety of plumbing configurations and has a cam and ramp strainer cover that seals with less than a quarter turn.
- Page 2 Union Connector Kit suits 50mm PVC pipe (Inc’d 2 Nuts, Connectors, Gaskets) SPX2300GR Optional Riser Base SPX3200UG Union Gasket - Not shown SPX2315AQ6M Motor, suit SP2315AQ SPX0327 “Jack’s formular 327 Multilube” Silicone lube for O-Rings - 1 ounce (28gram) tube USE ONLY HAYWARD GENUINE REPLACEMENT PARTS MaxFlo XL Pump Page 2...
- Page 3 • Disconnect the pump motor power cord from the power outlet before beginning the shaft seal replacement. • Only qualified personnel should attempt to replace the shaft seal. Contact your local authorized Hayward Dealer or service center if you have any questions.
- Page 4 G. If the Supply Cord is damaged, it must be replaced by the manufacture, its service agent or similarly qualified persons in order to avoid a hazard. Hayward Pool Products (Australia) Pty Ltd. the strainer cover lock ring by hand only. Hayward Pool Products (Australia) Pty Ltd.
