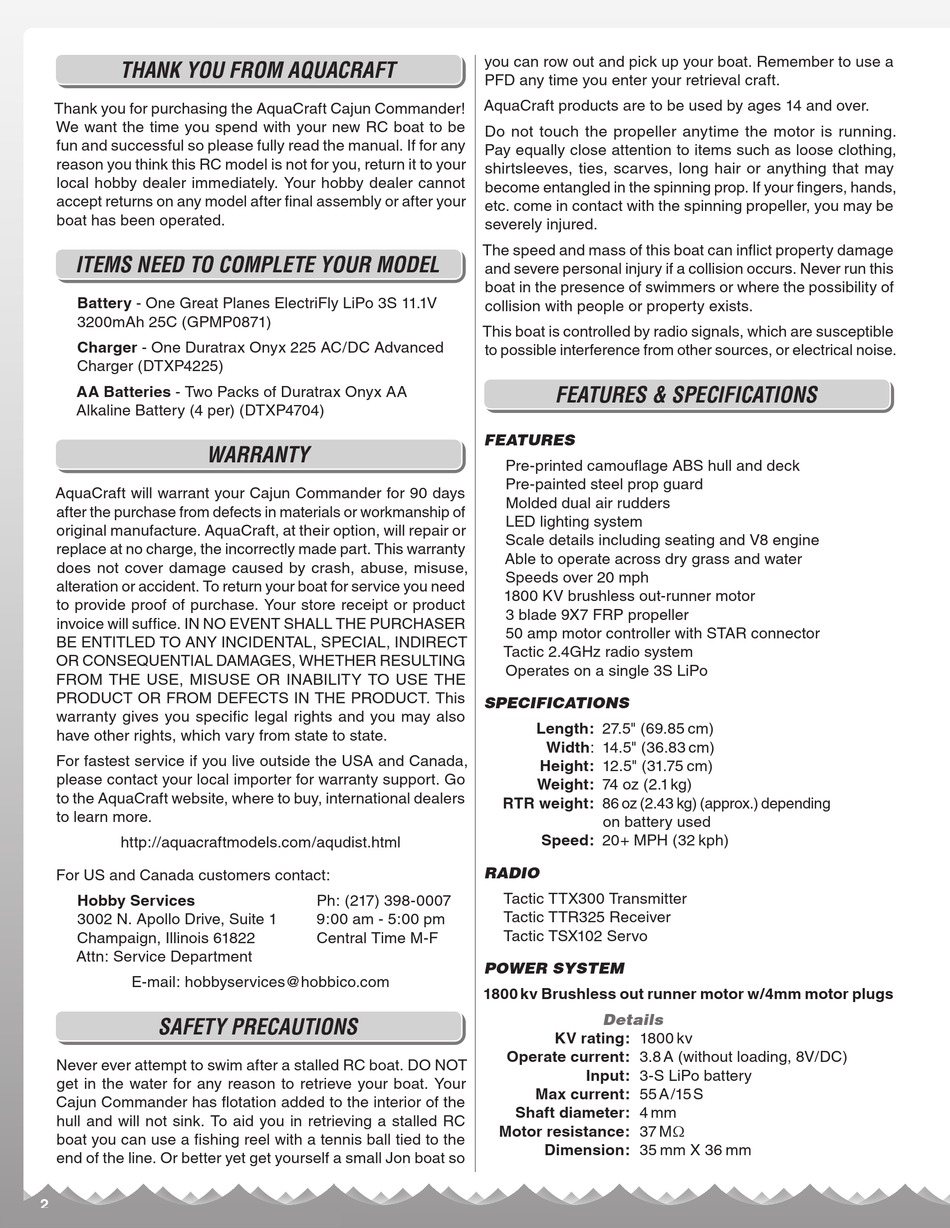

AquaCraft Cajun Commander Instruction Manual page 2

THANK YOU FROM AQUACRAFT
Thank you for purchasing the AquaCraft Cajun Commander!
We want the time you spend with your new RC boat to be
fun and successful so please fully read the manual. If for any
reason you think this RC model is not for you, return it to your
local hobby dealer immediately. Your hobby dealer cannot
accept returns on any model after fi nal assembly or after your
boat has been operated.
ITEMS NEED TO COMPLETE YOUR MODEL
Battery - One Great Planes ElectriFly LiPo 3S 11.1V
3200mAh 25C (GPMP0871)
Charger - One Duratrax Onyx 225 AC/DC Advanced
Charger (DTXP4225)
AA Batteries - Two Packs of Duratrax Onyx AA
Alkaline Battery (4 per) (DTXP4704)
WARRANTY
AquaCraft will warrant your Cajun Commander for 90 days
after the purchase from defects in materials or workmanship of
original manufacture. AquaCraft, at their option, will repair or
replace at no charge, the incorrectly made part. This warranty
does not cover damage caused by crash, abuse, misuse,
alteration or accident. To return your boat for service you need
to provide proof of purchase. Your store receipt or product
invoice will suffi ce. IN NO EVENT SHALL THE PURCHASER
BE ENTITLED TO ANY INCIDENTAL, SPECIAL, INDIRECT
OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING
FROM THE USE, MISUSE OR INABILITY TO USE THE
PRODUCT OR FROM DEFECTS IN THE PRODUCT. This
warranty gives you specifi c legal rights and you may also
have other rights, which vary from state to state.
For fastest service if you live outside the USA and Canada,
please contact your local importer for warranty support. Go
to the AquaCraft website, where to buy, international dealers
to learn more.
http://aquacraftmodels.com/aqudist.html
For US and Canada customers contact:
Hobby Services
3002 N. Apollo Drive, Suite 1
Champaign, Illinois 61822
Attn: Service Department
E-mail: hobbyservices@hobbico.com
SAFETY PRECAUTIONS
Never ever attempt to swim after a stalled RC boat. DO NOT
get in the water for any reason to retrieve your boat. Your
Cajun Commander has fl otation added to the interior of the
hull and will not sink. To aid you in retrieving a stalled RC
boat you can use a fi shing reel with a tennis ball tied to the
end of the line. Or better yet get yourself a small Jon boat so
2
you can row out and pick up your boat. Remember to use a
PFD any time you enter your retrieval craft.
AquaCraft products are to be used by ages 14 and over.
Do not touch the propeller anytime the motor is running.
Pay equally close attention to items such as loose clothing,
shirtsleeves, ties, scarves, long hair or anything that may
become entangled in the spinning prop. If your fi ngers, hands,
etc. come in contact with the spinning propeller, you may be
severely injured.
The speed and mass of this boat can infl ict property damage
and severe personal injury if a collision occurs. Never run this
boat in the presence of swimmers or where the possibility of
collision with people or property exists.
This boat is controlled by radio signals, which are susceptible
to possible interference from other sources, or electrical noise.
FEATURES
SPECIFICATIONS
RADIO
Ph: (217) 398-0007
9:00 am - 5:00 pm
Central Time M-F
POWER SYSTEM
1800 kv Brushless out runner motor w/4mm motor plugs
FEATURES & SPECIFICATIONS
Pre-printed camoufl age ABS hull and deck
Pre-painted steel prop guard
Molded dual air rudders
LED lighting system
Scale details including seating and V8 engine
Able to operate across dry grass and water
Speeds over 20 mph
1800 KV brushless out-runner motor
3 blade 9X7 FRP propeller
50 amp motor controller with STAR connector
Tactic 2.4GHz radio system
Operates on a single 3S LiPo
Length: 27.5" (69.85 cm)
Width: 14.5" (36.83 cm)
Height: 12.5" (31.75 cm)
Weight: 74 oz (2.1 kg)
RTR weight: 86 oz (2.43 kg) (approx.) depending
on battery used
Speed: 20+ MPH (32 kph)
Tactic TTX300 Transmitter
Tactic TTR325 Receiver
Tactic TSX102 Servo
Details
KV rating: 1800 kv
Operate current: 3.8 A (without loading, 8V/DC)
Input: 3-S LiPo battery
Max current: 55 A /15 S
Shaft diameter: 4 mm
Motor resistance: 37 M
Dimension: 35 mm X 36 mm
