Related Manuals for AquaCraft Revolt 30

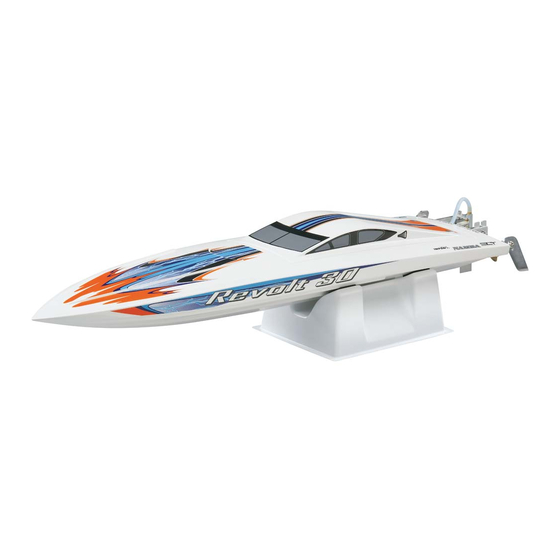

Summary of Contents for AquaCraft Revolt 30

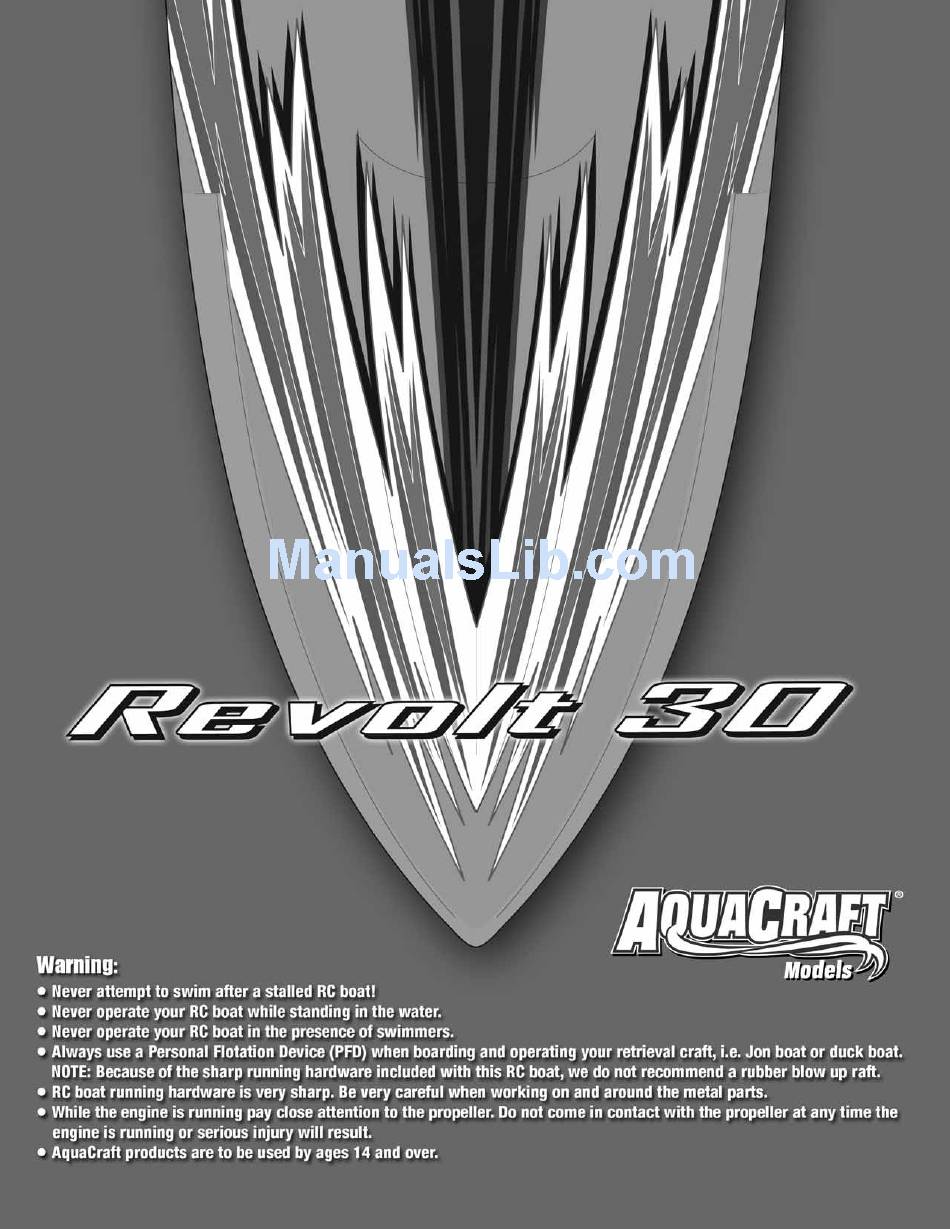

- Page 1 ™ aquacraftmodels.com...
- Page 2 Option 1: This is the easiest option. AquaCraft products are to be used by ages 14 and over. Two (2) AQUB9825 GrimRacer LiPo 2S 7.4V 4200mAh 30C All pictures, descriptions, and specifi cations found in this instruction manual are subject to change without notice.
- Page 3 Notes about using LiPo batteries in your boat: The Revolt uses REVOLT FEATURES: the AquaCraft 60amp motor controller. This controller has a built Hand laid fi berglass hull and canopy in stutter bump system that cycles the power to the motor when Roomy interior the battery voltage reaches 12V.
- Page 4 Futaba 4PL (FUTK1400): Along with great reliability, this radio system offers the most user options. It’s also a great system if you want to add to your AquaCraft boat collection. This system offers 40 model memory and 10 character naming; great features to grow your boat lineup.
- Page 5 At this time you will hear one beep. To arm the system, squeeze START UP AND OPERATION: the throttle trigger and hold until you hear one more beep. IMPORTANT: Release the throttle trigger and you will hear three more beeps. Your Revolt is a true racing boat.
- Page 6 TROUBLESHOOTING: HOW TO UPDATE YOUR BOAT TO USE A SINGLE 4S BATTERY PACK: No signal between the transmitter and the boat (Performance 2.4GHz version): This is a little more advanced so if you are not comfortable Check to make sure the transmitter is bound to the receiver. To making the changes below, DO NOT ATTEMPT this until you bind: With the transmitter turned on and the batteries plugged have more experience.
