R-9570

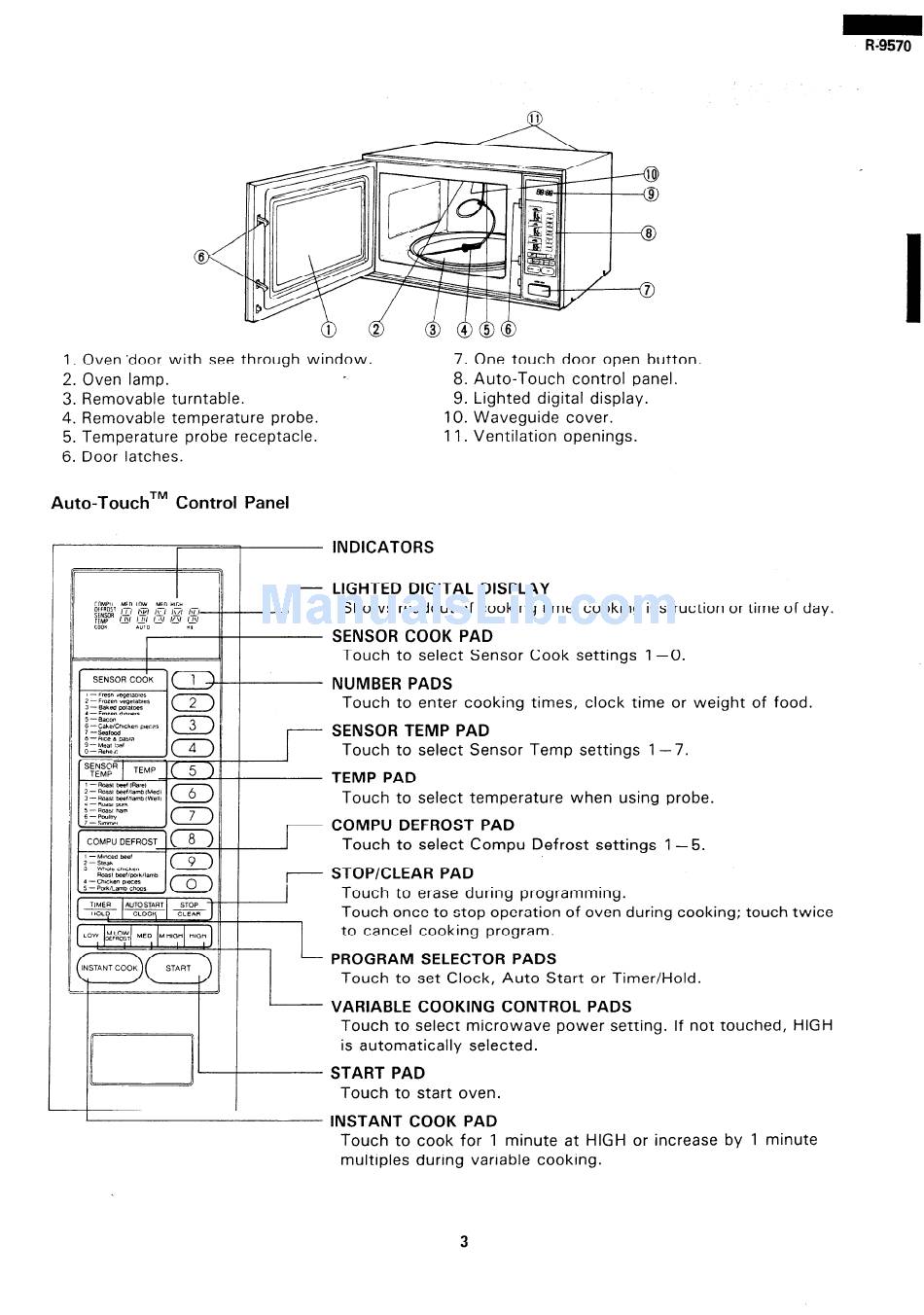

1. Oven 'door with see through window.
2. Oven lamp.
3. Removable turntable.
4. Removable temperature probe.
5. Temperature probe receptacle.
6. Door latches.
7. One touch door open button.
8. Auto-Touch control panel.
9. Lighted digital display.
10. Waveguide cover.
1 1. Ventilation openings.
Auto-TouchTM Control Panel
I- INDICATORS
COMPU MC0 IOW MO HIGH
~~~~~ 13 @I /r/ @ IT/
l&p Qy IL/ /A-:!, //\/ /JJf
collx
AU10
111
LIGHTED DIGITAL DISPLAY
Shows readout of cooking time, cooking instruction or time of day.
SENSOR COOK PAD
Touch to select Sensor Cook settings 1-O.
SENSOR COOK
I - Fresh wgeL=Lws
2 -Frozen "EqelaDles
3 -Baked pcmlces
rl - Frozen dmnen
5 -Bacon
NUMBER PADS
Touch to enter cooking times, clock time or weight of food.
a-he 8 pasti)
9-Meat I.xel
SENSOR TEMP PAD
Touch to select Sensor Temp settings l-7.
TEMP PAD
Touch to select temperature when using probe.
COMPU DEFROST PAD
Touch to select Compu Defrost settings 1 -5.
during cooking; touch twice
Touch to set Clock, Auto Start or Timer/Hold.
VARIABLE COOKING CONTROL PADS
Touch to select microwave power setting. If not touched, HIGH
is automatically selected.
START PAD
Touch to start oven.
INSTANT COOK PAD
Touch to cook for 1 minute at HIGH or increase by 1 minute
multiples during variable cooking.
3
