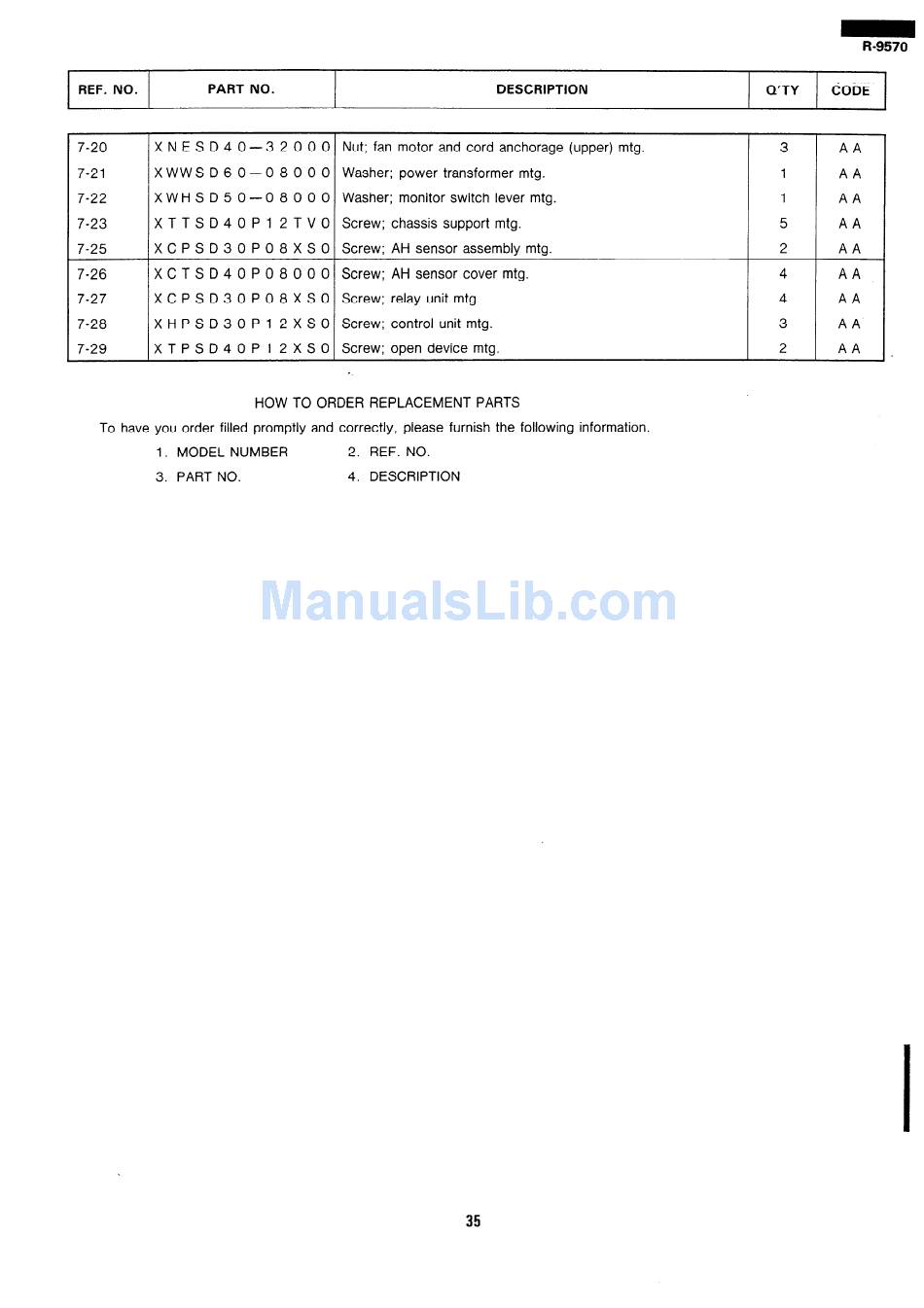

Sharp R-9570 Service Manual page 37

R-9570
REF. NO. PART NO. DESCRIPTION
Q'TY LODE
7-20 XNESD40-32000
7-21 XWWSD60-08000
7-22 XWHSD50-08000
7-23 XTTSD40P12TVO
7-25 XCPSD30P08XSO
7-26 XCTSD40P08000
7-27 XCPSD30P08XSO
7-28 XHPSD30P12XSO
7-29 XTPSD40P12XSO
Nut; fan motor and cord anchorage (upper) mtg.
Washer; power transformer mtg.
Washer; monitor switch lever mtg.
Screw; chassis support mtg.
Screw; AH sensor assembly mtg.
Screw; AH sensor cover mtg.
Screw; relay unit mtg.
Screw; control unit mtg.
Screw; open device mtg.
3
AA
1
AA
1
AA
5 AA
2
AA
4
AA
4 AA
3 AA
2
AA .
HOW TO ORDER REPLACEMENT PARTS
To have you order filled promptly and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO.
3. PART NO.
4. DESCRIPTION
35
