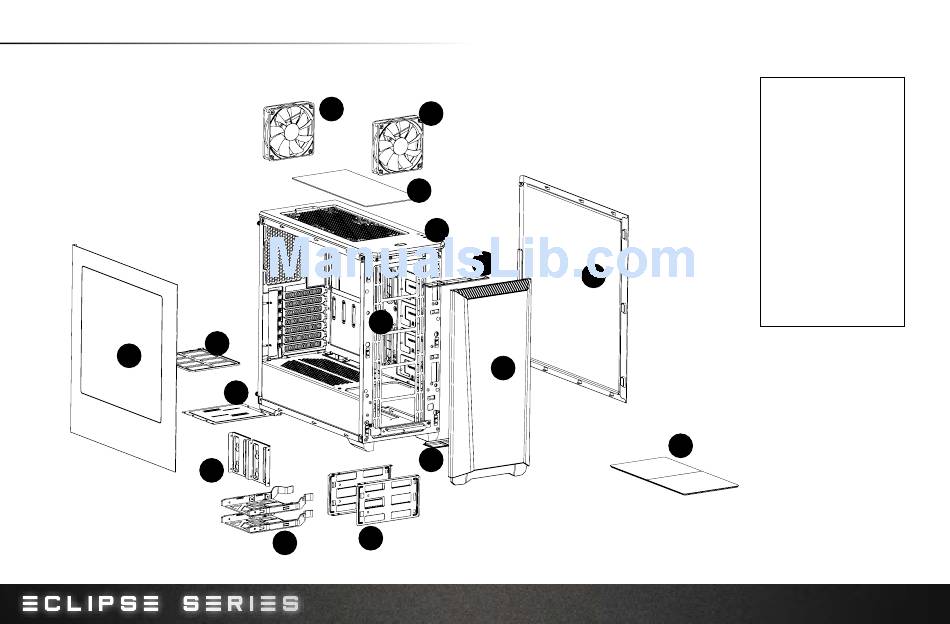

2. EXPLODED VIEW
12
10
3
4
1
11
8
7
4
14
2
9
5
6
9
1. Chassis
2. Top Panel
3. SSD Brackets
4. Fans
5. Right Side Panel
6. Front Panel
7. HDD Tray
8. Hard Drive Cage
9. Front Dust Filter
10. Window Left Side Panel
11. Mid-plate Bracket
12. Rear Dust Filters
13. Top Covers (P400S
models only)
14. Top Dust Filter
