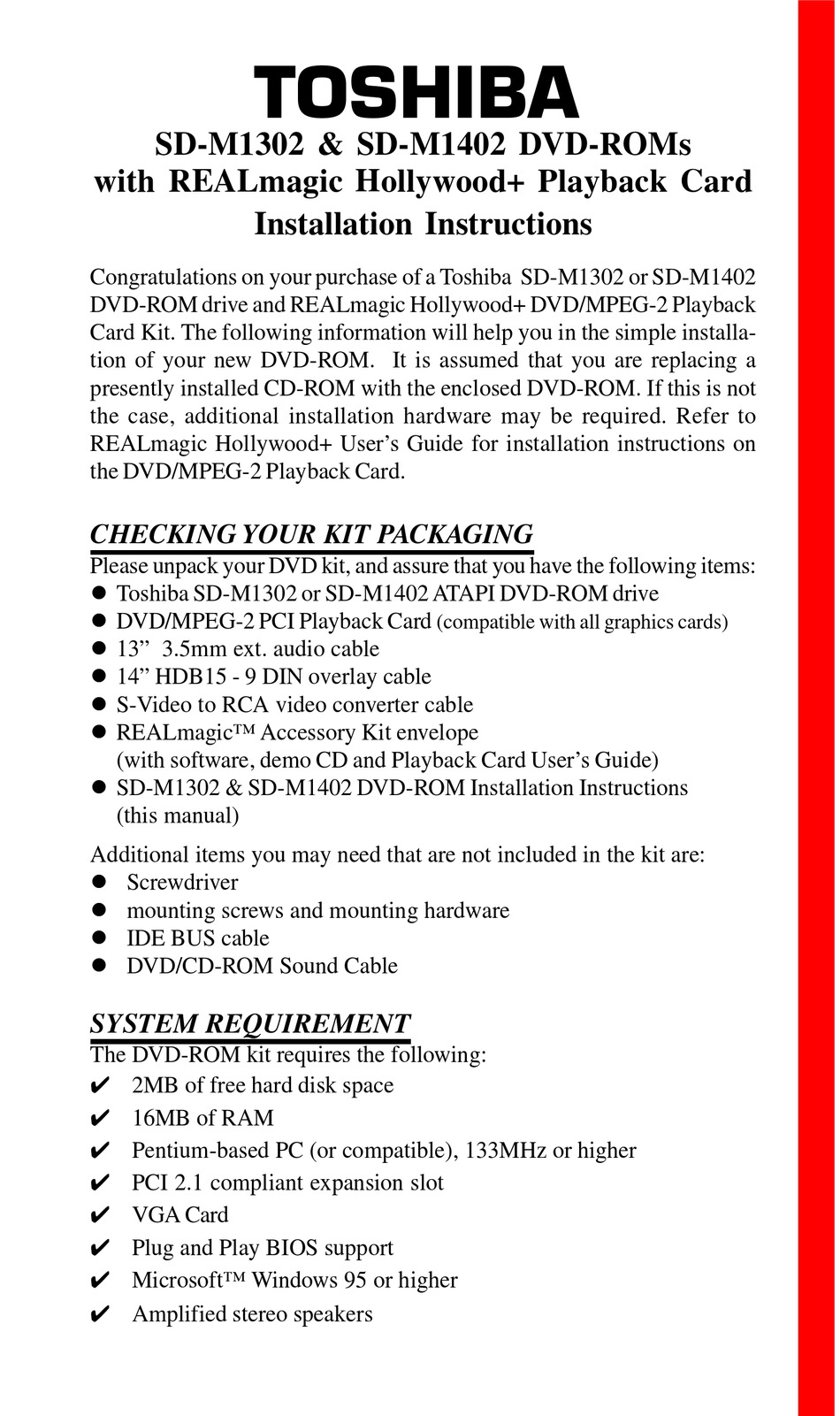

SD-M1302 & SD-M1402 DVD-ROMs
with REALmagic Hollywood+ Playback Card
Congratulations on your purchase of a Toshiba SD-M1302 or SD-M1402
DVD-ROM drive and REALmagic Hollywood+ DVD/MPEG-2 Playback
Card Kit. The following information will help you in the simple installa-
tion of your new DVD-ROM. It is assumed that you are replacing a
presently installed CD-ROM with the enclosed DVD-ROM. If this is not
the case, additional installation hardware may be required. Refer to
REALmagic Hollywood+ User's Guide for installation instructions on
the DVD/MPEG-2 Playback Card.
CHECKING YOUR KIT PACKAGING
Please unpack your DVD kit, and assure that you have the following items:
l Toshiba SD-M1302 or SD-M1402 ATAPI DVD-ROM drive
l DVD/MPEG-2 PCI Playback Card
l 13" 3.5mm ext. audio cable
l 14" HDB15 - 9 DIN overlay cable
l S-Video to RCA video converter cable
l REALmagic™ Accessory Kit envelope
(with software, demo CD and Playback Card User's Guide)
l SD-M1302 & SD-M1402 DVD-ROM Installation Instructions
(this manual)
Additional items you may need that are not included in the kit are:
l Screwdriver
l mounting screws and mounting hardware
l IDE BUS cable
l DVD/CD-ROM Sound Cable
SYSTEM REQUIREMENT
The DVD-ROM kit requires the following:
2MB of free hard disk space
16MB of RAM
Pentium-based PC (or compatible), 133MHz or higher
PCI 2.1 compliant expansion slot
VGA Card
Plug and Play BIOS support
Microsoft™ Windows 95 or higher
Amplified stereo speakers
TOSHIBA
Installation Instructions
(compatible with all graphics cards)

Advertisement

loading

  Related Manuals for Toshiba SD-M1302

  Summary of Contents for Toshiba SD-M1302

  • Page 1 SD-M1302 & SD-M1402 DVD-ROMs with REALmagic Hollywood+ Playback Card Installation Instructions Congratulations on your purchase of a Toshiba SD-M1302 or SD-M1402 DVD-ROM drive and REALmagic Hollywood+ DVD/MPEG-2 Playback Card Kit. The following information will help you in the simple installa- tion of your new DVD-ROM.
  • Page 2: Setting Jumpers

    The following steps must be performed to properly install your DVD- ROM. l Set DVD-ROM Drive Jumper Settings l Connect Audio Cable l Attach IDE BUS cable l Mount DVD-ROM SETTING JUMPERS The mode select jumpers are 6 straight angle pins located on the rear of the DVD-ROM.
  • Page 3: Placing Dvd-Rom Inside Your Computer

    If DVD-ROM is replac- ing a CD-ROM, remove CD-ROM presently installed in your system. Your Toshiba DVD-ROM can be placed in any free half-height drive slot at the front of your computer. (It can be mounted horizontally or verti- cally.)
  • Page 4 Power Cable - Connect an internal computer power supply cable to the power socket at the back of the DVD-ROM. One side of the plug has chamfered edges, so the power connector fits only one way. Push plug completely into the socket making sure the plug fits correctly. Audio Cable (optional) - If you have a sound card and speakers, and would like to play audio CDs on your computer, you will need to get a sound cable.
  • Page 5: Completing Installation

    DVD-ROM, refer to REALmagic™ User’s Guide to install DVD/MPEG-2 Playback Card. DVD-ROM FRONT PANEL The photo illustrates the following features of the SD-M1302 and SD- M1402 DVD-ROMs front panel: DVD loading tray Emergency eject hole (insert solid bar Eject button into hole, i.e.
  • Page 6: Technical Support

    TECHNICAL SUPPORT Technical support can be obtained by calling 949/455-0407 or e-mail- ing: toshibadpd@cerplex.com. Additional technical information can be found on our website at: http://www.toshiba.com/taecdpd/ Specifications SD-M1302 SD-M1402 DATA CAPACITY Mode Mode Mode Mode (bytes/block) 2,048 2,048 2,048 2,336 2,048...
