LED Descriptions

Status LEDs

The LinkBuilder FMS 100-TX Hub is equipped with front panel LEDs to
provide port status and hub information (see Figure 3-10).
ACTIVITY
12x
LINK
PARTITION
1 2 3 4 5 6 7 8 9 10 11 12 13

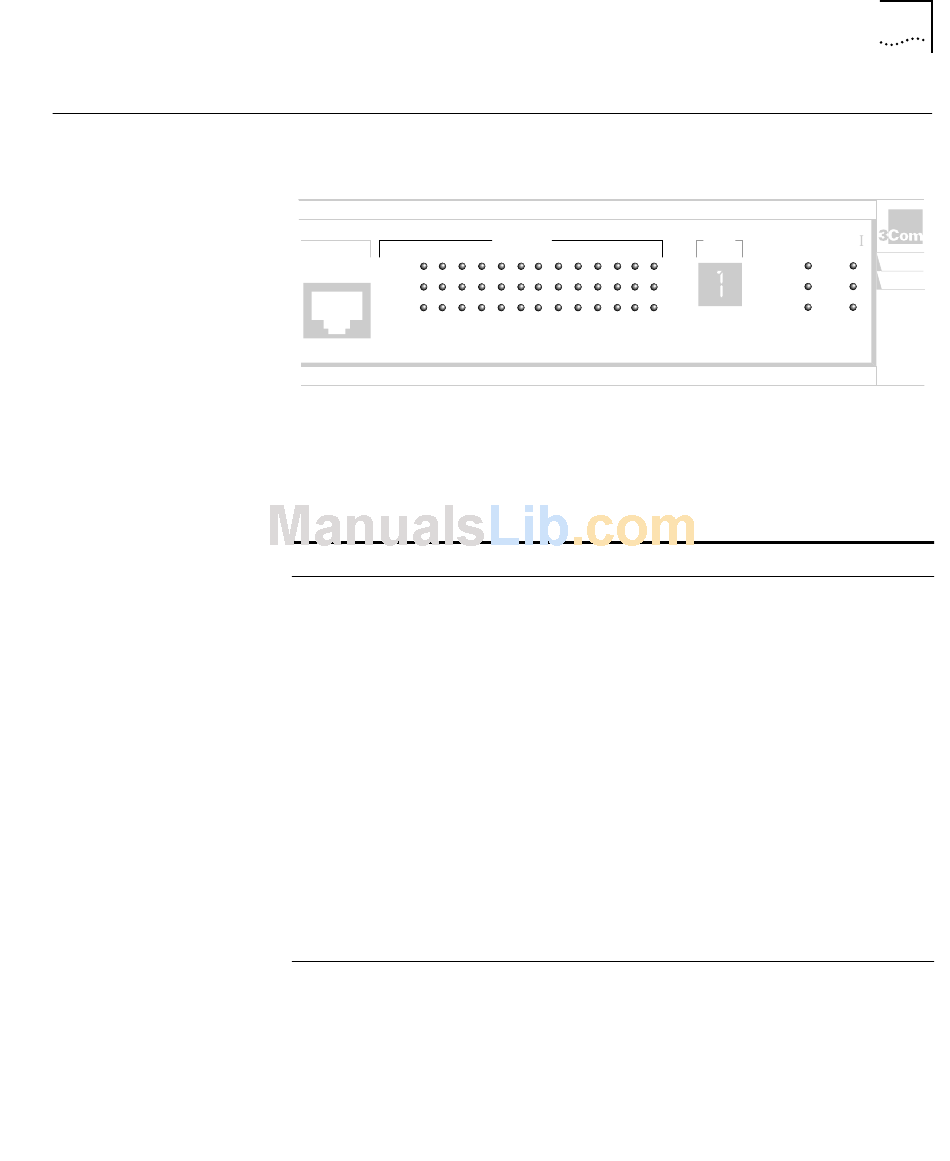

Figure 3-10 LED Indicators
Table 3-2 interprets the meaning of the port STATUS LEDs.
Table 3-2 Port LEDs
LED Color
ACTIVITY Green
LINK Green
PARTITION Amber
STATUS
Status Meaning
ON The port is receiving data.
OFF The port is not receiving data.
ON A connection exists between the port and
the end node.
OFF There is no connection between the port and
the end node.
ON The port is partitioned because of excessive
collisions (more than 127 consecutive
collisions) or because long packets (longer
than 5 milliseconds) are being sent over the
network.
If a port is partitioned, it is automatically
reconnected to the network when the
problem no longer exists.
OFF The port is not partitioned.
LED Descriptions
UNIT 3C250-TX/
FAN FAIL CLSII
OVERTEMP CLSI
COLLISION PWR
3-11
®
