Pro-Form 19.0 RE PFEL09812.0 User Manual page 11

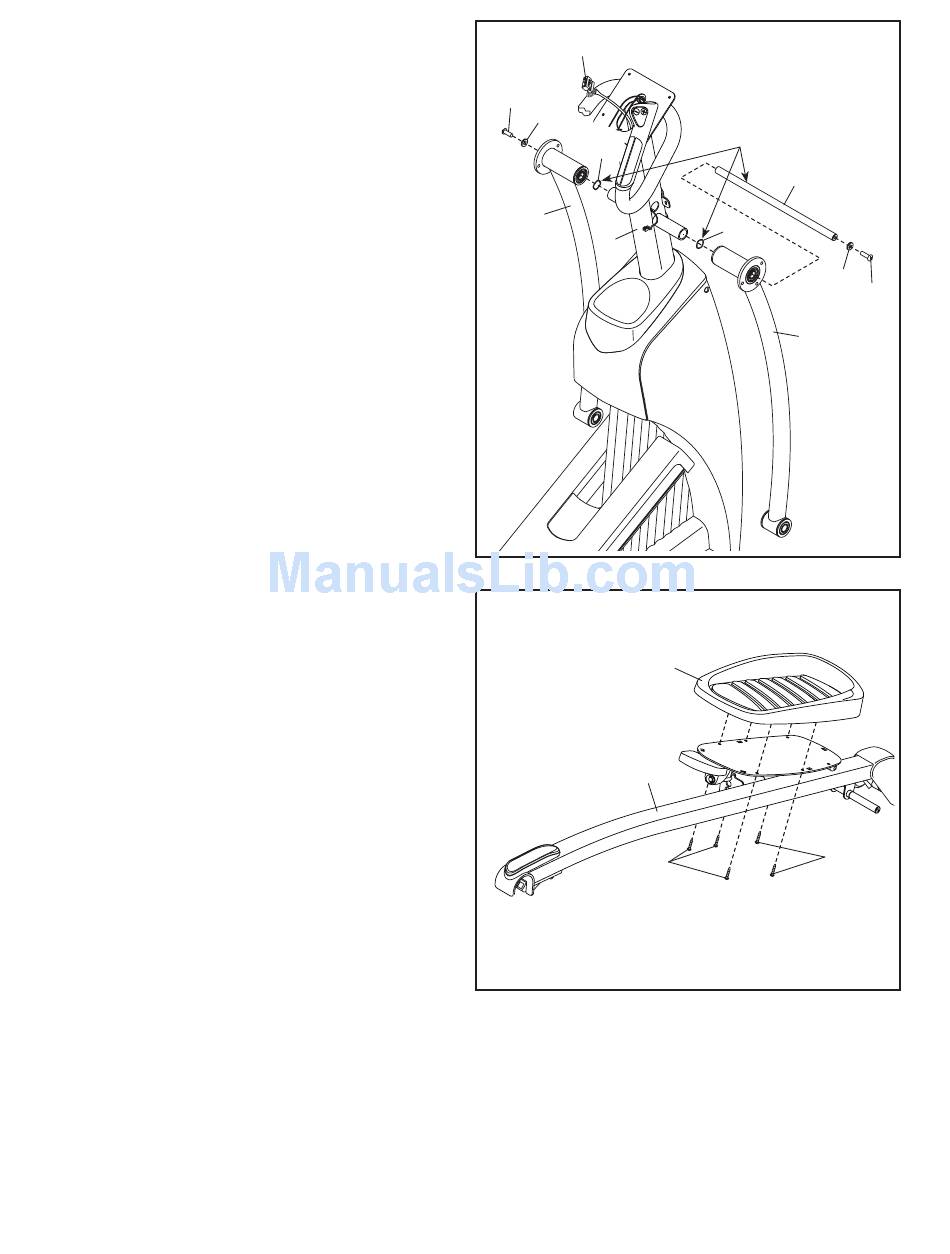

5. Using a plastic bag to keep your fingers clean,
apply a generous amount of the included
grease to the Upright Axle (48) and to two Wave
Washers (118).
Tip: Avoid damaging the Main Wire Harness
(60). Insert the Upright Axle (48) through the
Upright (5) and center it. Slide a Wave Washer
(118) onto each side of the Upright Axle.
Next, identify the Right and Left Upper Body
Legs (6, 7) and orient them as shown.
Slide the Right and Left Upper Body Legs
(6, 7) onto the right and left sides of the Upright
Axle (48).
Tighten an M8 x 16mm Screw (102) and an
M8 Washer (95) into each end of the Upright
Axle (48) at the same time.
6. Identify the Right Pedal (14) and the Right Pedal
Arm (12) and orient them as shown.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with five M6 x 12mm Screws (111).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.
5
60
102
95
118
7
5
6
12
111
11
Avoid damaging
the Main Wire
Harness (60)
Grease
48
118
95
6
14
111
102
