4.28 Combustion Chamber Insulation
Remove the fan, refer to Section 4.1.
Remove the flue collector, secured with two wing nuts and hook
bolts, see diagram 4.1.
Remove the combustion chamber front panel, secured with four
screws, see diagram 4.2.
Remove the front insulation piece secured with a clip, see
diagram 4.25.
Slide out both side insulation pieces
Pull the lower rear insulation forwards, then slide the upper rear
insulation down from behind the heat exchanger.
Supplied By www.heating spares.co Tel. 0161 620 6677
4 Replacement of Parts
COMBUSTION CHAMBER
FRONT PANEL
SENSING
ELECTRODE
43
FRONT
INSULATION
CLIP
SIDE INSULATION PIECES
LOWER REAR INSULATION
UPPER
REAR
INSULATION

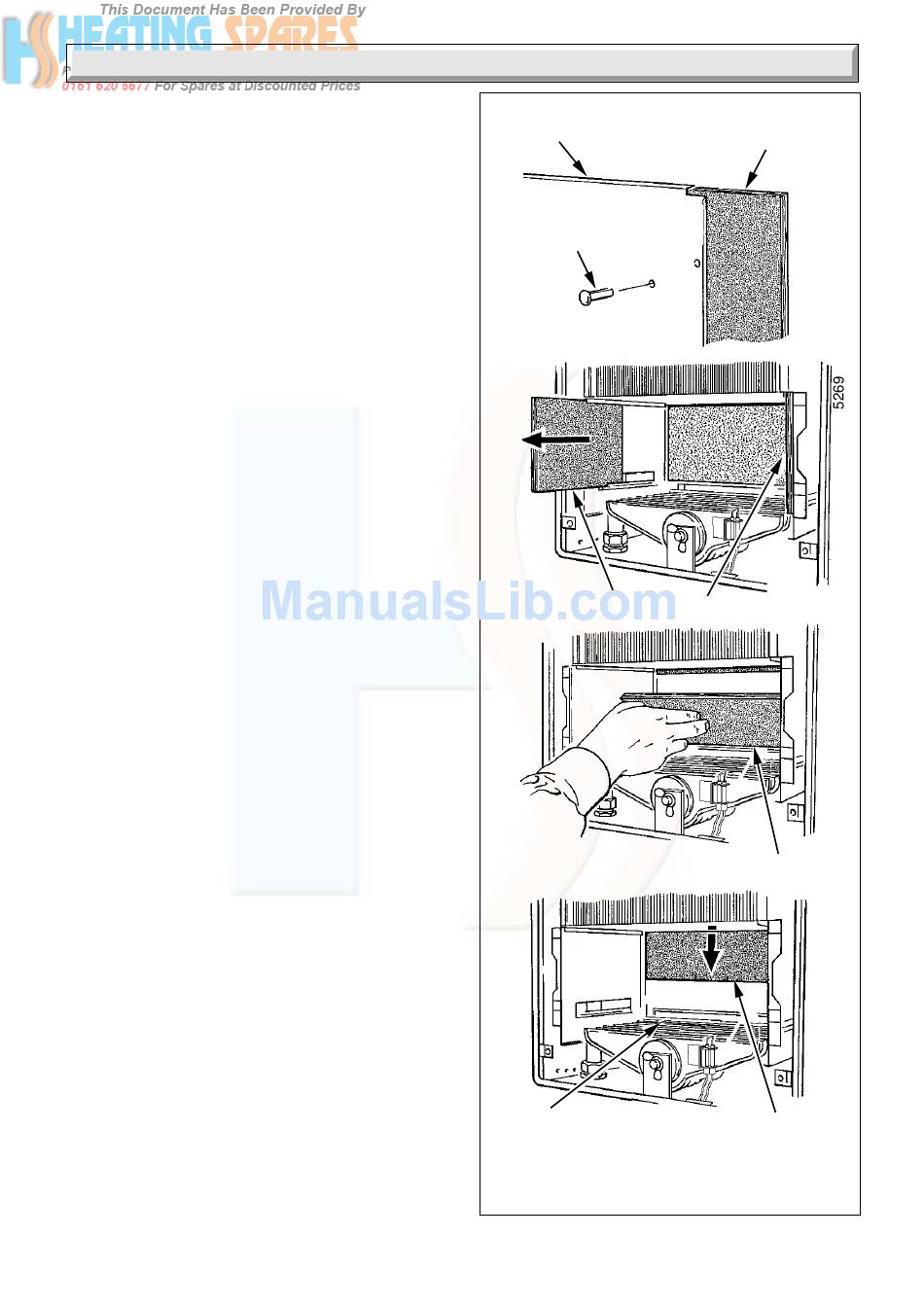

Diagram 4.25
