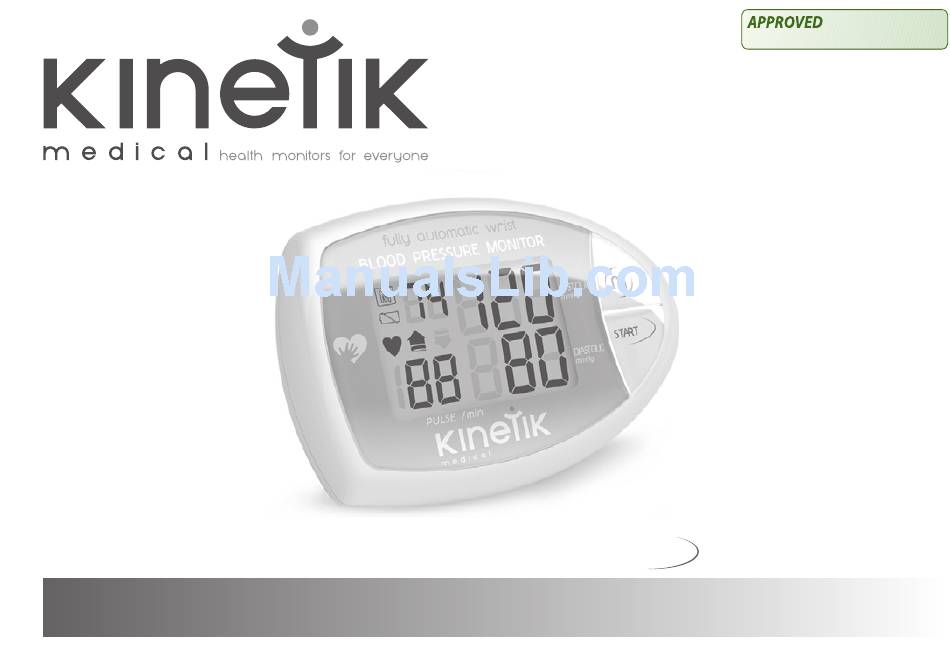

- Page 1 By Paul Aylett at 12:40 pm, Aug 10, 2011 Wrist Type Blood Pressure Monitor User Manual BPM2 Series...
-
Page 2: Table Of Contents
CONTENT Introduction Parts Setting up your Blood Pressure Monitor Using your Blood Pressure Monitor 6-10 Additional Information on Blood Pressure Specification Interpretation of Blood Pressure (BP) Results Troubleshooting 14-15 Maintenance Blood Pressure Record Table Explanation of Symbols on Unit... -
Page 3: Introduction
Introduction Thank you for purchasing and using the Kinetik Medical Wrist Type Blood Pressure Monitor. This monitor is an easy to use and accurate way to measure your blood pressure. Before you start, it is important that you read this instruction manual. -
Page 4: Parts
Parts Memory Systolic Diastolic Pulse Start inflate to measure pulse detected (appears during testing) deflate to measure (deflate air in cuff) low battery Wrist Cuff... -
Page 5: Setting Up Your Blood Pressure Monitor
Setting up your Blood Pressure Monitor Loading Batteries a. Open battery cover at the back of the device (cover slides off). b. Insert two "AAA" batteries, observing correct polarity. c. Close the battery door. Non-rechargeable batteries are not to be recharged. Always remove exhausted batteries from the monitor. - Page 6 Setting up your Blood Pressure Monitor Putting on the Cuff : a. Place the cuff on bare skin of left wrist and be sure to place sphygmomanometer (the device) on the centre of the wrist, as in the picture. b. Place the cuff 1~2cm above the wrist joint. c.
-
Page 7: Using Your Blood Pressure Monitor
Using your Blood Pressure Monitor Getting Started a. We recommend that you carry out your test whilst sitting at a table (ensuring the cuff is at the same height as your heart). This will place your wrist and the monitor in an ideal position to obtain the best results. - Page 8 Using your Blood Pressure Monitor There are 4 pre-programmed pressurisation values which are set at 187mmHg, 225mmHg, 263mmHg and 300mmHg. When automatic inflation begins, the unit will inflate to 187mmHg. If a pulse is not detected, the unit will continue to inflate automatically to the next pressurisation level. This will continue to a maximum level of 300mmHg.
-
Page 9: What The Results Mean
Using your Blood Pressure Monitor What the results mean a. The LCD screen will automatically display the systolic and diastolic pressure reading in mmHg and the pulse rate in pulse/min after each measurement. b. Record date, time, systolic reading, diastolic reading and pulse rate on your record card which you will find in the pack (including anything that may have influenced your blood pressure reading, e.g. - Page 10 Using your Blood Pressure Monitor Re-measuring If you want to measure again, just press the button. Leave at least three minutes between measurements to allow blood circulation to the arm to return to normal. Do not measure your blood pressure too many times in one session as it may cause discomfort in the arm.
-
Page 11: Using Your Blood Pressure Monitor
Using your Blood Pressure Monitor b. Press “M” button again after the final memory result, or press “START” at any time whilst in memory display mode, to switch the device off. In this mode, the device will automatically switch off after one minute of inactivity. -
Page 12: Additional Information On Blood Pressure
Additional Information on Blood Pressure Your heart is just like a pump which works all the time to make the blood flow through all of your body’s blood vessels. Blood pressure measures the force exerted on the wall of the blood vessels by the pressure of the blood. -
Page 13: Specification
Specification 1. Product Name: Wrist Type Blood Pressure Monitor 11. Classification: Internal powered Equipment Type B 12. Pressurisation: automatic air inflation by an air pump 2. Model: BPM 2 Series 13. Deflation: Automatic exhaust 3. Measuring method: Oscillometric method, automatic 14. -
Page 14: Interpretation Of Blood Pressure (Bp) Results
Interpretation of Blood Pressure (BP) Results... -
Page 15: Troubleshooting
Troubleshooting socket socket Socket socket Adjust your position – refer to page 6. LCD shows “Er 0” Pressure system is unstable before measurement. Don‘t move and try again. LCD shows “Er1” Systolic pressure detect fail Diastolic pressure detect fail LCD shows “Er 2”... -
Page 16: Troubleshooting
Troubleshooting Pneumatic system blocked or cuff is too LCD shows “Er 3” tight during inflation. Pneumatic system leakage or cuff is too Position the cuff correctly and try again. LCD shows “Er 4” loose during inflation. LCD shows “Er 5” Inflation above 300mmHg. -
Page 17: Maintenance
Maintenance 1. Do not drop this blood pressure monitor or subject it to heavy impact. 2. Avoid exposure to high temperatures, direct sunlight and contact with water. 3. If the monitor is stored at temperatures below freezing, do not use immediately. Leave at room temperature for at least one hour before use. -
Page 18: Blood Pressure Record Table
Blood Pressure Record Table Please log the date, time and your SYS (systolic) and DIA (Diastolic) blood pressure levels. We recommend you share this information with your Doctor... -
Page 19: Explanation Of Symbols On Unit
Unit 1301-2, 13th Floor, Railway Plaza, US Design Patent No. 29/319,246 39 Chatham Road South, Tsimshatsui, Kowloon, Hong Kong. Kinetik Medical Devices Ltd. Harvard House, The Waterfront, Elstree Road, 0197 Elstree, Herts WD6 3BS, UK Kinetik BPM2 UK IB 20110801 Made in PRC...
