Philips Perfect Draft HD3610/50 Service Manual page 2

DISASSEMBLY- AND RE-ASSEMBLY ADVISE
For your safety first be sure the plug is
disconnected from the mains!

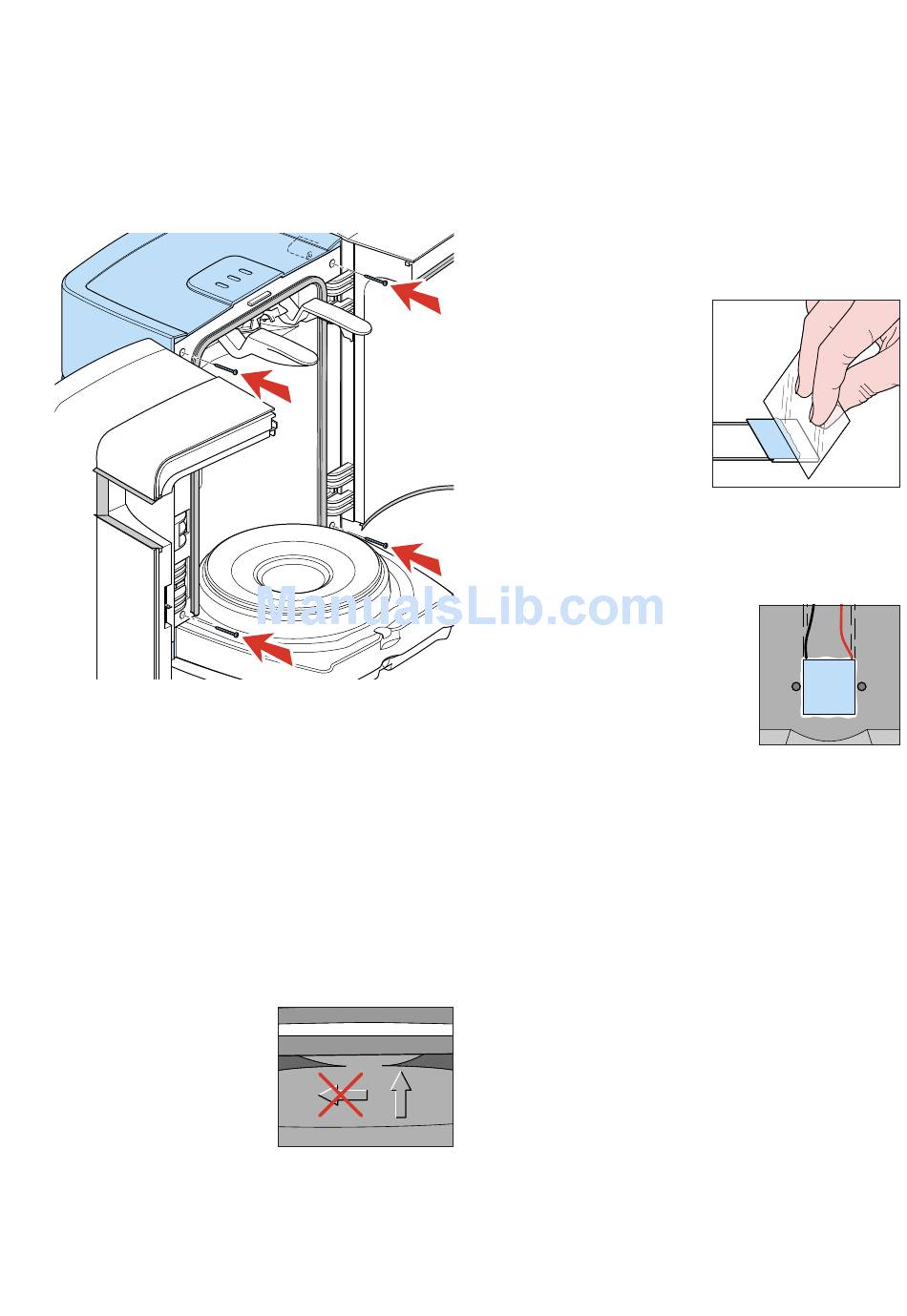

Removing the back cover:
- To remove the back cover, first remove the 4 screws.
- Open both doors, at the upper/lower right and left side the
screws can be found.
Picture 1.
- When the back cover has been removed all parts can easy be
reached.
Replacing the Lever Connector Assembly:
- Remove the screw that you can see on the front.
- Remove the hose from the pump unit.
- Now the lever assembly can be removed from the appliance.
- Reassembling follow above steps in reverse order.
Replacing the Doors:
- Remove the back cover.
- Unscrew the two screws that are holding the door.
- To re-assembly carry out steps backwards.
Replacing the Fan assy.
- When the Fan has to be
replaced, unscrew the 4 posi
screws and disconnect the
connector of the Fan.
- When re-assemble the fan
assy, be sure that the airflow
(see arrow on the Fan) is
appointing to the heat sink.
* Note: When the Fan became defect also Peltier
element has to be replaced or fully checked on
performance.
Due to overheating also the Peltier element will be
damaged.
Replacing the Peltier element:
- When the Peltier element has to be replaced, first remove
- Unscrew the 2 screws located on the heat sink.
- The heat sink including Peltier element can now be
- With a small screwdriver the Peltier element can be removed
- Before placing the new Peltier element, clean the chiller
- Provide heat sink paste on
- Place the new Peltier
- In other words, the cooling side
- Detail to check is the Colour of the
- Make sure the Peltier element is well
- Place the heat sink.
- Hold and place the heat sink with force against the Peltier
- Tighten the screws alternate, to prevent damaging the
- While screwing wait some seconds so that the heat sink past
- Maximum force that maybe applied to tighten the screws
Replacing the pump unit:
- Start with disconnecting the air pressure hose and electrical
- Unscrew the 3 screws from the plastic pump bracket.
- To re-assembly carry out steps backwards.
Picture 2. Picture 2.
the back cover and Fan assy.
removed.
from the heat sink, some force maybe needed.
plate and heat sink thoroughly.
the heat sink and chiller
plate. With a plastic comb
(or plastic like a credit card)
carefully provide the heat
sink paste as equable as
possible.
element on the chiller plate
at the same position of the
removed Peltier element.
NOTE! It is important to place the Peltier element with
the right side on the chiller plate.
(see picture 4 for details)
of the Peltier has to point to the
chillerplate and the warm side has
to point to the heat sink.
wires must be equal positioned see,
picture 4 for detail.
placed.
element.
Peltier element for mounting lop-sided.
can be settled between the surfaces.
are: 0.6 Nm.
connections.
NOTE! To prevent leakage at the connection side of the
hose, cut a small piece off the end of the hose.
HD3610/50
Picture 3. Picture 3.
Picture 4. Picture 4.
2-12
