COMPEX
User Guide
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KV2 Audio COMPEX
Summary of Contents for KV2 Audio COMPEX
-

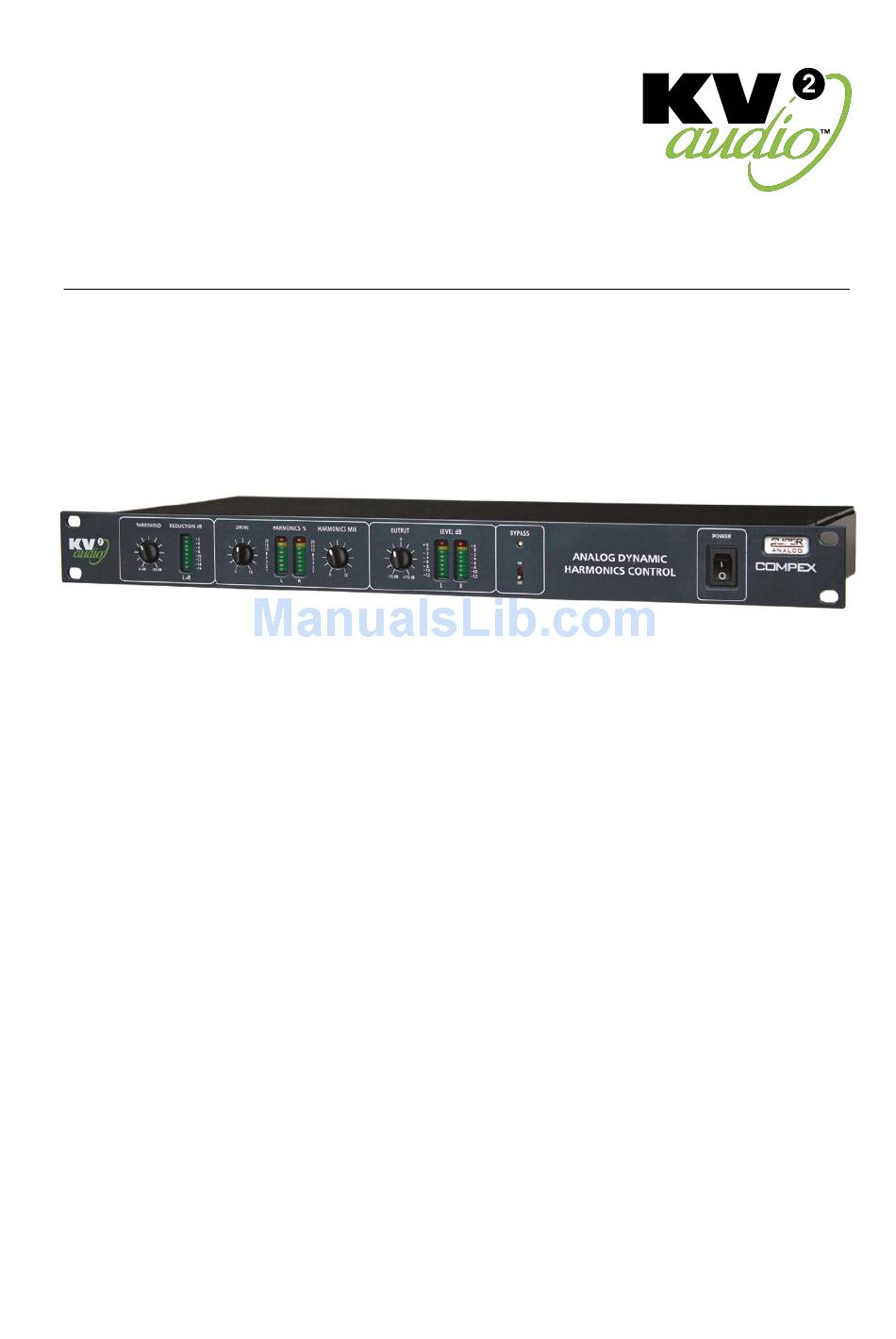

Page 1: User Guide
User Guide The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations. -
Page 2: Table Of Contents
Your COMPEX is covered against defects in material and workmanship. Refer to your supplier for more details. Service In the unlikely event that your COMPEX develops a problem, it must be returned to an authorised distributor, service centre or shipped directly to our factory. -
Page 3: Introduction
COMPEX. The AC mains plug or appliance coupler shall Icons used include remain readily accessible for operation. -
Page 4: Introducing The Compex

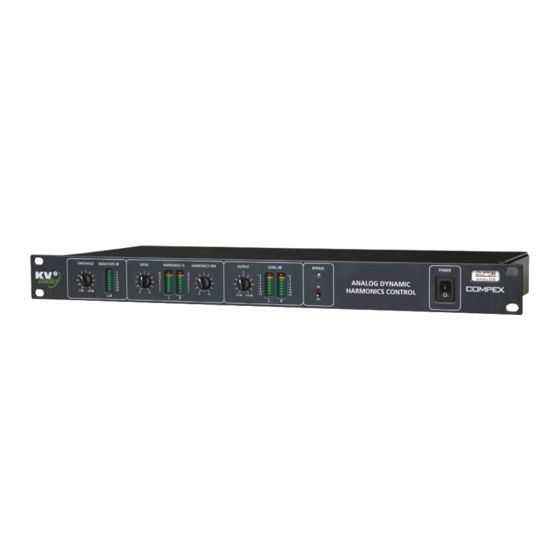

Introduction Introducing the COMPEX The COMPEX features an optical audio com- The COMPEX is a stereo (2 input x 2 output) pressor, with level dependent filters for reduc- Analog Dynamic Harmonics Control unit. tion of unpleasant high frequency distorted COMPEX is a pure analog signal processor... -
Page 5: Getting Started Unpacking
Getting started Unpacking Voltage requirements The COMPEX operates safely and without Unpack the COMPEX and check to see if there is any damage to it. If you find any damage audio discontinuity if the AC voltage stays notify your supplier immediately. -
Page 6: Features Front Panel
True bypass, bypasses all COMPEX features. Direct input signal is tranferred on BYPASS the COMPEX outputs. Bypass activation is indicated by the RED LED light above the bypass switch. Bypass can be activated remotely by using the REMOTE BYPASS Jack 1/4“ input on the rear panel. -
Page 7: Rear Panel
Balanced Male XLR connectors for sending Left and Right OUTPUT audio signal. Remote bypass control The COMPEX's bypass can be activated or deactivated by the REMOTE external switch connected by a standard Jack 1/4“. To switch BYPASS CONTROL the bypass short the tip and sleeve of the jack. -
Page 8: Using The System
The COMPEX uses balanced XLR connectors with standard signal level 0dBu. Outputs of the the COMPEX features line drivers to maintain audio signal integrity over long cable lengths. Run the audio system at the desired level and set the compressor threshold level to reduce harshness for comfortable listening. -
Page 9: Compex Specification
COMPEX Specification System Acoustic Perfomance -3dB Response 20Hz ÷ 100kHz Dynamic Range >130dB Channel Crosstalk 90dB Signal to Noise Ratio 110dB Total Harmonic Distortion 0,00001 Signal Input Input Channels Input Impedance 20k (balanced) Line input Signal Output Output channels Output Impedance... - Page 10 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120101-00-02-0...
