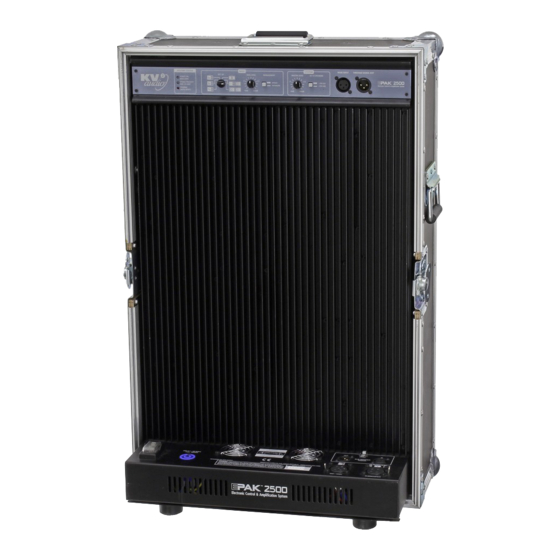

Kv2 audio epak 2500 four-way, active control and amplification unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

The future of sound.
Made perfectly clear.
At KV2 Audio our vision is to constantly develop
technologies that eliminate distortion and
loss of information providing a true dynamic
representation of the source.
Our aim is to create audio products that absorb
you, place you within the performance and deliver
a listening experience beyond expectation.
EPAK2500
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPAK 2500 and is the answer not in the manual?

Questions and answers

Related Manuals for KV2 Audio EPAK 2500

Summary of Contents for KV2 Audio EPAK 2500

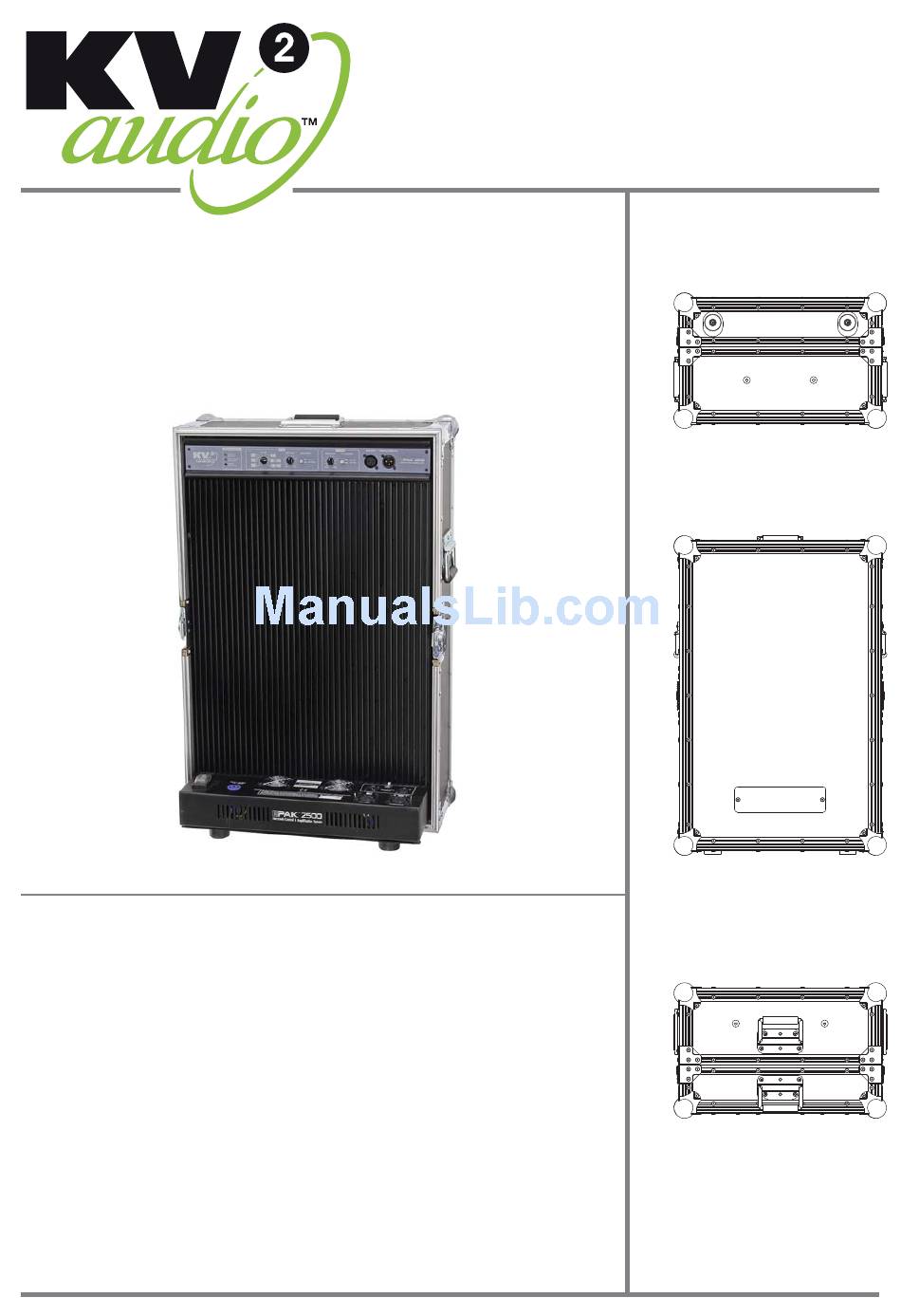

  • Page 1 EPAK2500 User Guide The future of sound. Made perfectly clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectation.

  • Page 3: Table Of Contents

    If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor of Dealer. Page | 3...

  • Page 4: Introduction

    7. Do not block any ventilation openings. spilled or objects have fallen into the 8. Install in accordance with KV2 Audio's EPAK2500; rain or moisture has entered recommended installation instructions. the unit; the unit has been dropped; or 9.

  • Page 5: Introducing The Epak2500

    Mid Bass and Low Frequency Amplifiers and amplifiation system specifically designed For these frequency ranges, we’ve selected a for the KV2 Audio ES Series™ modular loud- very high efficiency and refined low frequency speaker systems. It houses all signal processing amplifier topology.

  • Page 6: Getting Started Unpacking

    Getting started Voltage requirements Unpacking Your EPAK2500 will be supplied pre set to the Unpack the EPAK2500 and check to see if there is any damage to it. If you find any voltage used in your area. The table below damage notify your supplier immediately.

  • Page 7: Features

    Features Upper panel SYSTEM STATUS BASS SYSTEM MAIN INPUT THROUGH SIGNAL OUT SET UP SET UP ES2.5 or ES2.6 BASS LEVEL MANAGEMENT MASTER LEVEL ES 1.0 SPEAKERS POWER ON / BASS LIMIT SIGNAL PRESENT/ ATTACK 1 PER SIDE MID- HI LIMIT EXTENSION 2 PER SIDE THERMAL...
  • Page 8 Features Upper panel SYSTEM STATUS BASS SYSTEM MAIN INPUT THROUGH SIGNAL OUT SET UP SET UP ES2.5 or ES2.6 BASS LEVEL MANAGEMENT MASTER LEVEL ES 1.0 SPEAKERS POWER ON / BASS LIMIT SIGNAL PRESENT/ ATTACK 1 PER SIDE MID- HI LIMIT EXTENSION 2 PER SIDE THERMAL...

  • Page 9: Bottom Panel

    RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR ES 1.0 ES SERIES SUBS DESIGNED BY KV2 AUDIO, MANUFACTURED IN THE EUROPEAN UNION, WWW.KV2AUDIO.COM WARNING: SERIAL NUMBER THIS SURFACE MAY REACH HIGH TEMPERATURE DURING STANDARD USE. TO ENSURE PROPER OPERATION ALLOW A MINIMUM OF 6 INS. OF CLEARANCE FROM THIS SURFACE AND ADEQUATE VENTILATION.

  • Page 10: Using The System

    Using the System Normal set up The EPAK2500 is designed to actively power one ES1.0 cabinet and associated subwoofer systems. For Normal Mode operation signal is applied to the ‘Main Input’ connector and the ‘Insert’ switch would be in the ‘Disengage’ position. Six different combinations of subwoofers setup are accommodated for when using the EPAK2500.

  • Page 11: Using The Subwoofer Insert

    RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR ES 1.0 ES SERIES SUBS DESIGNED BY KV2 AUDIO, MANUFACTURED IN THE EUROPEAN UNION, WWW.KV2AUDIO.COM WARNING: SERIAL NUMBER THIS SURFACE MAY REACH HIGH TEMPERATURE DURING STANDARD USE. TO ENSURE PROPER OPERATION ALLOW A MINIMUM OF 6 INS. OF CLEARANCE FROM THIS SURFACE AND ADEQUATE VENTILATION.

  • Page 12: Block Diagram

    Block diagram Page | 12...

  • Page 13: Specification

    EPAK2500 Specifications High Frequency Amplifier Specification Type Class AB Push-Pull low inter-modulation Mosfet design with transformer balanced output Rated Continuous Power 100W Distortion <0.05% Operating Bandwidth 2.5kHz ÷ 28kHz Mid Frequency Amplifier Specification Type Class AB Push-Pull low inter-modulation Mosfet design with transformer balanced output Rated Continuous Power 200W...

  • Page 14: Accessories

    EPAK2500 Accessories ES Mid/Hi speaker cable MH15, Amphenol AP6 cable-mount AP6 connectors - 1,5m female connector MH15 AP-6-11 part name: part name: KVV 987 147 KVV 987 050 part number: part number: - 1,5m (5ft), Mid/Hi Module hook-up ES Mid/Hi speaker cable MH60, Amphenol AP6 cable-mount AP6 connectors - 6m male connector...
  • Page 16 The future of sound. Made perfectly clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectation.
