COMPEX
User Guide
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMPEX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KV2 Audio COMPEX

  • Page 1 User Guide The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations.
  • Page 2 14. Unplug COMPEX during lightning storms or when unused for long periods of time. 15. Refer all servicing to qualified service personnel. Servicing is required when the COMPEX has been damaged in any way, such as when the power-supply cord or plug has been damaged; liquid has been spilled or objects have fallen into the COMPEX;...
  • Page 3: Table Of Contents

    COMPEX · Contents Contents Introduction Introduction Dimensions Getting Started Unpacking Rack mounting AC Power requirements Voltage requirements Connector wiring Remote bypass control wiring Features Front Panel Rear Panel Using the System Specifications Warranty · Service Notes 10 - 12...
  • Page 4: Introduction

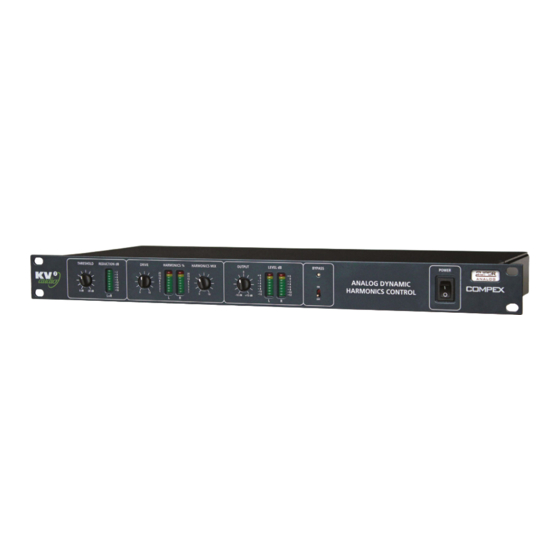

    • Use with any KV2 Audio system Introduction The COMPEX is a stereo (2 input x 2 output) Analog Dynamic Harmonics Control unit. COMPEX is a pure analog signal processor which provides adjustment of the audio signal from low quality signal sources.
  • Page 5: Getting Started

    Unpacking Unpack the COMPEX and check to see if there is any damage to it. If you find any damage notify your supplier immediately. Only the consignee may institute a claim with the carrier for any damage incurred during shipping. Be sure to save the carton and all packaging materials for the carrier's inspection.
  • Page 6: Features

    Bypass True bypass, bypasses all COMPEX features. Direct input signal is tranferred on the COMPEX outputs. Bypass activation is indicated by the RED LED light above the bypass switch. Bypass can be activated remotely by using the REMOTE BYPASS Jack 1/4" input on the rear panel.
  • Page 7: Rear Panel

    Balanced Male XLR connectors for sending Left and Right audio signal. Remote bypass control The COMPEX's bypass can be activated or deactivated by the external switch connected by a standard Jack 1/4". To switch the bypass short the tip and sleeve of the jack.
  • Page 8: Using The System

    Connect the COMPEX between signal source directly after your mixing console and amplifier or active speaker system. The COMPEX uses balanced XLR connectors with standard signal level 0dBu. Outputs of the COMPEX features line drivers to maintain audio signal integrity over long cable lengths. Run the audio system at the desired level and set the compressor threshold level to reduce harshness for comfortable listening.
  • Page 9: Specifications

    COMPEX · Specifications Specifications System Acoustic Perfomance -3dB Response 20Hz to 100kHz Dynamic Range >130dB Channel Crosstalk 90dB Signal to Noise Ratio 110dB Total Harmonic Distortion 0,001% Signal Input Input Channels Input Impedance 20kΩ (balanced) Line input Signal Output Output Channels Output Impedance 50Ω...
  • Page 10: Warranty · Service

    Service In the unlikely event that your COMPEX develops a problem, it must be returned to an authorized distributor, service centre or shipped directly to our factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel.
  • Page 11: Notes

    COMPEX · Notes...
  • Page 12 COMPEX · Notes...
  • Page 13 COMPEX · Notes...
  • Page 14 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120101-00-03-0...
