VHD5 Amplif iers
User Guide
· VHD5000 · VHD5000S · VHD5100
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
Advertisement
Table of Contents
Related Manuals for KV2 Audio VHD5 Series
Summary of Contents for KV2 Audio VHD5 Series
- Page 1 · VHD5000 · VHD5000S · VHD5100 The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations.
- Page 2 The AC mains plug or appliance coupler shall remain readily accessible for operation. 12. Only use accessories specified by KV2 Audio. 13. Install the product only with rigging specified by KV2 Audio, or sold with the loudspeaker. 14. Unplug this loudspeaker during lightning storms or when unused for long periods of time.
-
Page 3: Table Of Contents
VHD5.0 Amplifiers · Contents Contents VHD5000 · VHD5000S · VHD5100 · Introduction VHD5000 Introduction Getting started Features - Front panel Features - Rear panel 7 - 8 Drawing Specifications Block Diagram VHD5000S Introduction Getting started Features - Front panel Features - Rear panel Drawing Specifications Block Diagram... -
Page 4: Vhd5000 · Vhd5000S · Vhd5100 · Introduction

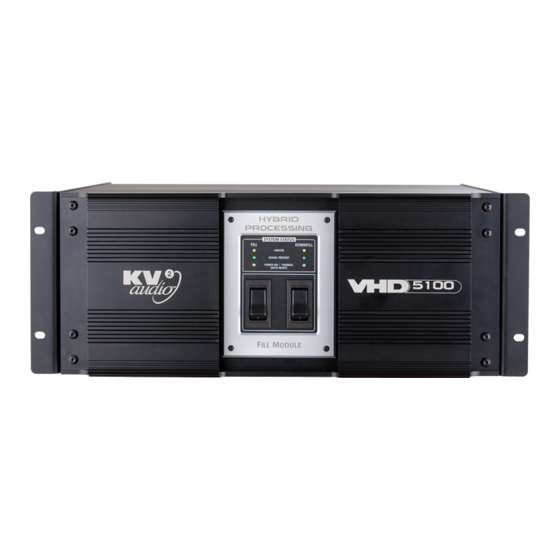

VHD5000 · VHD5000S · VHD5100 VHD5000 - part number KVV 987 334 (230V) VHD5000S - part number KVV 987 356 (230V) VHD5100 - part number KVV 987 438 (230V) Introduction The VHD5000 with adjacent VHD5000S and VHD5.0 Power Unit is a control and amplification system for processing and powering one VHD5.0 Mid-High enclosure and three VHD8.10 Low/Mid enclosures. -
Page 5: Vhd5000
The VHD5000 is equipped with many features for easy large scale speaker system use. It features all signal processing, crossover and speaker system protection. All signal processing is executed with KV2 Audio Super Audio Analog circuitry and utilize KV2's industry leading 20MHz sampling for on board time alignment and phase correction for maximum audio quality. -
Page 6: Getting Started
VHD5000 · Getting started To indicate that caution is necessary when operating the device or control close to where the symbol is placed, or to indicate that the current situation needs operator awareness or operator action in order to avoid undesirable consequences. This device is not suitable for use in places where children may be present. -
Page 7: Features - Front Panel
VHD5000 · Features · Front panel Front Panel 1) Sun readable touch screen display Serves for user friendly setup of all functions of the VHD5000 and adjacent VHD5000S and VHD5 Power Unit with flybar. You can easily set levels, time delays, filters, network setups and memories. The same settings can be set using network control. Please refer to the VHD5000 software User Guide for more information. -
Page 8: Features - Rear Panel
WWW.KV2AUDIO.COM PANEL OR ANY ATTACHED COMPONENT. NO OPERATOR SERVICEABLE PARTS INSIDE. REFER SERVICING TO DESIGNED BY KV2 AUDIO QUALIFIED PERSONNEL. TO REDUCE THE RISK OF FIRE OR ELECTRIC MANUFACTURED IN THE EUROPEAN UNION SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - Page 9 VHD5000 · Features · Rear panel POWER INPUT, OUTPUTS 8) PowerCon Power Connector Accepts a standard PowerCon 32A terminated AC cable. 9) Output Mid/Hi VHD5.0 AP6 Connector, accepts a standard AP6 terminated loudspeaker cable for connecting up to a single VHD5.0 cabinet. We recommend using 2.5 mm/core cables.
-
Page 10: Drawing
VHD5000 · Drawing Drawing... -
Page 11: Specifications
VHD5000 · Specifications Specifications Output Channels Number of Channels 1 x VHD5.0 High Frequency Amplifier 1 Specification Type Class AB Push-Pull low IM Mosfet design, transformer balanced output Rated Continuous Power 300W Distortion < 0.02% Operating Bandwidth 2kHz to 30kHz High Frequency Amplifier 2 Specification Type High Efficiency, High power bandwidth... -
Page 12: Block Diagram
VHD5000 · Block Diagram Block Diagram... -
Page 13: Vhd5000S
VHD5000S · Introduction VHD5000S - part number KVV 987 356 (230V) Application Specifically designed as the amplification and control unit for powering the 1xLow/Mid VHD5.0 part and 3xVHD8.10 loudspeakers in a rack mount module • Large scale Portable PA • Fixed installations • Large clubs Introduction The VHD5000S is a rack mounted, high efficiency, low/mid amplifier, specifically designed in conjunction with the VHD5000... -
Page 14: Getting Started
VHD5000S · Getting started To indicate that caution is necessary when operating the device or control close to where the symbol is placed, or to indicate that the current situation needs operator awareness or operator action in order to avoid undesirable consequences. This device is not suitable for use in places where children may be present. -
Page 15: Features - Front Panel
VHD5000S · Features · Front panel Front Panel SYSTEM STATUS LIMITER SIGNAL PRESENT POWER ON/ THERMAL (AUTO RESET) SYSTEM ERROR COMMUNICATION STANDBY 1) Limiter These yellow LED's indicate when the audio limiter has been activated for that particular channel of the amplifier. 2) Signal Present SYSTEM STATUS These green LED's indicate when signal is present at the Input to... -
Page 16: Features - Rear Panel
WWW.KV2AUDIO.COM PANEL OR ANY ATTACHED COMPONENT. NO OPERATOR SERVICEABLE PARTS INSIDE. REFER SERVICING TO DESIGNED BY KV2 AUDIO QUALIFIED PERSONNEL. TO REDUCE THE RISK OF FIRE OR ELECTRIC MANUFACTURED IN THE EUROPEAN UNION SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. -
Page 17: Drawing
VHD5000S · Drawing Drawing... -
Page 18: Specifications
VHD5000S · Specifications Specifications Output Channels Number of Channels Mid-Bass Frequency Amplifier Specification Type High efficiency, Low frequency, High current Rated Continuous Power 2500W Min. Load Impedance 2Ω Distortion <0.05% Operating Bandwidth 20Hz to 450Hz Signal Input Input Channels Input Sensitivity 1.5V RMS Input Impedance 10kΩ... -
Page 19: Block Diagram
VHD5000S · Block Diagram Block Diagram... -
Page 20: Vhd5100
• Large clubs Introduction The VHD5100 is a two channel, three-way, active control and amplification system specially designed for the KV2 Audio VHD5.1 Downfill and ESR215MkII loudspeaker system. It houses all signal processing and amplification, as well as providing control and crossover function if needed utilizing a Fill channel external subwoofer. -
Page 21: Getting Started
VHD5100 · Getting started To indicate that caution is necessary when operating the device or control close to where the symbol is placed, or to indicate that the current situation needs operator awareness or operator action in order to avoid undesirable consequences. This device is not suitable for use in places where children may be present. -
Page 22: Features - Front Panel
VHD5100 · Features · Front panel Front Panel 1) AC Mains Switch The VHD5100 Amplifier has a combination AC Main switch/circuit breaker on the front panel. If the switch shuts off during normal use, push it back to the ON position once. If it will not stay on you should take the unit to qualified service personnel to have it serviced. -
Page 23: Features - Rear Panel
VHD5100 · Features · Rear panel Rear Panel VHD5100 Fill Channel 7) Powercon Power Connectors 1) Fill in / Through out This is the Fill channel input balanced XLR connector with The VHD5100 Amplifier uses two connectors per two associated Through Signal Output connector for sending channel. -
Page 24: Drawing
VHD5100 · Drawing Drawing... -
Page 25: Using The System
VHD5100 · Using the System Full range setup ESR215MkII FILL VHD5.1 Down ll DOWNFILL FILL DOWNFILL FILL IN DOWNFILL IN... - Page 26 VHD5100 · Using the System External subwoofer setup ESR215MkII FILL VHD5.1 Down ll DOWNFILL FILL IN DOWNFILL IN Set VHD5100 Amplifier to FULL RANGE OFF mode. Signal is crossed over at Hi/Mid for ESR215MkII cabinets and SUB for external subwoofer. Crossover frequency is app. 70Hz. SUB SET UP LEVEL setting depends on subwoofer type and music style.
-
Page 27: Specifications
VHD5100 · Specifications Specifications Output Channels Number of Channels 2 (Fill + DownFill) Total Output Power 2x 1300W High Frequency Amplifier Specification Type Class AB - Push Pull - Low IM Design, Transformer balanced output Rated Continuous Power 100W Distortion <0.02% Operating Bandwidth 2,5kHz to 40kHz... -
Page 28: Block Diagram
VHD5100 · Block Diagram VHD5100 Block Diagram Channel DOWNFILL... - Page 29 VHD5100 · Block Diagram VHD5100 Block Diagram Channel FILL...
-
Page 30: Vhd5.0 Power Unit
VHD5.0 Power Unit · Front Panel VHD5.0 Power Unit The VHD5 Power Unit serves to present VHD5000 amplifiers as an easy to use, plug and play, rack mounted system. This unit provides power for VHD5000, VHD5000S and 3 additional adjacent devices from one 3 phase 230V/16A power outlet. The VHD5 Power Unit also provides interconnection of signals and data cables from back to front of the rack system. -
Page 31: Rear Panel
VHD5.0 Power Unit · Rear Panel Rear Panel 1) Ethernet and signal - XLR inputs and outputs interconnections VHD5 Power Unit serves as a interconnection of signals, power and data cables from back to front when using VHD5000 amplifiers rack mounted. Each connector is described the same as on the VHD5000 amplifiers to make rack interconnection intuitive. -
Page 32: Wiring Scheme
VHD5.0 Power Unit · Wiring Scheme Power Unit Wiring Scheme with VHD5000 and VHD5000S signal FILL IN (mixing console) XLR - signal Amphenol 6P / LK Link 8P - Mid/Hi speaker output XLR - internal comunication Amphenol 4P / LK Link 9P - Mid/Low speaker output XLR - KV2 NET (comunication between VHD5 systems) Powercon XLR - Ethernet CATS... -
Page 33: Basic Configuration
VHD5000 CONNECT WARNING TO CONNECT VHD5000 USE THE CONNECTOR OF THE SAME COLOUR AS THIS PANEL. REFER TO OWNER‘S MANUAL TO ENSURE PROPER CONNECTION. DESIGNED BY KV2 AUDIO, MANUFACTURED IN THE EUROPEAN UNION SERIAL NUMBER WWW.KV2AUDIO.COM VHD8.10 8.10 B A S S... -
Page 34: Warranty · Service
In the unlikely event that your VHD5.0 Amplifiers develops a problem, it must be returned to an authorized distributor, service centre or shipped directly to the KV2 Audio factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel. -
Page 35: Notes
VHD5.0 Amplifiers · Notes... - Page 36 VHD5.0 Amplifiers · Notes...
- Page 37 VHD5.0 Amplifiers · Notes...
- Page 38 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120124-00-04-0...
