VERY HIGH DEFINITION
VHD 3200
OPERATOR'S MANUAL
VHD - Active Driven, Vertically Arrayable, Long Throw,
Wide Dispersion Speaker System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VHD 3200 and is the answer not in the manual?

Questions and answers

Related Manuals for KV2 Audio VHD 3200

Summary of Contents for KV2 Audio VHD 3200

  • Page 1 VERY HIGH DEFINITION VHD 3200 OPERATOR’S MANUAL VHD - Active Driven, Vertically Arrayable, Long Throw, Wide Dispersion Speaker System...

  • Page 2: Important Safety Instructions

    9. Connect only to AC power outlets rated 115-250V, 50-60Hz. 10. Do not use this VHD 3200 if the power cable is broken or frayed. Protect the power cable from being walked upon or pinched particularly at the plugs and the point where it exits from the apparatus.

  • Page 3: Table Of Contents

    INDEX 1. Introduction 2. Getting Started 2.1 Unpacking 2.2 Rack Mounting 2.3 Cooling 2.4 AC Requirements 3. Features 3.1 Front panel 3.2 Rear panel 4. Operation 5. Specifications 6. Warranty Service & Contact Information...

  • Page 4: Introduction

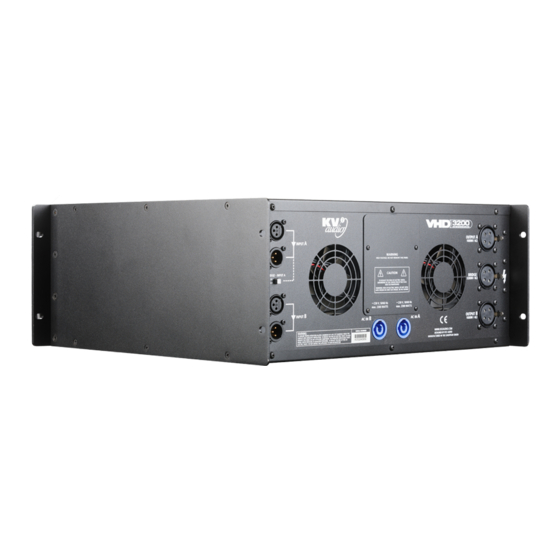

    The VHD 3200 is a rack mounted subwoofer amplifier. The unit contains two separate 1600 watt amplifiers with individual power supplies, signal paths and inputs and outputs within a single four rack space chassis.

  • Page 5: Getting Started

    GETTING STARTED 2.1 UNPACKING Unpack the VHD 3200 and check to see if there is any damage to it. If you find any damage notify your supplier immediately. Only the consignee may institute a claim with the carrier for damage incurred during shipping. Be sure to save the carton and all packing materials for the carrier's inspection.

  • Page 6: Rear Panel

    Always isolate your AC supply before disconnecting the PowerCon connector. Your VHD 3200 will be supplied pre set to the voltage used in your area. The table below provides typical current draw figures for the VHD 3200.

  • Page 7: Front Panel

    THERMAL (AUTO RESET) 1) AC Mains Switch The VHD 3200 has combination AC Mains switch/circuit breakers on the front panel. If either of the switches shuts off during normal use, push it back to the ON position once. If it will not stay on you should take the unit to qualified service personnel to have it serviced.

  • Page 8: Rear Panel

    2) PowerCon Power Connectors One for each channel of the VHD 3200 both must be connected to operate both channels of the VHD 3200. They accept standard PowerCon terminated AC Mains cables. 3) Fans The cooling fans operate continuously while the VHD 3200 is on.

  • Page 9: Operation

    OPERATION The VHD 3200 is designed to be used either with the VHD 2000 or the ERAC 2500R controller amplifiers and to power only certain combinations of KV2 Audio Subwoofers. Because of its unique design it cannot be used as a standard power amplifier to power any other loudspeakers without the possibility of damage occurring.

  • Page 10: Specifications

    VHD 3200 AMPLIFIER / CONTROLLER SPECIFICATIONS Signal Input Input Sensitivity 1 Volt Rms at full power Input Impedance 20kOhm (Balanced) Main Signal Input Connector Female XLR Through Signal Output Male XLR Speaker Output Subwoofer Speaker Connector Panel-mounted Amphenol EP-4 Female...
  • Page 11 SERVICE In the unlikely event that your VHD 3200 develops a problem, it must be returned to an authorized distributor, service centre or shipped directly to our factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel.
