Operator's Manual

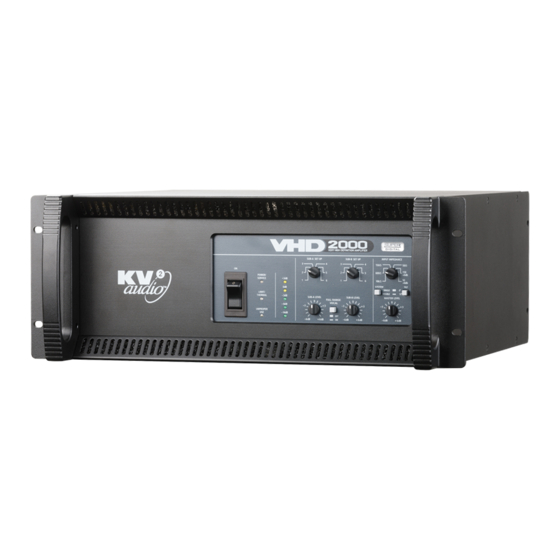

VHD Amplifiers
User Guide
· VHD2000 · VHD3200
The Future of Sound.
Made Perfectly Clear.
At KV2 Audio our vision is to constantly develop technologies
that eliminate distortion and loss of information providing
a true dynamic representation of the source.
Our aim is to create audio products that absorb you,
place you within the performance and deliver a listening
experience beyond expectations.
Advertisement
Table of Contents
Related Manuals for KV2 Audio VHD2000
Summary of Contents for KV2 Audio VHD2000
-
Page 1: User Guide
· VHD2000 · VHD3200 The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations. -
Page 2: Important Safety Instructions
The AC mains plug or appliance coupler shall remain readily accessible for operation. 12. Only use accessories specified by KV2 Audio. 13. Install the product only with rigging specified by KV2 Audio, or sold with the loudspeaker. 14. Unplug this loudspeaker during lightning storms or when unused for long periods of time. -
Page 3: Table Of Contents
VHD Amplifiers · Contents Contents VHD2000 Introduction Getting started Features - Front panel 5 - 6 Features - Rear panel Using the system 8 - 10 Specifications Block Diagram Recommended Enclosure Combinations 13 - 19 VHD3200 Introduction Getting started Features - Front panel... -
Page 4: Vhd2000
VHD 2000 manages all system functions and assures optimal performance. The VHD2000 is "Line Driver Ready" and has its own input impedance selector on the front panel to accurately match up the input impedance to the output of any mixer used. In most cases it would be advisable to use a VHD LD4 line driver in addition at the mixer end to ensure that the line to the amplifier is driven correctly and the signal integrity maintained. -
Page 5: Getting Started
Unpacking Unpack the VHD2000 and check to see if there is any damage to it. If you find any damage notify your supplier immediately. Only the consignee may institute a claim with the carrier for damage incurred during shipping. Be sure to save the carton and all packing materials for the carrier's inspection. -
Page 6: Features - Front Panel
If the VHD 2000 is connected improperly then this LED will light and the unit will shut down. An example of this is if a full range signal is applied to the 'Mid/Hi In' rather than the 'Main Input' , the VHD2000 will sense this and shut down to further protect any damage occurring to loudspeakers that are connected to it. -
Page 7: Features - Front Panel
8) Input Impedance This rotary switch sets the Input Impedance of the VHD2000 to match that of the mixer or other device supplying the audio signal to the VHD2000's input. This is especially important when driving longer cable runs and it enables the line to be driven correctly without any losses or other interference. -
Page 8: Features - Rear Panel
2) Mid/High In / Pre Control Out This is an insert point for the Mid/High section of the VHD2000, the signal sent to the VHD2.0 cabinet. It enables you to 'insert' an external device (a delay line for example) into the signal that is being sent to the VHD2.0. With the associated switch in the 'Engage' setting the Pre Control Out connector would send the signal to the external device, and its output would be returned into the Mid/High In connector. -
Page 9: Using The System
KV2 Audio LD4 Line Driver then the Input Impedance control on the VHD2000 should be set to 50Ω. If when using the LD4 you are feeding more than one VHD2000 then they should all be set to 10kΩ with the last one in the signal chain set to 50Ω. - Page 10 Full Range Vocal Mode If the VHD2.0 is being used solely for vocal reinforcement & light music playback then the VHD2000 is used with the associated 'Full Range Vocal' switch depressed. A 60Hz roll-off is added to the system to protect the VHD2.0.
-
Page 11: Using The System
VHD2.0 fed by the main output from the mixing console: The table below shows the various combinations of the Sub A/B switches and their effect on the signal routing in the VHD2000: Sub-A Switch... -
Page 12: Specifications
VHD2000 · Specifications Specifications Output Channels Number of Channels High Frequency Amplifier Specification Type Class AB Push-Pull low IM Mosfet design, transformer balanced output Rated Continuous Power 300W Distortion < 0.05% Operating Bandwidth 2.2kHz to 30kHz Mid Frequency Amplifier Specification... -
Page 13: Block Diagram
VHD2000 · Block Diagram Block Diagram... -
Page 14: Recommended Enclosure Combinations
VHD2000 · Recommended Enclosure Combinations Sub Setting 1 Front panel VHD2000 Setup... - Page 15 VHD2000 · Recommended Enclosure Combinations Sub Setting 1B Front panel VHD2000 Setup...
- Page 16 VHD2000 · Recommended Enclosure Combinations Sub Setting 2 Front panel VHD2000 Setup...
- Page 17 VHD2000 · Recommended Enclosure Combinations Sub Setting 3 Front panel VHD2000 Setup...
- Page 18 VHD2000 · Recommended Enclosure Combinations Sub Setting 4 Front panel VHD2000 Setup...
- Page 19 VHD2000 · Recommended Enclosure Combinations Sub Setting 5 Front panel VHD2000 Setup...
-
Page 20: Recommended Enclosure Combinations
VHD2000 · Recommended Enclosure Combinations Sub Setting 6 Front panel VHD2000 Setup... -
Page 21: Vhd3200
The unit can be used in bridged mode to provide full power for one channel mode. The unit acts as a slave for the VHD2000, which provides audio and control signal. -
Page 22: Getting Started
VHD3200 · Getting started Unpacking Unpack the VHD3200 and check to see if there is any damage to it. If you find any damage notify your supplier immediately. Only the consignee may institute a claim with the carrier for damage incurred during shipping. Be sure to save the carton and all packing materials for the carrier's inspection. -
Page 23: Features - Front Panel
VHD3200 · Features · Front panel Front panel LIMITER LIMITER SIGNAL PRESENT SIGNAL PRESENT POWER ON / POWER ON / THERMAL (AUTO RESET) THERMAL (AUTO RESET) 1) AC Mains Switch The VHD3200 has combination AC Mains switch/circuit breakers on the front panel. If either of the switches shuts off during normal use, push it back to the ON position once. -
Page 24: Features - Rear Panel
1600W / 4 SERIAL NUMBER SERIAL N UMBE R WWW.KV2AUDIO.COM WWW.KV2AUDIO.COM DESIGNED BY KV2 AUDIO DESIGNED BY KV2 AUDIO MANUFACTURED IN THE EUROPEAN UNION MANUFACTURED IN THE E UROPEAN UNION 1) Main Input A/B These are the input connectors for channels A & B with associated 'Through Output' connectors for sending signal to other devices. -
Page 25: Operation
Operation The VHD3200 is designed to be used either with the VHD2000 or the EPAK2500/R controller amplifiers and to power only certain combinations of KV2 Audio Subwoofers. Because of its unique design it cannot be used as a standard power amplifier to power any other loudspeakers without the possibility of damage occurring. -
Page 26: Specifications
VHD3200 · Specifications Specifications Output Channels Number of Channels Out. Power 4Ω - 1 channel / 2 channels loaded 1600W / 1600W (RMS) Out. Power 8Ω - bridged 3200W (RMS) Low Frequency Amplifier Specification Type High efficiency, Low frequency, Current-enhancing switch mode Distortion <... -
Page 27: Warranty · Service
If the unit needs to be shipped back to the factory, it must be sent in its original carton. If improperly packed, the unit may be damaged. To obtain service, contact your nearest KV2 Audio Service Centre, Distributor or Dealer. -
Page 28: Notes
VHD Amplifiers · Notes... - Page 29 VHD Amplifiers · Notes...
- Page 30 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120119-00-01-0...
