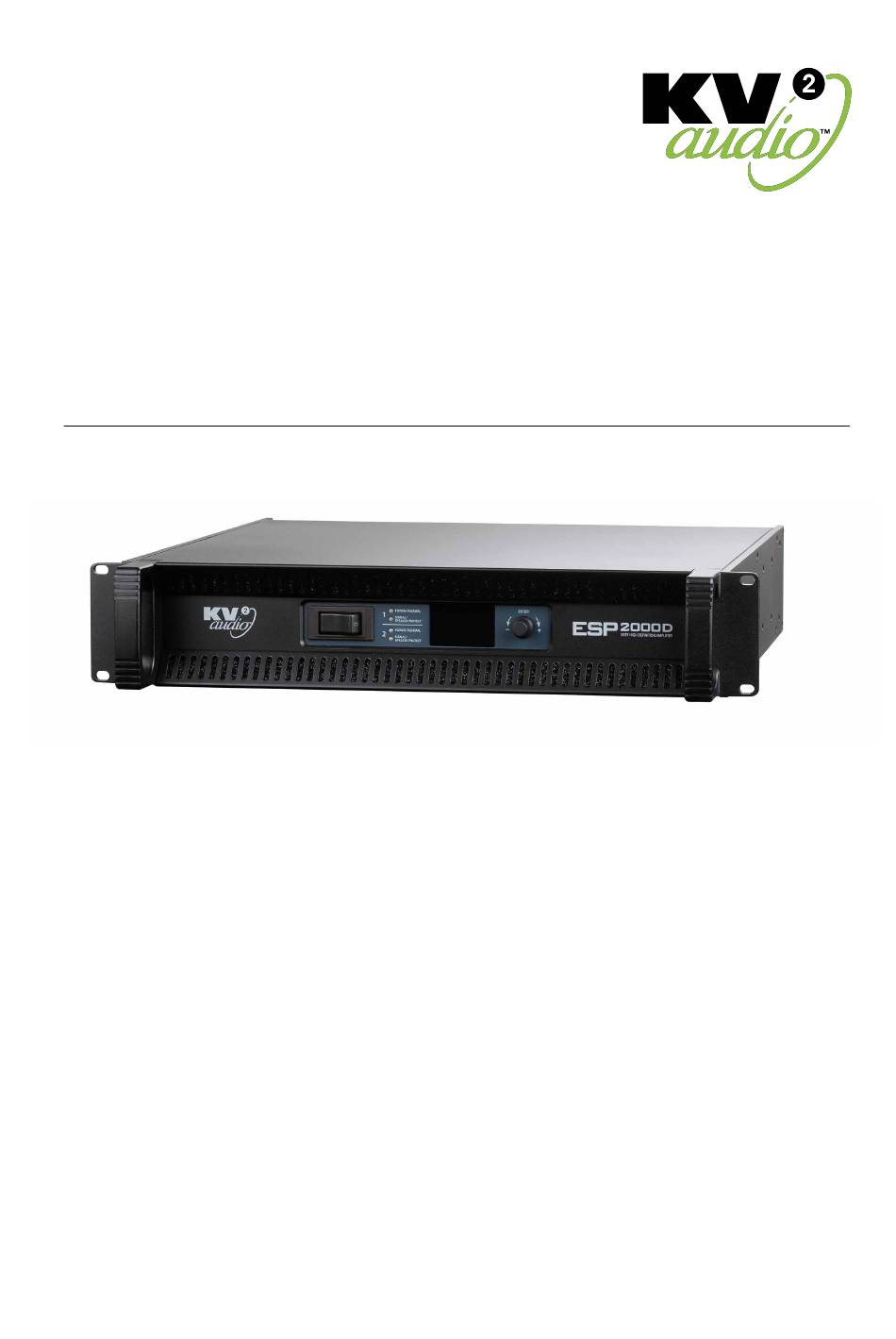

- Page 1 User Guide The Future of Sound. Made Perfectly Clear. At KV2 Audio our vision is to constantly develop technologies that eliminate distortion and loss of information providing a true dynamic representation of the source. Our aim is to create audio products that absorb you, place you within the performance and deliver a listening experience beyond expectations.
- Page 3 ESP2000D · Important Safety Instructions Important Safety Instructions Before using your ESP2000D Amplifier, be sure to carefully read the applicable items of these operating instructions and the safety suggestions. 1. Read all product instructions. 2. Keep printed instructions, do not throw away.
-
Page 4: Table Of Contents
ESP2000D · Contents Contents Introduction Introduction / Dimensions Getting Started 4 - 6 Unpacking / Rack mounting / Cooling / AC Power requirements / AC Power Voltage requirements / The Power Connector / Current Requirements Current Draw / AC Cable Colour Coding / Safety Summary... -
Page 5: Introduction
• Fixed installations Introduction The ESP2000D is a two channel rack mountable power amplifier. The unit contains two separate 1000 watt amplifiers, two independent power supplies, (each channel running off each power supply), two signal paths, inputs and outputs as well as limiting and low frequency enhancement on each of the two channels within a two rack unit chassis. -
Page 6: Getting Started
Unpacking Unpack the ESP2000D and check to see if there is any damage to it. If you find any damage, notify your supplier immediately. Only the consignee may institute a claim with the carrier for any damage incured during shipping. Be sure to save the carton and all packaging materials for the carrier's inspection. -
Page 7: Voltage Requirements / The Power Connector / Current Requirements
Each of the ESP2000D's power supply inputs require approximately 20 Amps max at 115V AC for proper operation. This means that both of the ESP2000D's power supplies must be powered from an individual 20 A breaker when running in 115V mode. -
Page 8: Current Draw / Ac Cable Colour Coding / Safety Summary
Connect the green and yellow wire to the terminal marked with an E or coloured green or green and yellow. Power cable color coding CAUTION: THE ESP2000D REQUIRES A GROUND CONNECTION. ALWAYS USE A GROUNDED OUTLET AND PLUG. Safety Summary To reduce the risk of electric shock, disconnect the amplifier from the AC mains before installing the audio cable. -
Page 9: Front Panel
1) AC Mains Switch The ESP2000D has combination AC mains switch/circuit breakers on the front panel. If either of the switches shut off during normal use, push it back to the ON position once. If it will not stay on you should take the unit to qualified service personnel to have it serviced. -
Page 10: Rear Panel
When bridge mode is used, only input 1 is active. 2) PowerCon Power Connector The ESP2000D accepts standard PowerCon terminated AC Mains cables. The ESP2000D uses one connector per two channels. Communication The ESP2000D accept standard PowerCon terminated AC Mains cables. The ESP2000D uses one connector per two channels. - Page 11 7) Bridge Mode Neutrik Speakon® connector Output channel of the ESP2000D when running in Bridge Mono Mode. Do not connect other speakers to speakers outputs 1 & 2 in Bridge Mono Mode. The minimum recommended output load is 4Ω, when running in Bridge Mono Mode.
-
Page 12: Display Menu Description
ESP2000D · Display menu description Display menu description The ESP2000D has three main display screens for indication and setup. The Main screens are: BASIC - for input levels, mutes and +bass setup. ADVANCED for bridge mode, speaker protection and factory reset. - Page 13 ESP2000D Web-server The ESP2000D web-server is accessible using a standard web browser on PC or mobile device. The appropriate ESP2000D network address must be set to access web-server. The web-browser device IP address must be set from the same network range and must be connected into the same network.
-
Page 14: Web-Server
ESP2000D · Remote management Web-server page Open the ESP2000D web-server, use the ESP2000D IP address, which is shown on display - section NET, or can be obtained using the KV2 diagtool software. Overview Shows the amplifier basic information. Basic Information Shows the information assigned by user of the amplifier: Description, Amplifier name, Location, Contact, Uptime and Firmware revision. -
Page 15: Channels
ESP2000D · Remote management Channels Shows the amplifier control parameters and amplifier diagnostics information. Control Changes the amplifier control parameters, Mute (RED = amplifier muted), Input level (-24 to +6 dB), BASS EQ (ON or OFF), Speaker protection (700, 400, 200W, OFF). -
Page 16: Diagnostics
ESP2000D · Remote management Diagnostics Shows the ESP2000D amplifier and its components diagnostics information. Dual colour - Green = OK / Red = no power or some problem occurs. Device Sums ESP2000D diagnostics together. Channel 1 & 2 Sums amplifier channel diagnostics information: Power source, Temperature, Health (amplifier 1 / 2 are working OK with dedicated gain). Temperature Displays amplifiers heat sinks 1 & 2 temperatures (°C). -
Page 17: Settings
ESP2000D · Remote management Settings Shows and sets the device information, web-server password, network address. Device identification Shows and sets the device local information, Device name, Location, Contact. Security Sets name and password for web-server security (default User name: admin, default Password: admin). -
Page 18: Specifications
ESP2000D · Specifications Specifications System Acoustic Perfomance -1dB Response 3Hz to 40kHz Channel Crosstalk >70dB Signal to Noise Ratio >115dB Total Harmonic Distortion <0.005% (1W) / <0.01% (clip -1dB) Output Channels Amplifier Type High Efficiency, Emitter coupled Number of Channels... -
Page 19: Warranty · Service
Service In the unlikely event that your ESP2000D develops a problem, it must be returned to an authorized distributor, service centre or shipped directly to our factory. Because of the complexity of the design and the risk of electrical shock, all repairs must be attempted only by qualified technical personnel. -
Page 20: Notes
ESP2000D · Notes... - Page 21 ESP2000D · Notes...
- Page 22 ESP2000D · Notes...
- Page 24 The Future of Sound. Made Perfectly Clear. KV2 Audio International Nádražní 936, 399 01 Milevsko Czech Republic Tel.: +420 383 809 320 Email: info@kv2audio.com www.kv2audio.com KVV120145-00-01-0...
