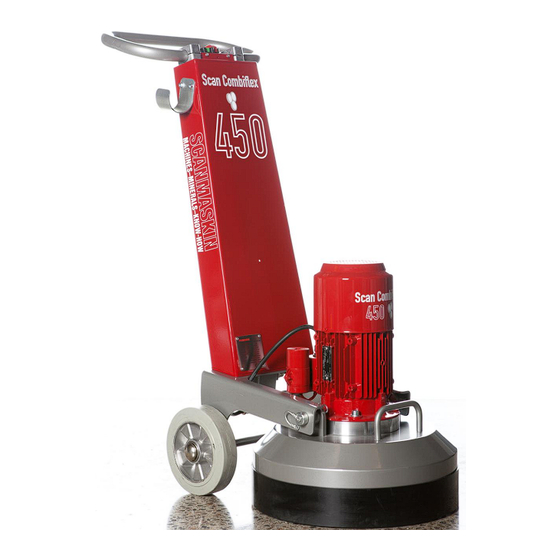

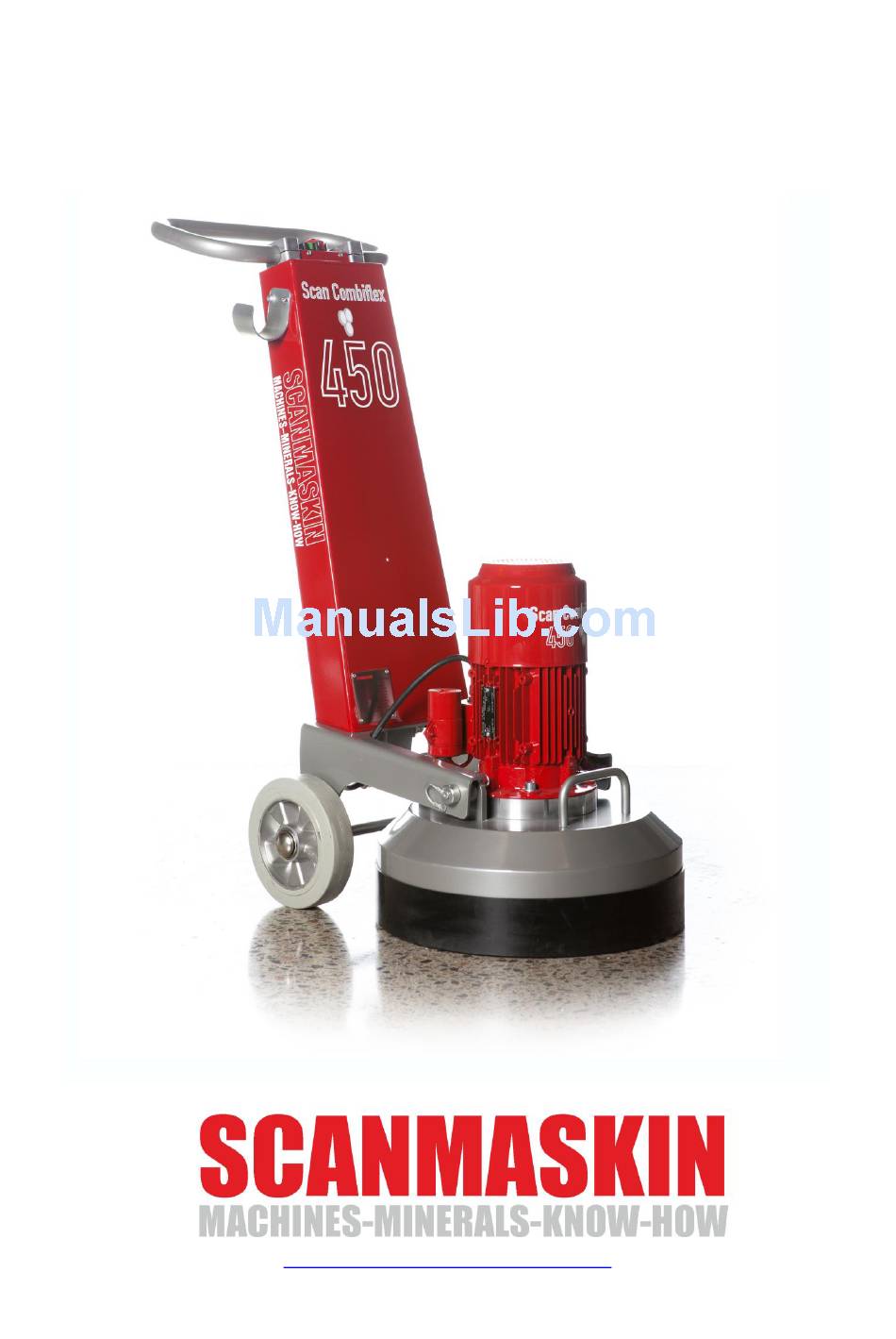

- Page 1 Scan Combiflex 450 Users guide http://www.scanmaskin.com...
- Page 2 Scan Combiflex 450 – Manual Dear Customer! Thank you for choosing Scanmaskin as your supplier. We wish you all the best with your new Scan Combiflex™ 450 and hope that it lives up to your expectations. Scanmaskin Sweden AB Claes-Göran Bergstrand...
- Page 3 450” hereby referred to as “SC-450”. SC-450 may only be used for grinding horizontal surfaces approved by Scanmaskin Sweden AB. If SC-450 is used for other purposes or handled in ways other than that described in this User Guide, Scanmaskin Sweden AB disclaims all responsibility. Especially note the section “...
-
Page 4: Table Of Contents
Scan Combiflex 450 – Manual Table of Contents Specifications ............................2 Electrical specifications ....................... 2 Mechanical specifications ......................3 Tools ............................. 4 Range of application ........................5 Scope of supply ..........................5 Overview ............................6 Safety Regulations ..........................8 Legend ............................8 Safety precautions ........................ - Page 5 Scan Combiflex 450 – Manual Grinding disc replacement / assembly ..................23 Cleaning the machine ......................... 23 Trouble shooting ........................23 5.6.1 Common faults ........................23 5.6.2 Error codes SC-450 NS ....................... 24 Spare parts ............................25 Gear barrel ..........................25 Center axis ..........................
-
Page 6: Specifications
Scan Combiflex 450 – Manual Chapter 1 1 Specifications The SC-450 is available with different power inputs. This is described in the different sections later on in this chapter. 1.1 Electrical specifications To find the specifications that apply to your machine, check the information plate on the machine. -
Page 7: Mechanical Specifications
Scan Combiflex 450 – Manual Chapter 1 1.2 Mechanical specifications Model SC-450 SC-450 2,2 NS / 2.2kW 17.7” 17.7” Grinding diameter 450 mm 450 mm 5.9” 5.9” 150 mm 150 mm Grinding plate diameter Grinding plate speed 950 rpm 950 rpm... -
Page 8: Tools
Figure 1-1 Standard SC-450 Figur 1-2 SC-450 NS 1.3 Tools The machine must be equipped with tools approved by Scanmaskin Sweden AB before operation. See “Grinding guide” for information about available tools and “4.14 Changing tools” for information about how to change the tools. -
Page 9: Range Of Application
Scan Combiflex 450 – Manual Chapter 1 1.4 Range of application SC450 is exclusively designed to process horizontal surfaces. SC450 must not be used for other purposes than stated in this user guide. The manufacturer will not be liable for damage or injury resulting from incorrect usage of SC450. -
Page 10: Overview
Scan Combiflex 450 – Manual Chapter 1 1.6 Overview Figure 1-3 SC-450 overview Figure 1-4 SC-450NS overview - 6 -... - Page 11 Scan Combiflex 450 – Manual Chapter 1 Item Description Reference Control device 4.3 Control devic Handle Dust collector hose holder Frame Dust collector outlet Wheel Dust cover Grinding head 4.14 Changing tools Lifting handle 3.3 Lifting Motor 1.2 Mechanical specifications...
-
Page 12: Safety Regulations
Scan Combiflex 450 – Manual Chapter 2 2 Safety Regulations Read this entire chapter carefully! Failure to comply with safety regulations may result in serious injuries or damages. 2.1 Legend Notation regarding safety Notation regarding electrical safety Notation regarding safety during transport... -
Page 13: Organizational Measures
Scan Combiflex 450 – Manual Chapter 2 2.3 Organizational measures The user guide is to be kept near the location where the machine is being operated and must be within reach at all times. In addition to this user guide general and legal regulations regarding accident prevention and environmental protection must be complied with as per local regulations. -
Page 14: Personnel Selection And Qualification
To perform maintenance work correctly it is imperative to be equipped with the proper tools for the task in question. Repairs may only be made by Scanmaskin Sweden AB certified service technicians. Some grinding work may generate sparks under certain circumstances. Personnel working with the machine must therefore be aware of the risk of fire and how to handle a fire situation properly. -
Page 15: Electrical Safety
Scan Combiflex 450 – Manual Chapter 2 Secure the work area around the machine in public areas providing a safety distance of at least 10 m (3.3 ft) from the machine. Faults must be immediately rectified. Carry out the switch on, and switch off operations in accordance with this user guide. -
Page 16: Cables
Scan Combiflex 450 – Manual Chapter 2 The work area must be secured against any third party entering the work area. Follow local electrical engineering regulations while working on the machine. Never leave a machine unattended. Use only tools that are insulated against electricity. -
Page 17: Safety Regarding Maintenance
Scan Combiflex 450 – Manual Chapter 2 2.8 Safety regarding maintenance Set the machine into the Safety off position before beginning any work on the machine. See “2.7 Definition of the “Safety off position””. Never work on the machine while power is still connected! All parts must have come to a complete stop before beginning any work! When the machine is lying down on its back it might tilt to it’s upwards position. -
Page 18: Lifting
Scan Combiflex 450 – Manual Chapter 2 2.9.2 Lifting The machine must be secured according to local safety regulations before lifted. No person is allowed beneath a lifted machine! The machine must be lifted according to the instructions in “3.3 Lifting”. Observe the machines point of balance before lifting! Failure to comply with these regulations may cause injuries or damages. -
Page 19: Transportation
Scan Combiflex 450 – Manual Chapter 3 3 Transportation 3.1 Safety precautions Read “2.9 Safety regarding transport” before attempting to transport the machine. 3.2 Manual transportation Detach the tools according to the instructions in “4.14 Changing tools”. Tilt the machine backwards. -
Page 20: Inside Vehicles
Scan Combiflex 450 – Manual Chapter 3 3.5 Inside vehicles Detach the tools according to the instruction in “4.14 Changing tools”. Secure the machine inside the vehicle. Secure the machine according to local transport safety regulations before transporting the machine inside a vehicle. -
Page 21: Operation
Scan Combiflex 450 – Manual Chapter 4 4 Operation 4.1 Precautions Any machine, if it is not used according the regulations, may be hazardous for operating, setting-up and service personnel. The operating authority is responsible for compliance with the safety regulations during operation and maintenance, and for the use of safety devices supplied with the machine, as well as the provision of appropriate additional safety devices! Never operate the machine without proper tools. -
Page 22: Control Device Sc-450
Scan Combiflex 450 – Manual Chapter 4 4.3 Control device SC-450 Figure 4-2 SC-450 control device Item Function Description Stop Stops the SC-450 Start Starts the SC-450 Table 4-1 Description of control device 4.4 Start up See”4.1 Precautions” before starting the machine. -
Page 23: Control Panel Sc 450 Ns
Scan Combiflex 450 – Manual Chapter 4 4.6 Control panel SC 450 NS Figure 4-3 Control panel of SC-450 NS. Text Description Selects rotation direction SPEED Selects speed EMERGENCY STOP Emergency stop STOP Stops the machine START Starts the machine Table 4-2 Description of the control panel. -
Page 24: Start Up The Sc-450 Ns
Scan Combiflex 450 – Manual Chapter 4 To empty the water tank before lying down transport, increase the water flow to a maximum and let the water pour out. Make sure the tank is empty before lying down transport. Empty the tank before long time storage. -
Page 25: Safety Off Position
Scan Combiflex 450 – Manual Chapter 4 4.12 Safety off position When working on the machine, either maintenance or tool change, the machine must be set to the “Safety off position”. See “2.7 Definition of the “Safety off position”” for further information. -
Page 26: Maintenance
Scan Combiflex 450 – Manual Chapter 5 5 Maintenance 5.1 Precautions Set the machine into the Safety off position before beginning any work on the machine. See “2.7 Definition of the “Safety off position””. Read “2.6 Electrical safety” before beginning any maintenance work. -
Page 27: Grinding Disc Replacement / Assembly
Scan Combiflex 450 – Manual Chapter 5 5.4 Grinding disc replacement / assembly Follow these steps to replace the Scan-On plate Make sure the machine is in its “Safety off position” Tilt the machine backwards and secure it. -
Page 28: Error Codes Sc-450 Ns
Scan Combiflex 450 – Manual Chapter 5 5.6.2 Error codes SC-450 NS Code Description Cause Correction One of the three phases is missing from the Inspect the fuses in the worksites fuse box A2001 Over current Inspect cables power supply ... -
Page 29: Spare Parts
Scan Combiflex 450 – Manual Chapter 5 6 Spare parts 6.1 Gear barrel - 25 -... -
Page 30: Center Axis
Scan Combiflex 450 – Manual Chapter 5 6.2 Center axis - 26 -... -
Page 31: Spindel Axis
Scan Combiflex 450 – Manual Chapter 5 6.3 Spindel axis - 27 -... -
Page 32: Grinding Head
Scan Combiflex 450 – Manual Chapter 5 6.4 Grinding head - 28 -... -
Page 33: Warranty
This product from Scanmaskin Sweden AB comes with a twelve month warranty. If the product does not function satisfactorily during this period, Scanmaskin will return the product to full working order for normal use which the product is intended for – with no charge for labor or spare parts, according to the following conditions: The warranty only applies to persons that have legal right to the equipment during the warranty period. -
Page 34: Eu Declaration
Scan Combiflex 450 – Manual Chapter 6 8 EU Declaration Declaration of CE conformity Manufacturer Scanmaskin Sweden AB Address Heljesvägen 10 427 36 Lindome / Gothenburg Sweden Product Grinding machine Product name Scan Combiflex 450 Serial number _______________ The product conforms with the following EU guidelines... -
Page 35: Alphabetical Reference
Scan Combiflex 450 – Manual Chapter 7 9 Alphabetical reference Contact information ............32 Overview Control device ..............18 SC-450................6 Control panel ..............19 Separation of machine ........... 15 Dimensions Snap-On-plate SC-450 ................3 replacing ..............23 Specifications Electrical ..............2 Error codes .............. -
Page 36: Contact Information
Scan Combiflex 450 – Manual Chapter 11 10 Contact information Sweden (Head Office) Heljesvägen 10 Box 187 SE-437 22 Lindome Phone: +46 (0) 31 99 49 70 Fax: +46 (0) 31 99 48 70 E-mail: info@scanmaskin.se Website: www.scanmaskin.se Denmark Torvegade 22... - Page 37 Scan Combiflex 450 – Manual Chapter 11 - 33 -...
