Summary of Contents for Rotel RDA-06

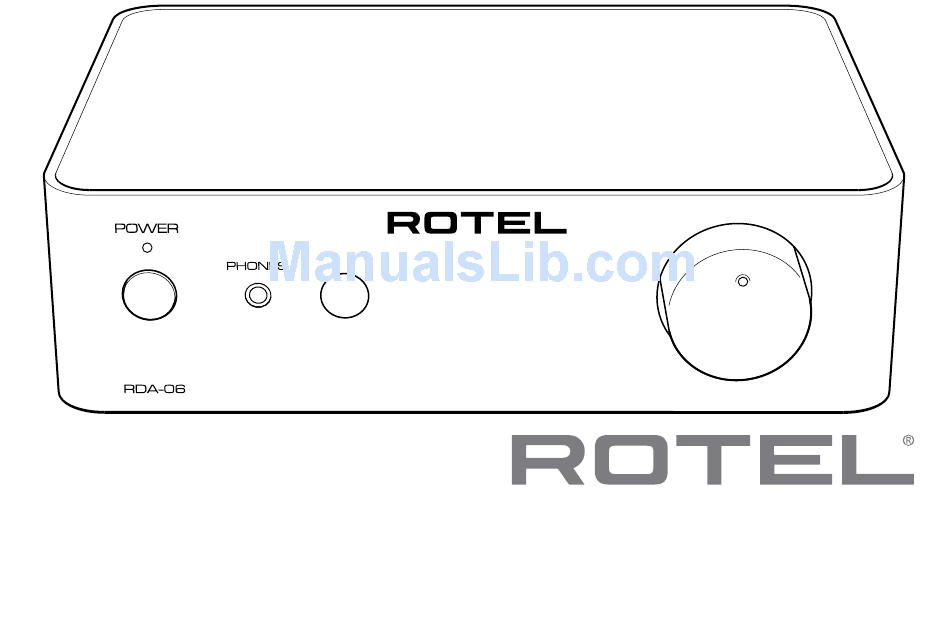

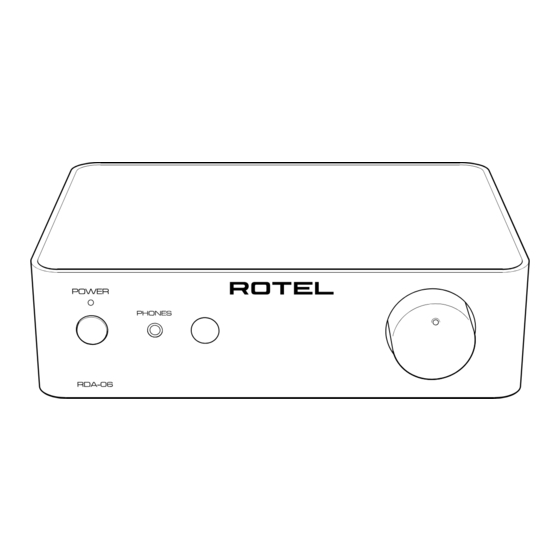

- Page 1 RDA-06 Integrated Amplifier OwnerÊs Manual...
-
Page 2: Table Of Contents
About Rotel ........ -
Page 3: Important Safety Instructions
Important Safety Instructions WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not expose the unit to dripping or splashing. Do not place objects filled with liquids, such as vases, on the unit. Do not allow foreign objects to get into the enclosure. - Page 4 The batteries in the remote control should not be exposed to excessive temperature such as sunshine, fire or other heat sources. Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE).
-
Page 5: Figure 1: Controls And Connections
Figure 1: Controls and Connections POWER PHONES RDA-06... -
Page 6: Figure 2: Remote Control
Input selectors D-1 and D-2 toggles between Coaxial and Optical. [For use with Rotel RDD-06] Playback buttons. Used to control USB device connected to the front USB. [For use with Rotel RDD-06] Mute button to mute the volume. Volume controls. -
Page 7: Figure 3: Inputs And Speaker Outputs Connections
Figure 3: Inputs and Speaker Outputs Connection SPPEAKER RDA-06 DIGITAL INPUT DC IN RDD-06 RIGHT LEFT COAX COAX OUTPUT DIGITAL-1 DIGITAL-2 PC-USB... -
Page 8: Important Notes
Important Notes When making connections be sure to: Turn off all the components in the system before hooking up any components, including loudspeakers. Turn off all components in the system before changing any of the connections to the system. It is also recommended that you: ... - Page 9 Bij het maken van de verbindingen: Zorg dat niet alleen de RDA-06 maar de gehele installatie uitstaat, als nog niet alle verbindingen gemaakt zijn. Zorg dat niet alleen de RDA-06, maar de gehele installatie ook uitstaat, als u verbindingen gaat wijzigen.
-
Page 10: About Rotel
At Rotel, we are proud to do our part. We have reduced the lead content in our electronics by using special ROHS solder, while our new Class D (not digital) amplifiers are up to five times more efficient than our legacy designs and still deliver power and performance. -
Page 11: Getting Started
Fill out and send in the ownerÊs registration card packed with the RDA-06. Also be sure to keep the original sales receipt. It is your best record of the date of purchase, which you will need in the event warranty service is ever required. -
Page 12: Power And Control
RDA-06 and the AC power outlet. If you are going to be away from home for an extended period of time such as a month-long vacation, it is a sensible precaution to unplug the RDA-06 (as well as other audio and video components) while you are away. -
Page 13: Input Signal Connections 6
Speaker Wire Selection Use insulated two-conductor stranded wire to connect the RDA-06 to the speakers. The size and quality of the wire can have an audible effect on the performance of the system. Standard speaker wire will work, but can result in lower output or diminished bass response, particularly over longer distances. -
Page 14: Speaker Connections
Turn off all the components in the system before connecting the speakers. The RDA-06 has one set of color coded binding posts. These connectors accept bare wire, connector lugs, or dual banana type connectors (except in the European Community countries where their use is not permitted). -
Page 15: Headphone Output 3
This is the sensor for receiving IR signals from the supplied remote control. Please do not block this sensor. Rear USB Upgrade 7 The rear mini USB socket labeled UPGRADE is for updating the RDA-06 and should be handled only by a certified technician. -
Page 16: Troubleshooting
Troubleshooting Most difficulties in audio systems are the result of poor or wrong connections, or improper control settings. If you encounter problems, isolate the area of the difficulty, check the control settings, determine the cause of the fault and make the necessary changes. If you are unable to get sound from the RDA- 06, refer to the suggestions for the following conditions: Power Indicator Is Not Illuminated The Power Indicator should be illuminated whenever the unit is plugged into the wall power outlet. -
Page 17: Specifications
> 5.0 V Rotel reserves the right to make improvements without notice. Speaker Impedance Speaker Impedance Rotel and the Rotel Hifi logo are registered trademarks of The Rotel Co., 4 ohms minimum Ltd. Tokyo, Japan. Signal to Noise Ratio Signal to Noise Ratio (IHF „A‰ weighted) - Page 18 The Rotel Co. Ltd. Tachikawa Bldg. 1F., 2-11-4, Nakane, Meguro-ku, Tokyo,152-0031 Japan Rotel of America 54 Concord Street North Reading, MA 01864-2699 Phone: +1 978-664-3820 Fax: +1 978-664-4109 Rotel Europe Dale Road Worthing, West Sussex BN11 2BH England Phone: + 44 (0)1903 221 761 Fax: +44 (0)1903 221 525 www.rotel.com...
