• The system can support video resolution
up to 1920 × 1080p.
• Some USB devices may not work with this
system.
• The system can recognize Mass Storage
Class (MSC) devices (such as flash
memory or an HDD), Still Image Capture
Devices (SICDs), and 101-key keyboards.
• The system may not play high bit rate
video files from a DATA CD smoothly. It is
recommended to play high bit rate video
files using a DATA DVD or DATA BD.

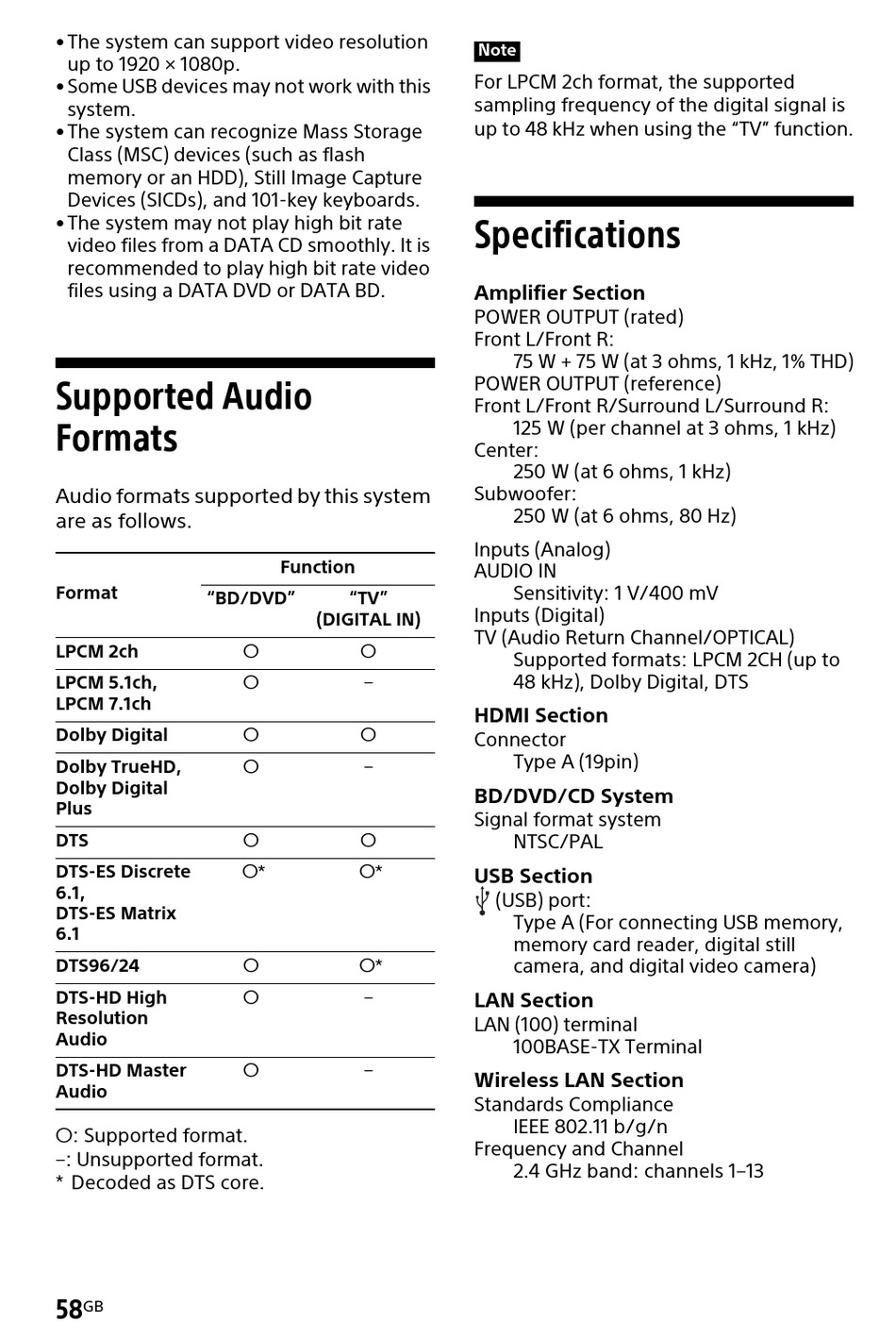

Supported Audio
Formats
Audio formats supported by this system
are as follows.
Format
"BD/DVD"
LPCM 2ch
LPCM 5.1ch,
LPCM 7.1ch
Dolby Digital
Dolby TrueHD,
Dolby Digital
Plus
DTS
DTS-ES Discrete
6.1,
DTS-ES Matrix
6.1
DTS96/24
DTS-HD High
Resolution
Audio
DTS-HD Master
Audio
a: Supported format.
–: Unsupported format.
* Decoded as DTS core.
58
GB
Function
"TV"
(DIGITAL IN)
a
a
a
–
a
a
a
–
a
a
a*
a*
a
a*
a
–
a
–
Note
For LPCM 2ch format, the supported
sampling frequency of the digital signal is
up to 48 kHz when using the "TV" function.
Specifications
Amplifier Section
POWER OUTPUT (rated)
Front L/Front R:
75 W + 75 W (at 3 ohms, 1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Surround L/Surround R:
125 W (per channel at 3 ohms, 1 kHz)
Center:
250 W (at 6 ohms, 1 kHz)
Subwoofer:
250 W (at 6 ohms, 80 Hz)
Inputs (Analog)
AUDIO IN
Sensitivity: 1 V/400 mV
Inputs (Digital)
TV (Audio Return Channel/OPTICAL)
Supported formats: LPCM 2CH (up to
48 kHz), Dolby Digital, DTS
HDMI Section
Connector
Type A (19pin)
BD/DVD/CD System
Signal format system
NTSC/PAL
USB Section
(USB) port:
Type A (For connecting USB memory,
memory card reader, digital still
camera, and digital video camera)
LAN Section
LAN (100) terminal
100BASE-TX Terminal
Wireless LAN Section
Standards Compliance
IEEE 802.11 b/g/n
Frequency and Channel
2.4 GHz band: channels 1–13
