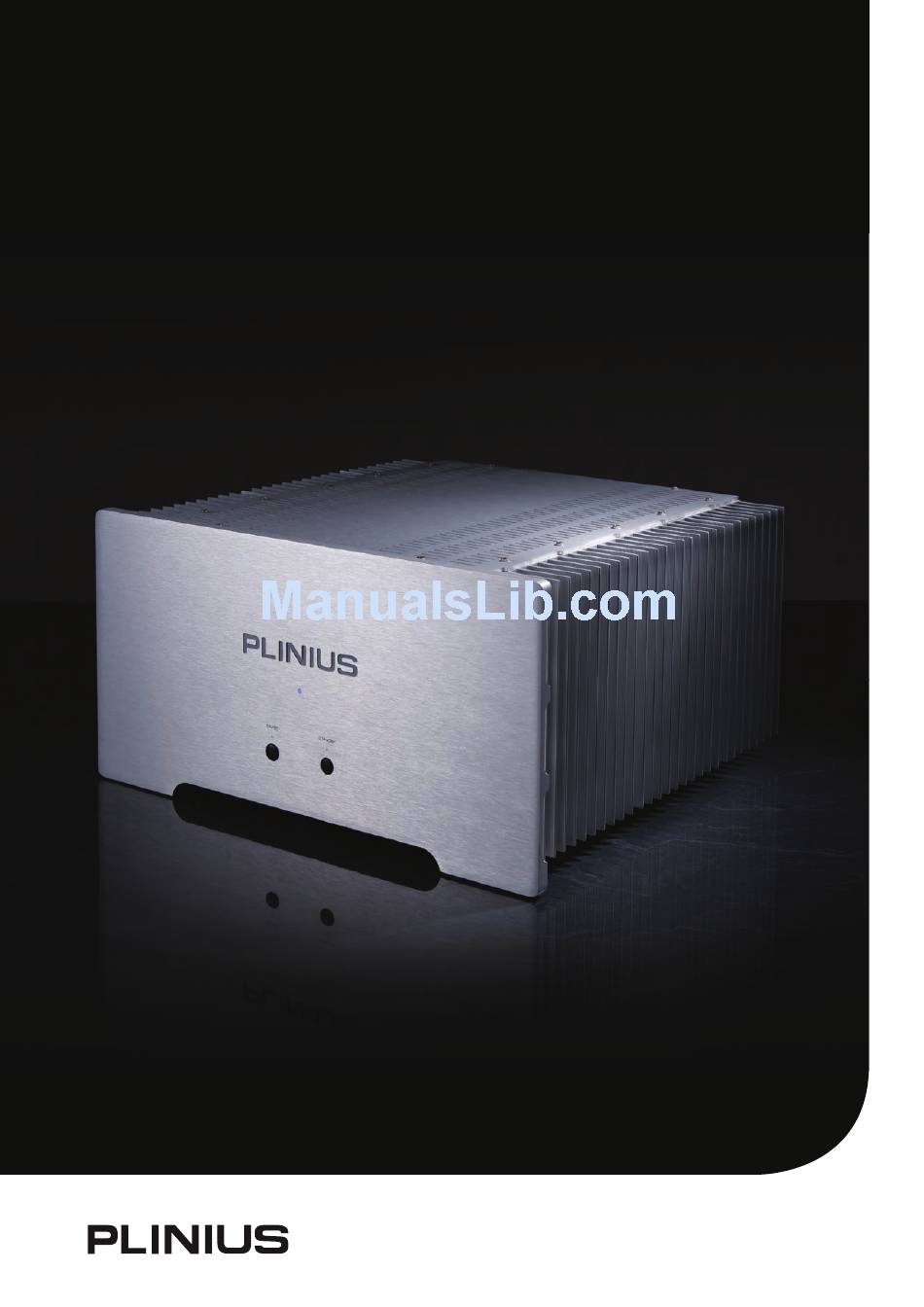

  • Page 1 KIOKIO Power Amplifier Instruction Manual The heart of music www.pliniusaudio.com...

  • Page 3: Table Of Contents

    All operational, technical and descriptive material in this publication is subject to change at any time without notice. For further product information or queries, please contact your Plinius dealer. Plinius products are designed and manufactured by Plinius Audio Limited, New Zealand.

  • Page 4: Introduction

    We have designed and manufactured this amplifier to reproduce your favourite music faithfully and accurately. With a little care and a full understanding of the operating recommendations in this manual, your Plinius Kiokio Power Amplifier will provide years of high-quality, trouble-free performance.

  • Page 5: Design Philosophy

    Design Philosophy From a distance you can see that the design of the Plinius products is more than an applied styling exercise to the front panel. We have started from the ground up to produce a casing for our electronics that is unrivalled in its physical strength and visual simplicity.

  • Page 6: Unpacking

    • Ensure a minimum of 400mm clearance on all sides of your Plinius unit to other equipment and the shelf above. Ensure the space between the chassis and shelf below the unit is unobstructed at all times.

  • Page 7: Care & Maintenance

    SURFACE CLEANING From time to time you may wish to clean the surface of your Plinius equipment to remove dust, or any material build up from the atmosphere or on commonly used controls. Your Plinius product is made up of parts that have a hard anodised or a powder coat finish and will clean easily without being damaged.

  • Page 8: Precautions

    PLEASE TAKE SPECIAL NOTE OF THE FOLLOWING PRECAUTIONS BEFORE OPERATING YOUR NEW AMPLIFIER. • The Plinius Kiokio Power Amplifier can deliver in excess of 300 watts into 8 ohms. This amplifier is also capable of a very large peak current delivery. •...

  • Page 9: Front Panel Functions

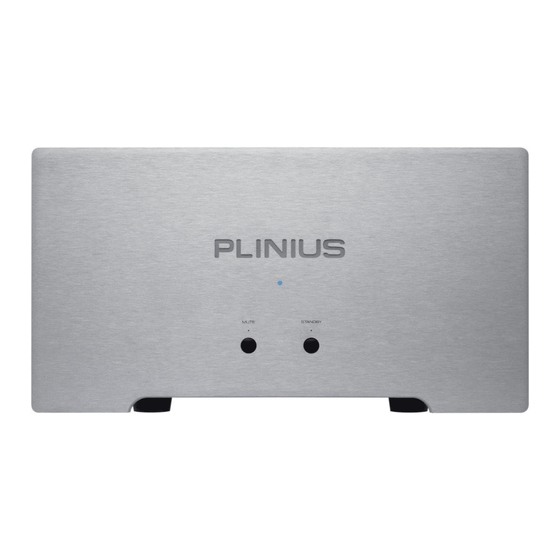

    Front Panel Functions The front of the Plinius Kiokio Power Amplifier incorporates all the facilities you will require on a daily basis. 1. POWER LED An LED in the centre of the front panel indicates the power is on. When first switched on, the display will vary in brightness until the initialisation sequence is completed, after which the LED remains lit.

  • Page 10: Rear Panel Functions

    1. INPUT TERMINALS Input terminals for your Plinius Kiokio Power Amplifier are easily accessible and fitted near the top centre area of the rear panel. RCA INPUTS: These standard RCA terminals are for use with unbalanced signals from most signal sources such as audio preamplifiers.
  • Page 11 The Amplifier Configuration Selector (ACS) is a unique switching method that exploits all of the operational features of your Plinius Kiokio Power Amplifier. By using this switch it is possible to operate your amplifier with either balanced or unbalanced signals.
  • Page 12 Plinius Kiokio has remote trigger terminals fitted to the rear panel. By connecting a processor with a remote trigger signal to these terminals, the Kiokio can be put in and out of Standby by the processor to which it is connected. When in Standby the amplifier draws less current and will operate at minimum temperature.

  • Page 13: Installation & Operation

    FOR PLACEMENT & OPERATION OF THIS PRODUCT. CONNECTIONS Connections to your Plinius Kiokio should be made in the same order as they are listed in this section. DO NOT attempt to connect your Plinius Kiokio until you have read and fully understood these instructions. Although these instructions refer to the connection of a preamplifi er, the Kiokio can also be safely installed into multimedia systems by following the same installation guidelines.
  • Page 14 Bi-wiring uses two pairs of loudspeaker cables for each channel loudspeaker. You will notice that the rear panel of your Plinius Kiokio has two pairs of output terminals for this purpose. Be sure to follow correct practises for stereo and mono configurations when using bi-wiring.
  • Page 15 Check the wall outlet is switched OFF, then connect the local mains plug end of the lead to the wall outlet. Check the Kiokio is switched OFF, and connect the IEC end of the cable to the IEC socket at the back of the Kiokio. With the cord fully connected, switch the wall outlet ON.

  • Page 16: Product Features

    Product Features ERROR DETECTION The Plinius Kiokio Power Amplifier has in-built error detection. This will function under the following conditions: • When the amplifier is overdriven/clipped • If any internal fuse is damaged. Should either of these circumstances arise the amplifier will disconnect both channels and mute the input.
  • Page 17 TEMPERATURE MONITORING The Plinius Kiokio Amplifier has temperature-monitoring circuitry. When the amplifier reaches an internal temperature of 65 degrees C, the amplifier will be shut down until the temperature returns to normal. When the temperature has exceeded the set point, the power LED will turn off and the mute LED will flash on and off quickly.

  • Page 18: Loudspeaker Selection

    Loudspeaker Selection Your Plinius Kiokio Power Amplifier is designed for use with high fidelity loudspeakers. It should not be used to operate any other type of appliance or equipment. Be certain that your loudspeakers can handle most of the rated output power of this amplifier.

  • Page 19: Troubleshooting

    NOTE: If the unit immediately or repeatedly suffers rail fuse failure, there may be a major problem and you should contact your Plinius dealer. POWER FAILURE The unit may have suffered mains fuse failure or be in thermal overload protection mode.

  • Page 20: Specifications

    Specifications POWER 310 watts continuous per channel into 8 ohms. Both channels driven from 20Hz to 20kHz at less than 0.2% total harmonic distortion. FREQUENCY RESPONSE 20Hz to 20kHz +/–0.2dB –3dB at 70 kHz DISTORTION Typically <0.05% THD at rated power 0.1% THD and IM worst case prior to clipping CURRENT OUTPUT 100A short duration peak per channel.

  • Page 21: Index

    Index ACS (Amplifier Configuration Selector) .......9 Balanced Signal ..................9 Bi-wiring ......................12 Care & Maintenance................5 Display LED....................7 Error Detection ..................14 Front Panel Layout ................7 Fuse Protection ..................14 Ground Lift Switch ................10 IEC Power Connector ................9, 13 Input Terminals ..................8, 11 Loudspeaker Impedance ..............16 Loudspeaker Power ................16 Mains/Line Fuse ..................14 Mains Supply Connection .............13...
  • Page 22 Note: This page has been left blank intentionally...
