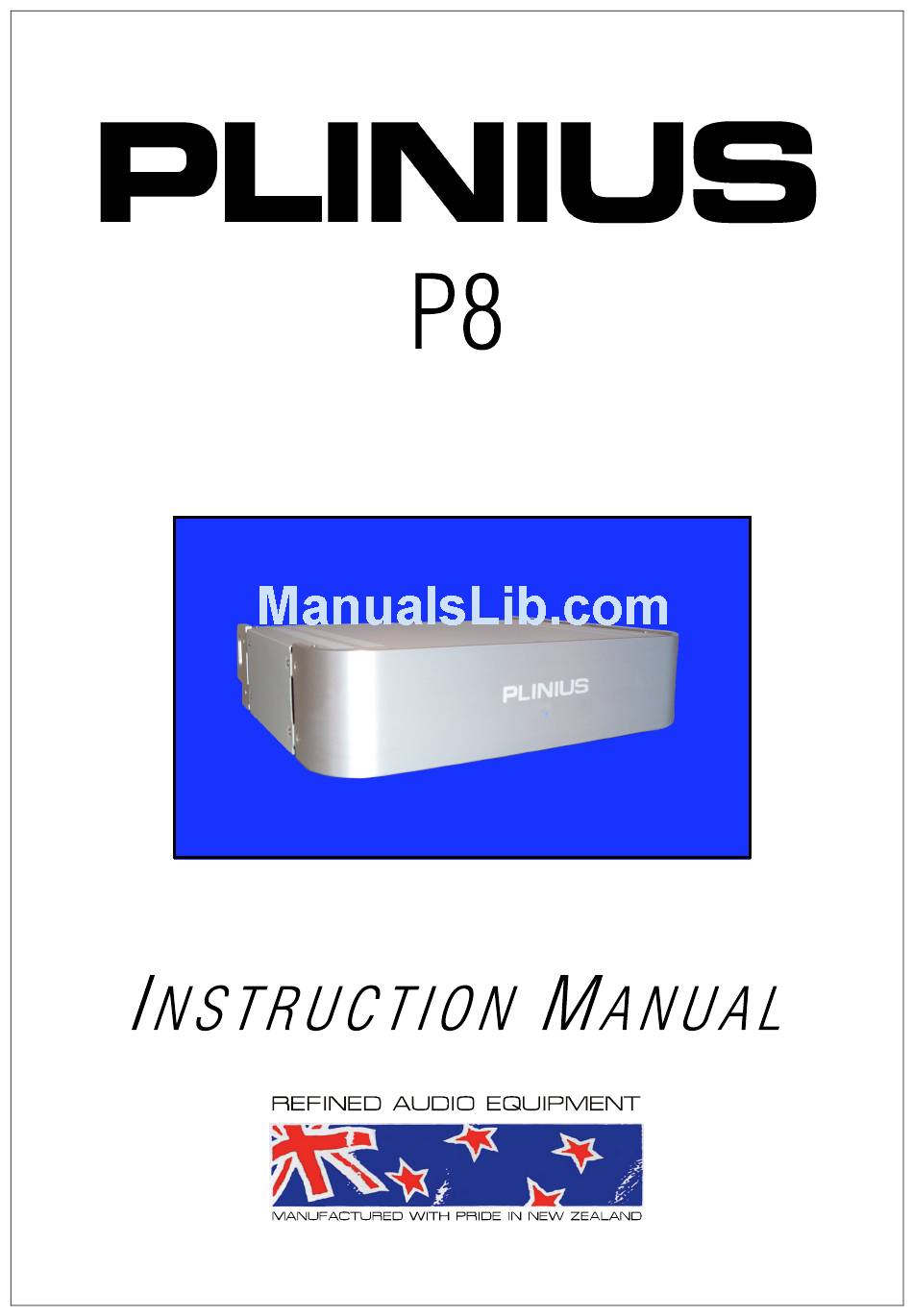

- Page 1 S t e r e o P o w e r A m p l i f i e r...
- Page 3 We have designed and manufactured this amplifier to reproduce your favourite music faithfully and accurately. With a little care and a full understanding of the operating recommendations in this manual, your Plinius P8 Power Amplifier will provide years of high-quality, trouble-free performance. Serial Number: Date of Manufacture: ...
- Page 4 Amplifier Features – Front Panel ...Page 6 Amplifier Features – Rear Panel ...Page 7 Installation and Operation ...Page 9 Input/Output Connection ...Page 10 P8 Features ...Page 12 Loudspeaker Selection ...Page 13 Specifications ...Page 14 Index ...Page 15 Contact Details ...Page 16...
- Page 5 Please take special note of the following precautions before operating your new amplifier: The Plinius P8 Power Amplifier can deliver in excess of 175 watts into 8 ohms. This amplifier is • also capable of a very large peak current delivery.
-
Page 6: Display Led
F F F F RONT RONT RONT RONT DISPLAY LED DISPLAY LED DISPLAY LED DISPLAY LED An LED on the front panel indicates that the power is on. When first switched on, the display LED will pulse for ten seconds - this is an initialisation sequence, after which the LED remains lit during the time the amplifier is powered on. -
Page 7: Input Terminal
INPUT TERMINAL INPUT TERMINAL The input terminals for your Plinius P8 Power Amplifier are easily accessible at the top centre of the rear panel. These standard RCA terminals are for use with unbalanced signals (single ended RCA) from a line level output preamplifier. - Page 8 By connecting a processor with a 5-12V remote trigger signal to these terminals, the P8 can be put in and out of standby/mute by the processor to which it is connected. When in standby/mute the amplifier draws less current and will operate at minimum temperature. The output relays are also open, disconnecting the loudspeakers.
- Page 9 (slots in the lid and base) are not covered or restricted in any way. The Plinius P8 design incorporates a very high level of mechanical de-coupling of the input and output. It can however still be influenced by acoustical feedback in the operating environment. The use of acoustic cones, or a suitably spiked amplifier stand or table, may further enhance the performance of this amplifier.
- Page 10 Connect your preamplifier to the RCA inputs on the back of the Plinius P8. Make sure you connect the red coded cable to the red RIGHT RCA input, and the black (or white) cable to the black LEFT RCA input. Also make sure the RCA connectors are a snug fit and are inserted all the way in.
- Page 11 RM-UP PERIOD RM-UP PERIOD You will find that the Plinius P8 will become noticeably ‘purer’ in sound after being on for a period of time. We usually recommend waiting at least 24 hours before expecting the best quality of sound reproduction from your amplifier.
-
Page 12: Mains/Line Fuse
FUSE PRO FUSE PROTECTION TECTION FUSE PRO FUSE PRO TECTION TECTION When any rail fuse is damaged one or more fuse warning LED’s will light. These LED’s are located next to the fuse that has blown. To replace the fuse, steady the amplifier, then firmly push in the round fuse cap with your fingers. - Page 13 Your Plinius P8 Power Amplifier is designed for use with high fidelity loudspeakers. It should not be used to operate any other type of appliance or equipment. Choice of loudspeakers is one of personal taste, providing the chosen loudspeakers are suitable for use with your amplifier.
- Page 14 2 2 2 2 00-WATTS RMS PER 00-WATTS RMS PER CHANNEL INTO 00-WATTS RMS PER 00-WATTS RMS PER CHANNEL INTO CHANNEL INTO CHANNEL INTO 8 OHMS. BOTH CHANNELS DRI BOTH CHANNELS DRIVEN FROM 20Hz TO 20kHz AT LE BOTH CHANNELS DRI BOTH CHANNELS DRI VEN FROM 20Hz TO 20kHz AT LE VEN FROM 20Hz TO 20kHz AT LE...
- Page 15 Bi-wiring...Page 10 Date of Manufacture ...Page 3 Front Panel Layout...Page 6 Fuse Protection ...Page 12 IEC Power Connector... Pages 8,11 Input Terminals ... Pages 8,11 Loudspeaker Impedance ...Page 13 Loudspeaker Power ...Page 13 Mains/Line Fuse...Page 12 Mains Supply Connection...Page 11 Mains Switch ...Page 7 Operating Temperature ...
- Page 16 All operational, technical and descriptive material published here is subject to change at any time without notice. For further product information or queries, please contact us at the address below. PLINIUS products are designed and manufactured by: PLINIUS PLINIUS PLINIUS Audible Technologies Ltd.
