Summary of Contents for Plinius 8200 MkII

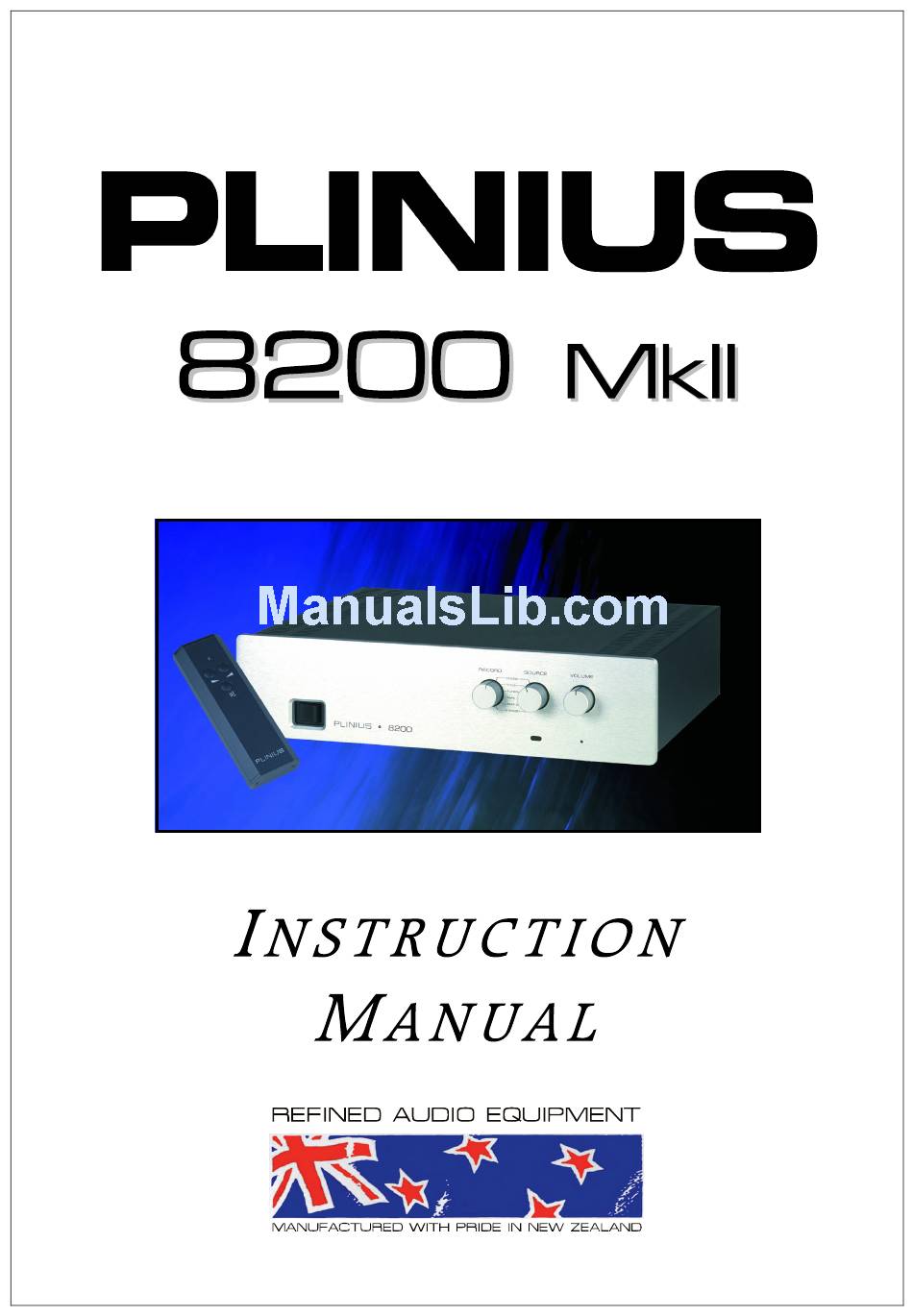

- Page 1 C l a s s A B I n t e g r a t e d A m p l i f i e r...
- Page 3 CONGRATULATIONS on your decision to become the proud owner of this CONGRATULATIONS CONGRATULATIONS CONGRATULATIONS This manual has been prepared to help you understand the operation of your amplifier, and to provide information about its design and the variety of ways it may be used. We have designed and manufactured this amplifier to reproduce faithfully and accurately, your favourite music.
- Page 4 Introduction ...Page 3 Precautions ...Page 5 Amplifier Features – Front Panel ...Page 6 Amplifier Features – Rear Panel ...Page 8 Installation and Operation ...Page 10 Input/Output Connection ...Page 11 8200 Features ...Page 14 Loudspeaker Selection ...Page 16 Specifications ...Page 17 Index ...Page 18 Contact Details ...Page 19...
- Page 5 Please take special note of the following precautions before operating your new amplifier: • The Plinius 8200 Integrated Amplifier can deliver in excess of 175 watts into 8 ohms. This amplifier is also capable of a very large peak current delivery. •...
-
Page 6: Mains Switch

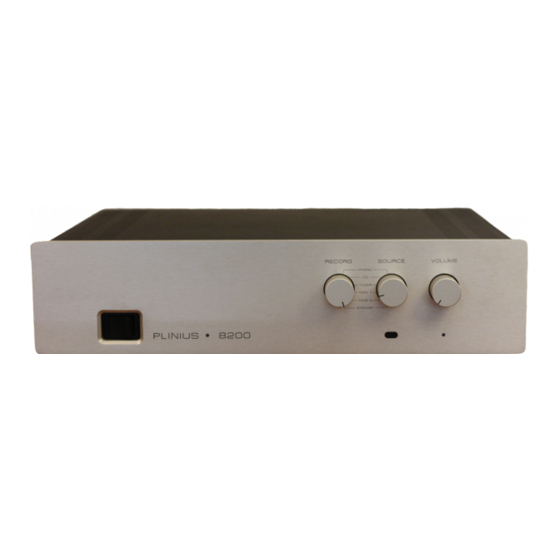

The front of the Plinius 8200 Integrated Amplifier incorporates all the facilities PLINIUS RONT ANEL OURCE ELECTORS MAINS SWITCH The heavy-duty rocker switch to the left of the panel turns the Mains/Line Power to the amplifier ON or OFF. Depress the right hand side of the switch to turn the amplifier on. The amplifier draws a moderately high current when switched on, so it is not good practice to rapidly turn the Mains switch on and off repeatedly. -
Page 7: Record Selector
RECORD SELECTOR This rotary switch allows recording of any of the five different inputs available on the back panel. Note that when recording, the source that is being listened to will not be interfered with. For example, it is possible to be listening to the CD input whilst recording from the TUNER input. -
Page 8: Input Terminals
COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICING PERSONNEL. LEFT CHANNEL FUSES NPUT UTPUT ERMINALS YPASS WITCHES AINS RIGHT CHANNEL LEFT CHANNEL PLINIUS 8200 MkII INTEGRATED AMPLIFIER SERIAL No. VOLTAGE POWER CONSUMPTION 400V/A OCKET PLINIUS dealer PLINIUS PLINIUS... -
Page 9: Tape Outputs
TAPE OUTPUTS These RCA outputs are situated next to the tape RCA inputs, and are provided to interface to a pair of line level recording devices. The position of the record selector on the front panel determines from which device a recording is being made. As these tape outputs are always ‘live’, both can be used to record the chosen signal at any time. -
Page 10: Placement And Ventilation
PLACEMENT AND VENTILATION Your Plinius 8200 operates at a moderately high temperature, especially when being driven hard. The ideal location is upon a rigid stand, or floor mounted away from direct contact with any temperature sensitive materials or deep pile carpets. Ventilation through and around the amplifier should also be kept unimpeded, so ensure that the heat vents (slots in the lid and base) are not covered or restricted in any way. - Page 11 It is important that you connect your loudspeakers (outputs) and source components (inputs) to the Plinius 8200 Integrated Amplifier correctly to ensure the amplifier is not damaged, and sounds its best with your system. Now that you have read and familiarised yourself with the connections on the back of the amplifier, as covered in the previous section, we will now describe in detail the way in which you can connect the amplifier to your system.
-
Page 12: Recording Music
SETTING THE PROCESSOR SWITCH The processor switch needs to be in ‘bypass’ when listening to music directly from selected source inputs such as CD or tuner. If you are not using an external processor in either way as described above, ensure this switch is set to ‘bypass’. -
Page 13: Connecting The Mains Supply
To achieve a sound performance that is correctly aligned to your room, make sure all of the leads carrying signals for the RIGHT channel loudspeaker are connected to the RIGHT input to the amplifier from your preamplifier or CD player etc. Signals for the LEFT channel should be wired in a similar fashion. CONNECTING THE MAINS SUPPLY Now that your Plinius 8200 Integrated Amplifier is configured to your system correctly, the mains cable can be plugged into the IEC socket on the back of the amplifier. -
Page 14: Remote Control
REMOTE CONTROL Provided with your Plinius 8200 is a three function remote control. The two buttons at the top of the remote adjust the volume level, and the button below switches the amplifier in and out of mute. Two AAA batteries power the remote, and these are replaced by removing the two posi-drive screws holding the bottom plate in place. -
Page 15: Mains/Line Fuse
To re-fit the fuse, insert the fuse and gently turn it as far as possible anticlockwise (to the left). Now push the fuse cap in firmly, then turn clockwise (to the right) until it comes to a stop. Release inward pressure on the cap and the fuse will be fitted securely. - Page 16 Your Plinius 8200 Integrated Amplifier is designed for use with high fidelity loudspeakers. It should not be used to operate any other type of appliance or equipment. Choice of loudspeakers is one of personal taste, providing the chosen loudspeakers are suitable for use with your amplifier.
-
Page 17: Specifications
175-WATTS RMS PER CHANNEL INTO 8 OHMS. BOTH CHANNELS DRIVEN FROM 20Hz TO 20kHz AT LESS THAN 0.2% TOTAL HARMONIC DISTORTION. F F F F R R R R : : : : 20Hz to 20kHz ±0.2dB. -3dB at 5Hz and -3dB at 70kHz. REQUENCY REQUENCY ESPONSE... - Page 18 Bi-wiring...Page 12 Date of Manufacture ...Page 3 Front Panel Layout...Page 6 Fuse Protection ...Page 14 IEC Power Connector... Pages 10,13 Input Terminals ... Pages 8,11 Loudspeaker Impedance ...Page 16 Loudspeaker Power ...Page 16 Mains/Line Fuse...Page 15 Mains Supply Connection...Page 13 Mains Switch ...Page 6 Mute Switch...Page 9 Operating Temperature ...
- Page 19 All operational, technical and descriptive material published here is subject to change at any time without notice. For further product information or queries, please contact us at the address below. PLINIUS products are designed and manufactured by: PLINIUS PLINIUS PLINIUS Audible Technologies Ltd.
