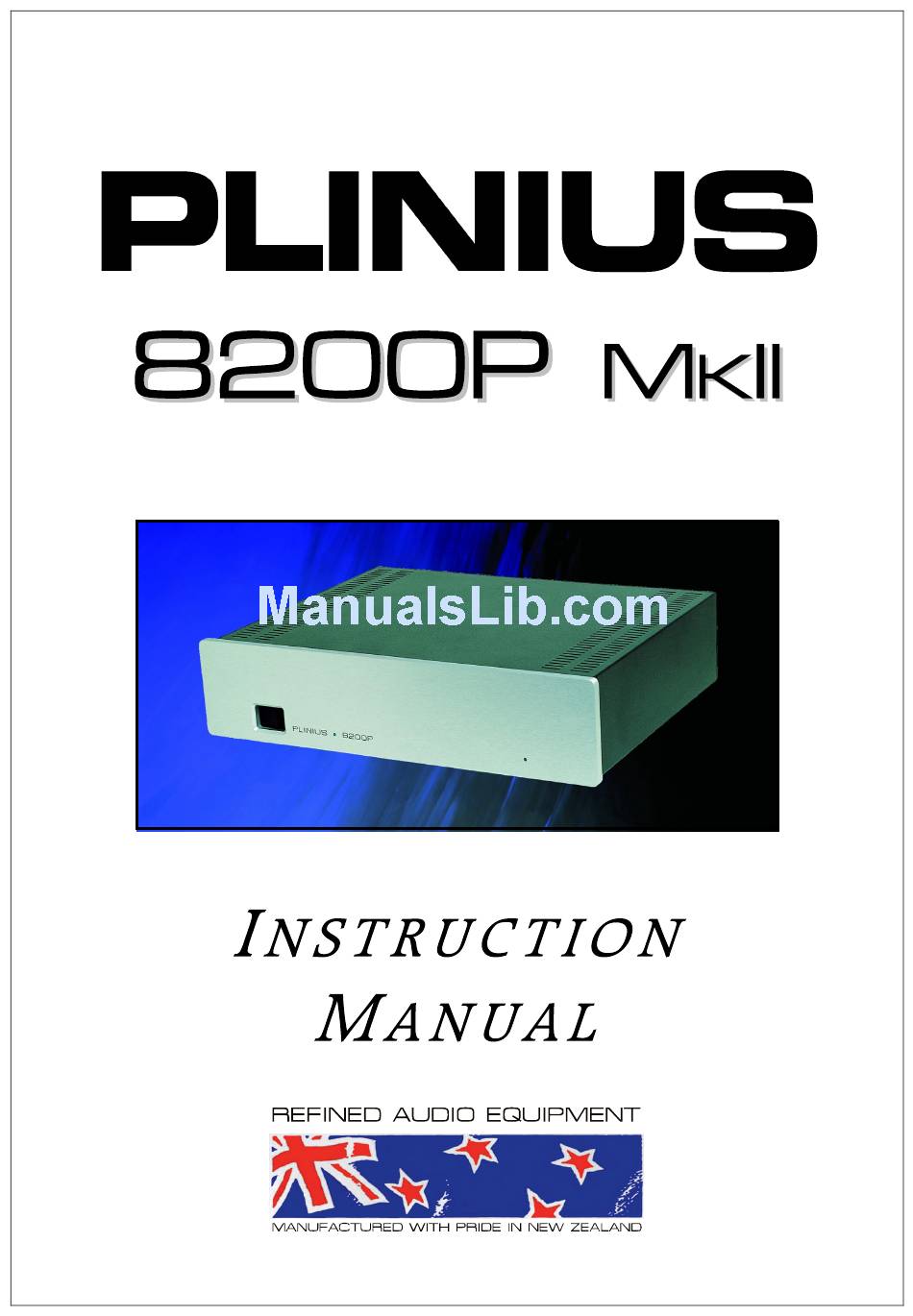

- Page 1 C l a s s A B P o w e r A m p l i f i e r...
- Page 3 CONGRATULATIONS on your decision to become the proud owner of this CONGRATULATIONS CONGRATULATIONS CONGRATULATIONS Plinius 8200P Power Amplifier. This manual has been prepared to help you understand the operation of your amplifier, and to provide information about its design and the variety of ways it may be used. We have designed and manufactured this amplifier to reproduce faithfully and accurately, your favourite music.
- Page 4 Introduction ...........................Page 3 Precautions ...........................Page 5 Amplifier Features – Front Panel ....................Page 6 Amplifier Features – Rear Panel ....................Page 7 Installation and Operation ......................Page 9 Input/Output Connection ......................Page 10 8200P Features ...........................Page 12 Loudspeaker Selection ........................Page 13 Specifications ..........................Page 14 Index ............................Page 15 Contact Details ..........................Page 16...
- Page 5 Please take special note of the following precautions before operating your new amplifier: • The Plinius 8200P Power Amplifier can deliver in excess of 175 watts into 8 ohms. This amplifier is also capable of a very large peak current delivery. •...
-
Page 6: Mains Switch

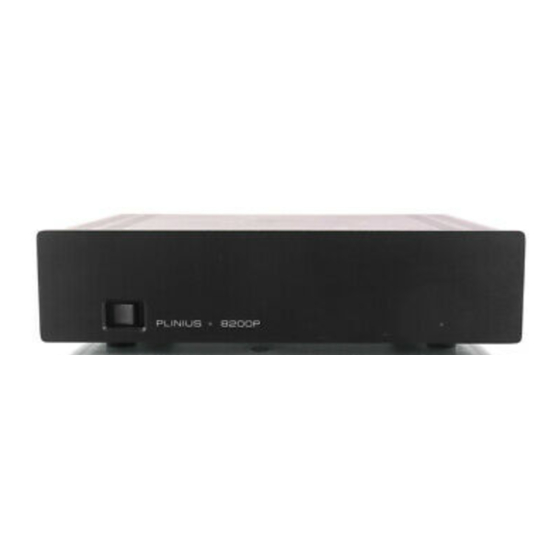

The front of the Plinius 8200P Power Amplifier incorporates all the facilities you will require on a daily basis. PLINIUS 8200P LED’ RONT ANEL AYOUT HOWING ISPLAY AINS WITCH MAINS SWITCH The heavy-duty rocker switch to the left of the panel turns the Mains/Line Power to the amplifier ON or OFF. -
Page 7: Input Terminals
TO REDUCE RISK OF CHASSIS ELECTRICAL SHOCK DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICING PERSONNEL. LIFT OPEN PLINIUS 8200P MkII POWER AMPLIFIER SERIAL No. VOLTAGE POWER DESIGNED AND MANUFACTURED IN RIGHT CHANNEL FUSES LEFT CHANNEL FUSES... -
Page 8: Ground Lift Switch
GROUND LIFT SWITCH This switch is located below the mute switch, and allows the signal ground to be disconnected from the chassis. In some installations a hum loop may exist due to duplicate ground paths from different equipment. Use this switch to remove the connection from 0V to ground thus allowing some flexibility in your particular set-up. -
Page 9: Placement And Ventilation
PLACEMENT AND VENTILATION Your Plinius 8200P operates at a moderately high temperature, especially when being driven hard. The ideal location is upon a rigid stand, or floor mounted away from direct contact with any temperature sensitive materials or deep pile carpets. Ventilation through and around the amplifier should also be kept unimpeded, so ensure that the heat vents (slots in the lid and base) are not covered or restricted in any way. - Page 10 It is important that you connect your loudspeakers (outputs) and preamplifier (inputs) to the Plinius 8200P Power Amplifier correctly to ensure the amplifier is not damaged, and sounds its best with your system. Now that you have read and familiarised yourself with the connections on the back of the amplifier, as covered in the previous section, we will now describe in detail the way in which you can connect the amplifier to your system.
-
Page 11: Connecting The Mains Supply
To achieve a sound performance that is correctly aligned to your room, make sure all of the leads carrying signals for the RIGHT channel loudspeaker are connected to the RIGHT input to the amplifier from your preamplifier or CD player etc. Signals for the LEFT channel should be wired in a similar fashion. CONNECTING THE MAINS SUPPLY Now that your Plinius 8200P Power Amplifier is configured to your system correctly, the mains cable can be plugged into the IEC socket on the back of the amplifier. -
Page 12: Fuse Protection
FUSE PROTECTION When any rail fuse is damaged one or more fuse warning LED’s will light. These LED’s are located next to the fuse that has blown. To replace the fuse, steady the amplifier, then firmly push in the round fuse cap with your fingers. - Page 13 Your Plinius 8200P Power Amplifier is designed for use with high fidelity loudspeakers. It should not be used to operate any other type of appliance or equipment. Choice of loudspeakers is one of personal taste, providing the chosen loudspeakers are suitable for use with your amplifier.
- Page 14 175-WATTS RMS PER CHANNEL INTO 8 OHMS. BOTH CHANNELS DRIVEN FROM 20Hz TO 20kHz AT LESS THAN 0.2% TOTAL HARMONIC DISTORTION. F F F F R R R R : : : : 20Hz to 20kHz ±0.2dB. -3dB at 5Hz and -3dB at 70kHz. REQUENCY REQUENCY REQUENCY...
- Page 15 Bi-wiring............................Page 10 Date of Manufacture ........................Page 3 Front Panel Layout..........................Page 6 Fuse Protection ..........................Page 12 IEC Power Connector....................... Pages 8,11 Input Terminals ........................Pages 8,11 Loudspeaker Impedance .......................Page 13 Loudspeaker Power ........................Page 13 Mains/Line Fuse...........................Page 12 Mains Supply Connection......................Page 11 Mains Switch ..........................Page 6 Mute Switch...........................Page 7 Operating Temperature ......................
- Page 16 For further product information or queries, please contact us at the address below. PLINIUS PLINIUS products are designed and manufactured by: PLINIUS PLINIUS Audible Technologies Ltd. Audible Technologies Ltd. Audible Technologies Ltd. Audible Technologies Ltd. P.O. Box 1836 36 36 36 P.O.
