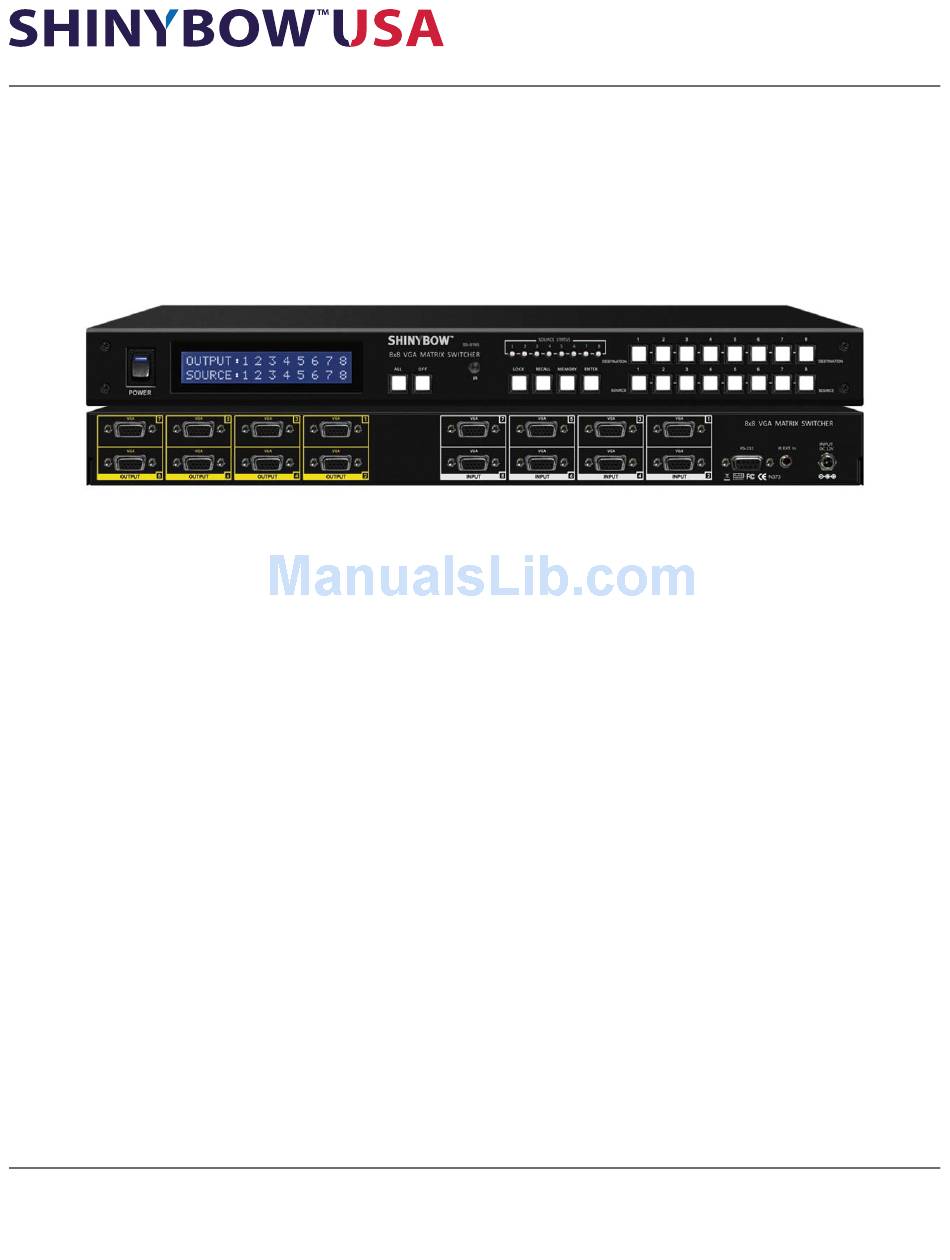

INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-8180LCM

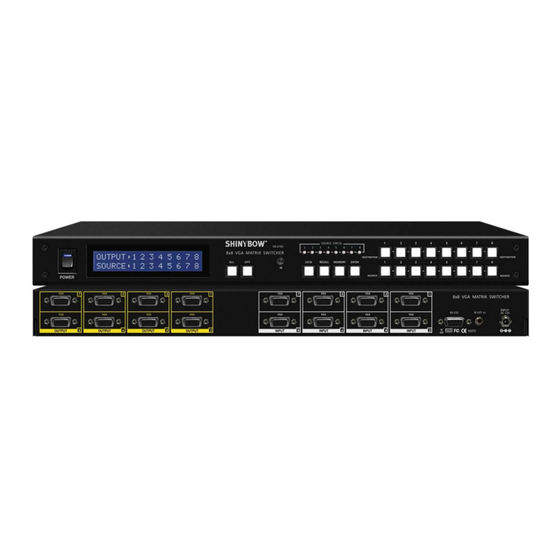

8x8 VGA MATRIX SWITCHER
8x8 VGA MATRIX SWITCHER
VGA - RGBHV Matrix Switcher Series
Thank you for purchasing the SB-8180LCM 8x8 VGA (RGBHV) Matrix Switcher. You will fi nd this unit easy to
install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8
VGA Matrix Switcher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-8180LCM
Summary of Contents for Shinybow USA SB-8180LCM
- Page 1 VGA - RGBHV Matrix Switcher Series Thank you for purchasing the SB-8180LCM 8x8 VGA (RGBHV) Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use 8x8...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
8x8 VGA-RGBHV matrix switching product on the market Today. PSU if it is damaged. The SB-8180LCM is a true 8x8 Matrix Routing Switcher for VGA • Do not allow anything to rest on the power cabling or allow any (RGBHV) signals. It is an 8 individual VGA inputs with 8 individual weight to be placed upon it or any person walk on it. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Supports 8x inputs VGA(RGBHV) to 8x VGA(RGBHV) outputs Matrix Switcher • Input signals support via VGA (RGBHV) • Output Signals support VGA-RGBHV device of Monitor, plasma, LCD display • Higher Video Bandwidth 450MB each path R,G,B signals. •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2. - Page 6 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL Disables (mute) video on all destinations OR assign the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” to indicate none of the destinations are assigned a video source. Option 2 - Press ALL followed by Source 1 thru 8.
- Page 7 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY The system will show store presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys 1 thru 8 as the memory preset location. - Confi...
-
Page 8: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The Switcher is fi tted with a DC power plug-park input connector. DC Jack - Inner OD Ø 2.1 mm (+) Please ensure that the plug-park used is of an approved type and Outside OD Ø... -
Page 9: Remote Control
REMOTE CONTROL Before making any connections to the SB-8180LCM. Observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. -
Page 10: Remote Protocol Commands
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES : CUSTOM CODE : 2DD2 POWER ON : 2DD2 2DD2 POWER OFF : 2DD2 05FA ALL : 2DD2 B04F OFF : 2DD2 B14E LOCK : 2DD2 B54A RECALL : 2DD2 B24D ENTER :... -
Page 11: Typical Application
VIDEO - VGA (RGBHV), connector with HD-15p (D-Sub) OUTPUT 1 ~ 8 PORT VGA CONNECT TO DISPLAY MONITOR SIGNALS : VIDEO - VGA (RGBHV), connector with HD-15p (D-Sub) SB-8180LCM SUPPORT COMPONENT EIGHT INPUTS MATRIX TO EIGHT SWITCH OUTPUTS SUPPORT CONTROL IR & RS-232 INTERFACE SYSTEM PORTS. -
Page 12: Ir Extender
IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2. - Page 13 IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2.
-
Page 14: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION -2.0 COMPATIBLE For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used... -
Page 15: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 16 M ULT IM EDI A AUDIO AN D V IS UA L 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
