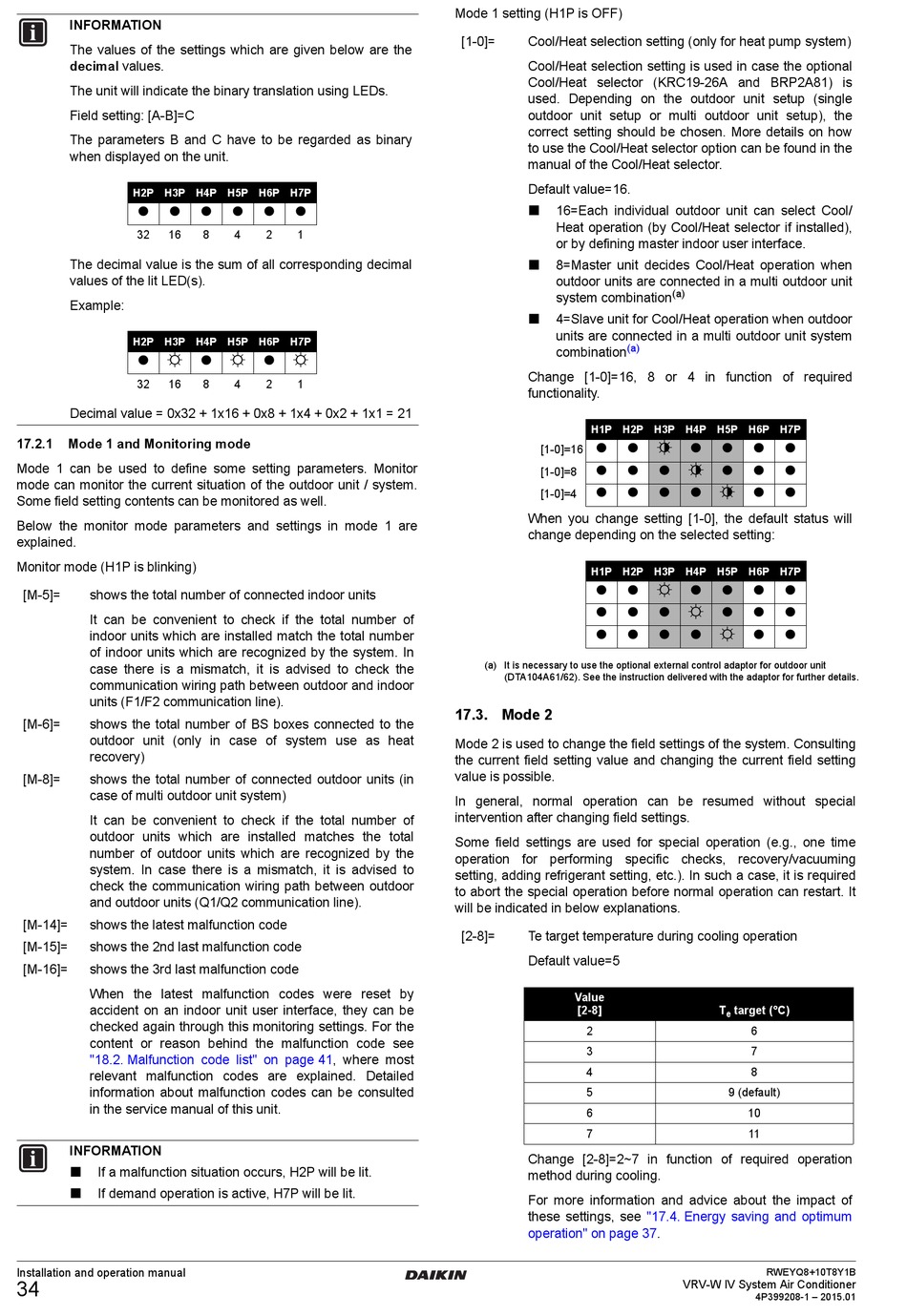

INFORMATION
The values of the settings which are given below are the
decimal values.
The unit will indicate the binary translation using LEDs.
Field setting: [A-B]=C
The parameters B and C have to be regarded as binary
when displayed on the unit.
H2P H3P H4P H5P H6P H7P
32 16
The decimal value is the sum of all corresponding decimal
values of the lit LED(s).
Example:
H2P H3P H4P H5P H6P H7P
32 16
Decimal value = 0x32 + 1x16 + 0x8 + 1x4 + 0x2 + 1x1 = 21
17.2.1 Mode 1 and Monitoring mode
Mode 1 can be used to define some setting parameters. Monitor
mode can monitor the current situation of the outdoor unit / system.
Some field setting contents can be monitored as well.
Below the monitor mode parameters and settings in mode 1 are
explained.
Monitor mode (H1P is blinking)
[M-5]= shows the total number of connected indoor units
It can be convenient to check if the total number of
indoor units which are installed match the total number
of indoor units which are recognized by the system. In
case there is a mismatch, it is advised to check the
communication wiring path between outdoor and indoor
units (F1/F2 communication line).
[M-6]= shows the total number of BS boxes connected to the
outdoor unit (only in case of system use as heat
recovery)
[M-8]= shows the total number of connected outdoor units (in
case of multi outdoor unit system)
It can be convenient to check if the total number of
outdoor units which are installed matches the total
number of outdoor units which are recognized by the
system. In case there is a mismatch, it is advised to
check the communication wiring path between outdoor
and outdoor units (Q1/Q2 communication line).
[M-14]= shows the latest malfunction code
[M-15]= shows the 2nd last malfunction code
[M-16]= shows the 3rd last malfunction code
When the latest malfunction codes were reset by
accident on an indoor unit user interface, they can be
checked again through this monitoring settings. For the
content or reason behind the malfunction code see
"18.2. Malfunction code list" on page
relevant malfunction codes are explained. Detailed
information about malfunction codes can be consulted
in the service manual of this unit.
INFORMATION
If a malfunction situation occurs, H2P will be lit.

If demand operation is active, H7P will be lit.

Installation and operation manual
34
8 4 2 1
8 4 2 1
41, where most
Mode 1 setting (H1P is OFF)
[1-0]= Cool/Heat selection setting (only for heat pump system)
Cool/Heat selection setting is used in case the optional
Cool/Heat selector (KRC19-26A and BRP2A81) is
used. Depending on the outdoor unit setup (single
outdoor unit setup or multi outdoor unit setup), the
correct setting should be chosen. More details on how
to use the Cool/Heat selector option can be found in the
manual of the Cool/Heat selector.
Default value=16.
16=Each individual outdoor unit can select Cool/

Heat operation (by Cool/Heat selector if installed),
or by defining master indoor user interface.
8=Master unit decides Cool/Heat operation when

outdoor units are connected in a multi outdoor unit
system combination
4=Slave unit for Cool/Heat operation when outdoor

units are connected in a multi outdoor unit system
combination
Change [1-0]=16, 8 or 4 in function of required
functionality.
H1P H2P H3P H4P H5P H6P H7P
[1-0]=16
[1-0]=8
[1-0]=4
When you change setting [1-0], the default status will
change depending on the selected setting:
H1P H2P H3P H4P H5P H6P H7P
(a) It is necessary to use the optional external control adaptor for outdoor unit
(DTA104A61/62). See the instruction delivered with the adaptor for further details.

17.3. Mode 2

Mode 2 is used to change the field settings of the system. Consulting
the current field setting value and changing the current field setting
value is possible.
In general, normal operation can be resumed without special
intervention after changing field settings.
Some field settings are used for special operation (e.g., one time
operation for performing specific checks, recovery/vacuuming
setting, adding refrigerant setting, etc.). In such a case, it is required
to abort the special operation before normal operation can restart. It
will be indicated in below explanations.
[2-8]= Te target temperature during cooling operation
Default value=5
Value
[2-8]
2
3
4
5
6
7
Change [2-8]=2~7 in function of required operation
method during cooling.
For more information and advice about the impact of
these settings, see
operation" on page
(a)
(a)
T target (°C)
e
6
7
8
9 (default)
10
11
"17.4. Energy saving and optimum
37.
