Quartz CWM 55 Technical Manual page 25

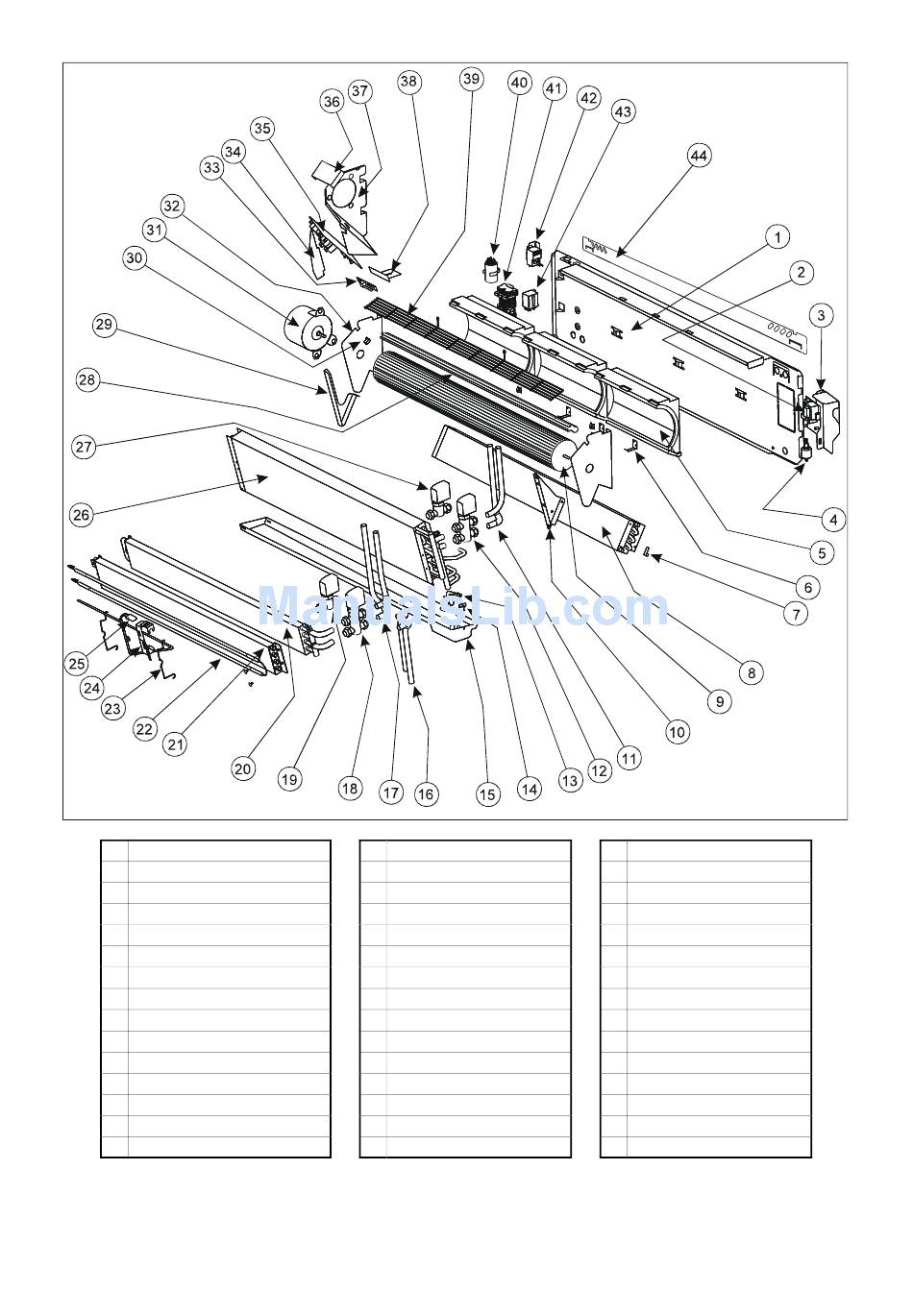

EXPLODED VIEW OF CWM (L) with COMPONENT IDENTIFICATION
1 Back panel
2 Condensate pump PCB
3 Condensate pump bracket
4 Condensate pump
5 Scroll
6 Case fixing bracket
7 Drain tray clip
8 CW coil (rear)
9 Fan
10 R/H coil support bracket
11 CW pipes (shown top exit)
12 4 port CW valve
13 Condensate pump sensor/filter
14 Sensor bracket
15 Drain tray
16 LPHW pipes (bottom exit)
17 LPHW pipes (top exit)
18 4 port LPHW valve
19 2 port LPHW valve
20 LPHW coil
21 Heater coil
22 Heater elements
23 Heater coil retaining clip
24 Heater cutout bracket
25 Heater cutout
26 CW coil (front)
27 2 port CW valve
28 Air flow cut-off
29 L/H coil support bracket
30 Resistor
-25-
31 Motor
32 Fan support bracket
33 IR receiver PCB (CWM L)
34 Blanking plate (CWM L)
35 Main PCB (CWM L)
36 Terminal mounting bracket
37 Electrics panel
38 IR PCB mounting bracket
39 Fan guard
40 Capacitor (CWM shown)
41 Terminals (CWM shown)
42 De-ice thermostat (CWM)
43 Heater relay (CWM)
44 Wall mounting bracket
