5m HIGH CONDENSATE PUMP KIT FOR CWM (L) UNITS 55600420
This kit is for use on all versions of CWM and CWM L units and is for condensate removal where a lift of up to 5m is
required.
The pump runs on demand.
A high level alarm will switch off the cooling signal until condensate has dropped below a pre-set level.
It is easier to fit this kit before installing the unit.
IF THE UNIT HAS BEEN INSTALLED, ISOLATE THE SYSTEM BEFORE FITTING THE KIT

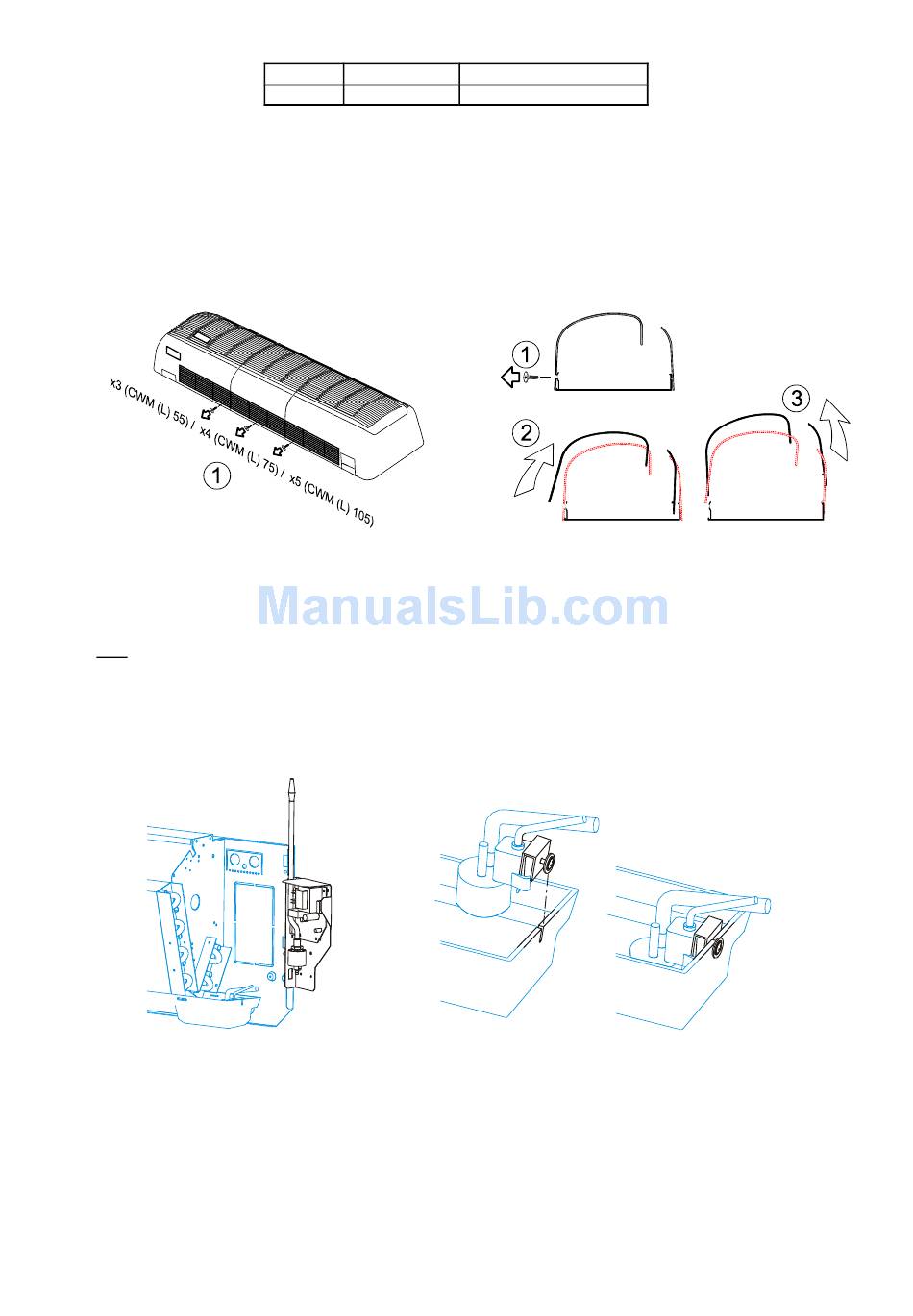

1. CABINET REMOVAL
2.

FITTING THE KIT

a) Fit the pump assembly into its temporary position (Fig.1) by sliding the hooks on the pump assembly bracket into the
cut-outs on the back panel side flange.
Note: This is not the final position, but it makes installation easy.
b) Fit the sensor/filter inside the drain tray (Fig.2). Do not over tighten the screw.
Fig.1
ITEM QTY
1 1
-19-
DESCRIPTION
Pump Assembly
Fig.2
.
