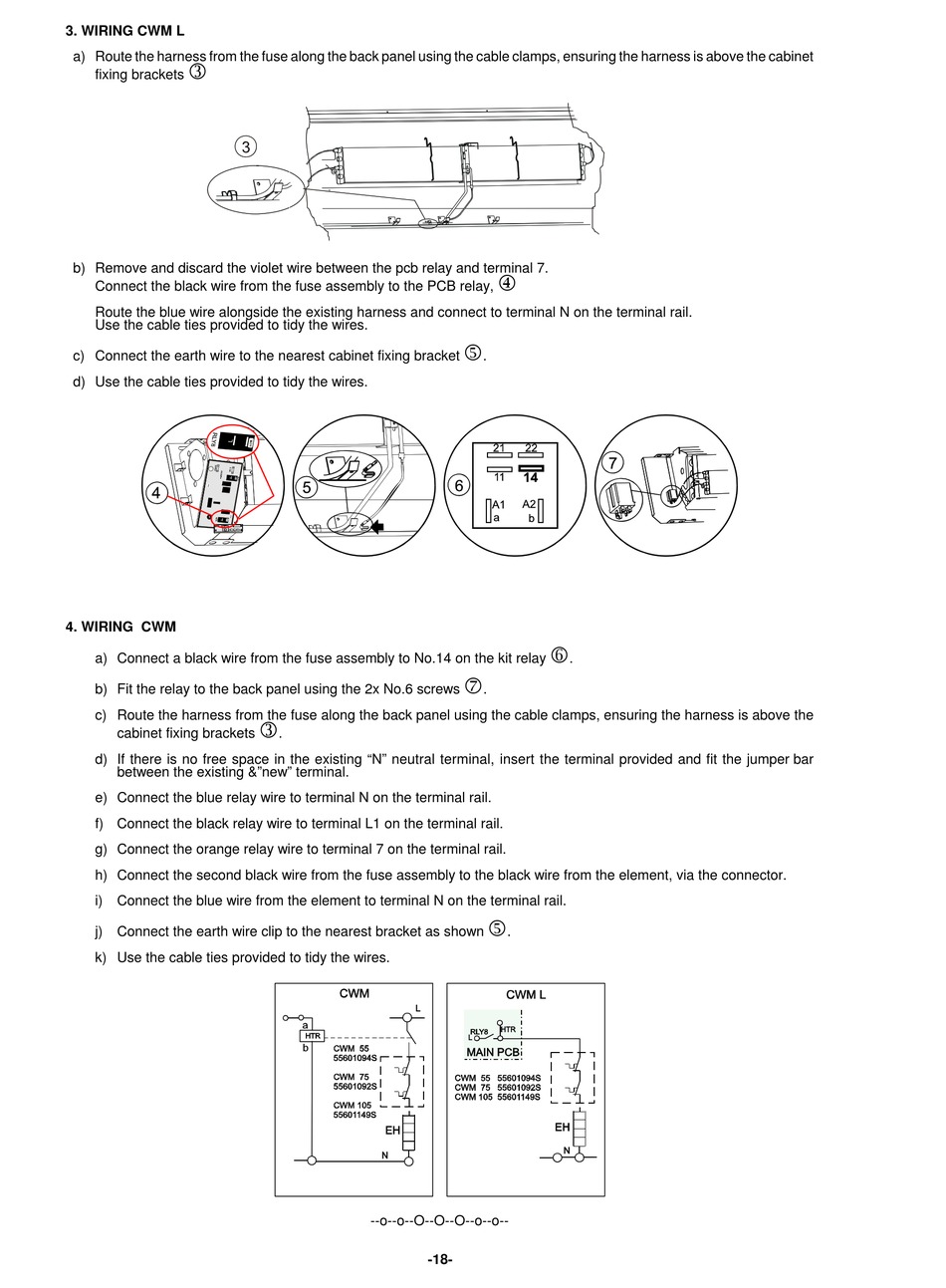

Quartz CWM 55 Technical Manual page 18

3. WIRING CWM L
a) Route the harness from the fuse along the back panel using the cable clamps, ensuring the harness is above the cabinet
3
fixing brackets
b) Remove and discard the violet wire between the pcb relay and terminal 7.
Connect the black wire from the fuse assembly to the PCB relay,
Route the blue wire alongside the existing harness and connect to terminal N on the terminal rail.
Use the cable ties provided to tidy the wires.
c) Connect the earth wire to the nearest cabinet fixing bracket
d) Use the cable ties provided to tidy the wires.
4. WIRING CWM
a) Connect a black wire from the fuse assembly to No.14 on the kit relay
b) Fit the relay to the back panel using the 2x No.6 screws
c) Route the harness from the fuse along the back panel using the cable clamps, ensuring the harness is above the
cabinet fixing brackets
d) If there is no free space in the existing "N" neutral terminal, insert the terminal provided and fit the jumper bar
between the existing &"new" terminal.
e) Connect the blue relay wire to terminal N on the terminal rail.
f) Connect the black relay wire to terminal L1 on the terminal rail.
g) Connect the orange relay wire to terminal 7 on the terminal rail.
h) Connect the second black wire from the fuse assembly to the black wire from the element, via the connector.
i) Connect the blue wire from the element to terminal N on the terminal rail.
j) Connect the earth wire clip to the nearest bracket as shown
k) Use the cable ties provided to tidy the wires.
3
.
--o--o--O--O--O--o--o--
4
5
.
6
.
7
.
5
.
-18-
