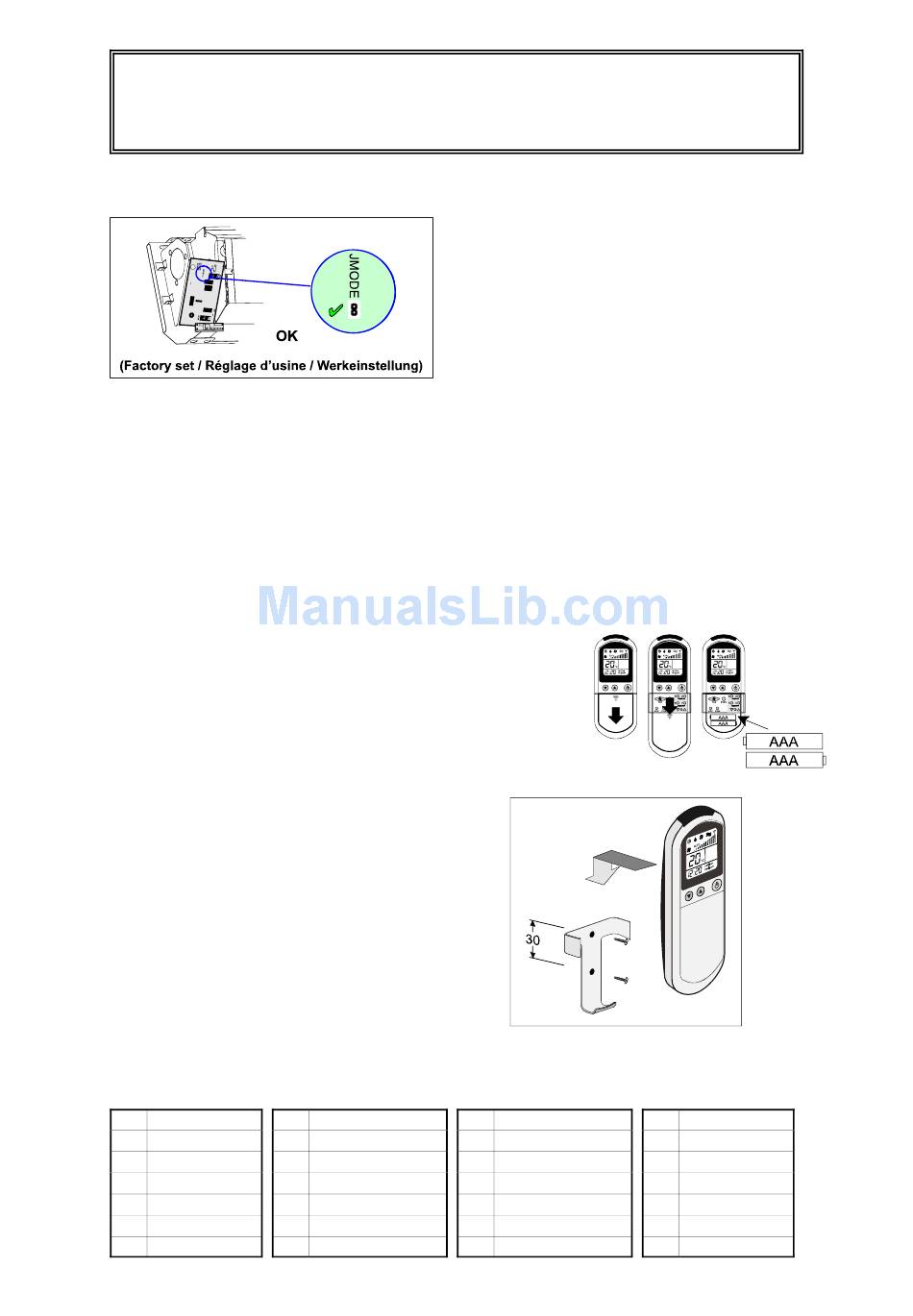

CWM L PCB CONFIGURATION
The PCB is factory set for CWM L units.
No reconfiguration is needed, with or without an electric heater.
CWM L PCB (FACTORY CONFIGURED FOR CWM L UNITS: JUMPER JMODE NOT REQUIRED)
OPTIONAL CWM L REMOTE CONTROLLER
CWM L units use an electronic remote control (available separately, part number 55500309).
Any convenient number of units may be operated with one controller.
Infrared operation
Slide open the front cover: press down on the top at
the marked area and push off the cover.
Insert the batteries ensuring correct polarity.
The display will blank and reset.
Replace the cover by sliding into position.
Operating instructions are on page 16.
For convenience, the wall mounting bracket may be secured
to a wall and used to park the controller.
KEY TO WIRING DIAGRAMS
B Brown
BL Blue
BK Black
GRY Grey
P Pink
R Red
V Violet
--o--o--O--O--O--o--o--
--o--o--O--O--O--o--o--
W White
Y Yellow
G/Y Green / yellow
C Capacitor
EH Electric heater
F Fuse
H Heat / heater
-13-
L Live
M1 Fan motor
M2 Cond pump motor
N Neutral
PE Protective earth
RY Relay
RT Remote thermostat
S1 Condensate sensor
TP1 Thermal protector
TP2 Thermal fuse
V1 Cooling valve
V2 Heating valve
- -> - - Not supplied
