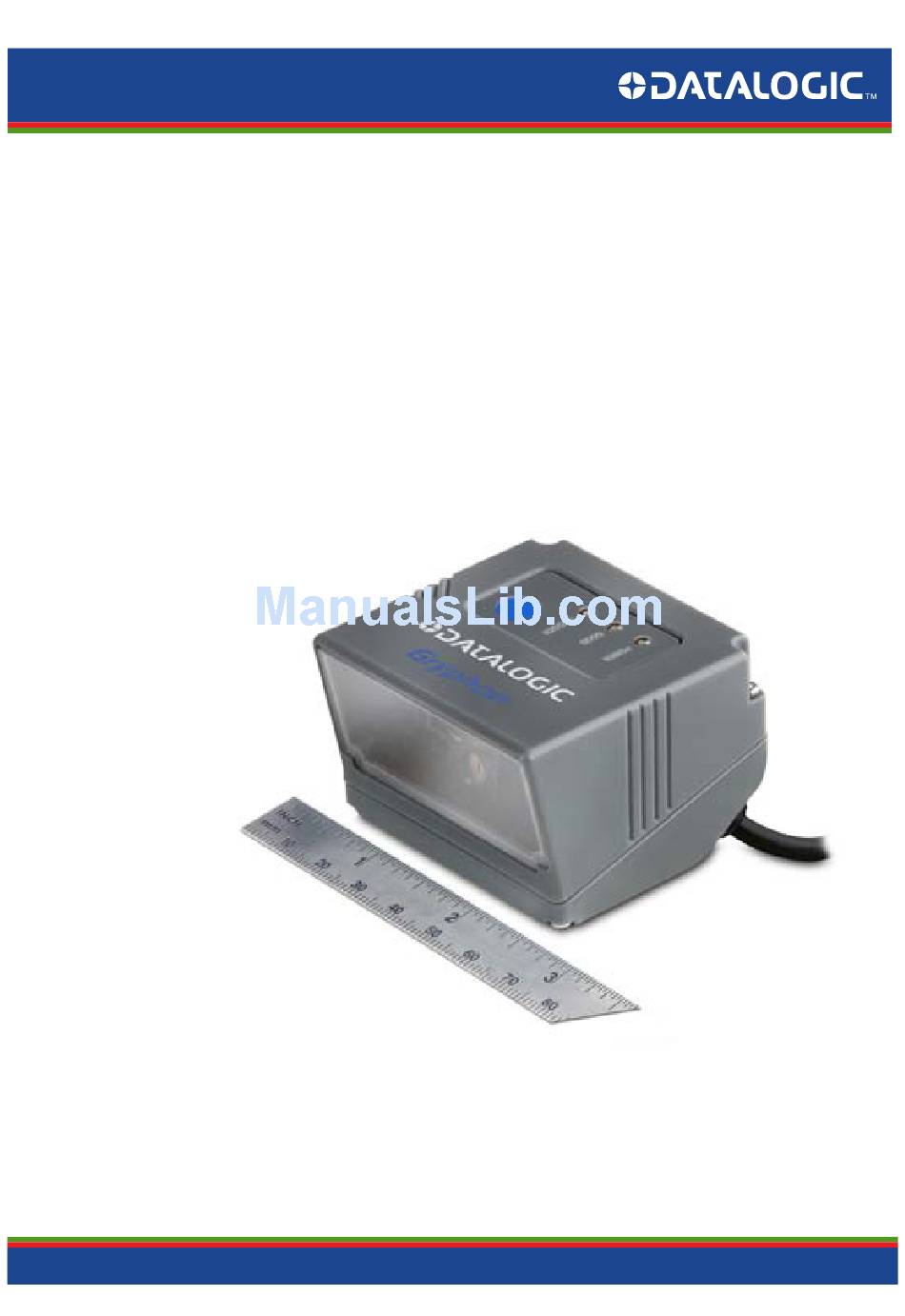

- Page 1 Gryphon™ GFS4XXX Fixed Mount Linear Imager Bar Code Reader Quick Reference Guide...
- Page 2 Datalogic website (www.scanning.datalogic.com) or provided on appropri- ate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page.
-
Page 3: Table Of Contents
Ergonomic Recommendations ..................18 Regulatory Information ..................... 19 Reader Labeling ........................19 WEEE Statement ........................21 Datalogic Scanning Limited Factory Warranty ............22 Warranty Coverage ..................22 Warranty Claims Process ................23 Warranty Exclusions ..................24 No Assignment ....................25... - Page 4 NOTES...
- Page 5 Datalogic Product ("End User"). For purposes of this Agreement, any software that is associated with a separate end-user license agreement is licensed to you under the terms of that license agreement. Datalogic and End User hereby agree as fol- lows: 1.
- Page 6 Software is protected by intellectual property laws and treaties. The license set forth in this Agreement does not transfer to End User any ownership of Datalogic's or its third party licensors' copyrights, patents, trademarks, service marks, trade secrets, or other intellectual prop- erty rights and End User shall have no right to commence any legal actions to obtain such rights.
- Page 7 2) Datalogic controls the defense or settlement of the claim, and 3) End User cooperates fully with Datalogic in such defense or settlement. All notices of a claim should be sent to Data- logic Scanning, Inc., Legal Department, 959 Terry Street, Eugene, OR 97402.
- Page 8 This provides our customers with the very latest in Datalogic software technology. The only exception to this policy is when the buyer has a signed contract with Datalogic that clearly defines the terms and conditions for making software/firmware changes in products shipped to the buyer.
- Page 9 Unlike currently available products, the GFS4XXX uses the latest and fastest imaging technology and offers Datalogic’s Green Spot for targeting and good read feedback. The scanning technology is essentially the same as the Gryphon I 4100 family of linear imagers, with some adjustments made for read range and improved motion tolerance.
-
Page 10: Setting Up The Reader
To simulate a Keyboard, scan the bar code below: Interface Selection: USB-KBD (GFS4170 model only ) To simulate an RS-232 Standard Interface scan the bar code below: Interface Selection: USB-COM (GFS4170 Model only) Download the correct USB COM driver from: http://www.datalogic.com. IMPORTANT Gryphon™ GFS4XXX... - Page 11 Setting Up the Reader Select USB Keyboard with alternate key encoding: USB Alternate Keyboard Select USB Keyboard for Apple computers: USB-KBD-APPLE Select RS-232 Wincor-Nixdorf: RS-232 Wincor-Nixdorf Quick Reference Guide...
-
Page 12: Mounting Bracket
Setting Up the Reader Mounting Bracket The GFS4XXX can be mounted to a stationary surface using a bracket as shown below. Just attach to the bottom of the reader using screws, as shown in the next two figures. Figure 1. Mounting the bracket Gryphon™... - Page 13 Setting Up the Reader Figure 2. Bracket Attached Quick Reference Guide...
-
Page 14: Programming
Programming Programming For your convenience, this guide includes the programming bar codes re- quired to configure the reader. If you aren't sure what programming options are in your reader, or you've changed some options and want the factory settings restored, scan the bar code below: Restore Default Settings Operating Modes... -
Page 15: Exposure Modes
Programming Operating Modes (continued) Operating Mode = On Line Operating Mode = Automatic Operating Mode = Automatic (Object Sense) Exposure Modes Continuous Strobed Quick Reference Guide... -
Page 16: Technical Features
Technical Features Technical Features Item Description Physical Characteristics Color Grey Height 1.54" / 39mm Dimensions Length 2.24" / 57mm Width 2.28" / 58 mm USB model - Approx. 5.0 ounces/140 g Weight (without brackets) RS-232 model - approx. 6.0 ounces/170 g Electrical Characteristics Input Voltage 5 VDC ±... - Page 17 Technical Features Item Description Performance Characteristics Scan rate 320 scans/s (max) Light Source Dual LEDs (Red Light, =620 nm) Roll Angle Tolerance ± 35° Pitch Angle Tolerance ± 65° (Avoid zero angle, ± 6°) Skew Angle Tolerance ± 65° 5 mil - 2" to 6.3" (5cm to 16cm) 8 mil - 1.2"...
- Page 18 Technical Features Item Description User Environment Operative Temperature 32° to 122° F (0° to 50° C) Storage Temperature -13° to 158° F (-25° to 70° C) Humidity Operating: 5% to 90% relative humidity, non condensing Drop specifications 5 drops from 30 inches (0.76 mt.) to concrete Ambient Light immunity Up to 100,000 Lux Contaminants...
-
Page 19: Rs-232 Electrical Connections
Technical Features RS-232 Electrical Connections 9-pin connector Trigger Trigger signal input (see on next page) Figure 4 Figure 5 Transmit Data Receive Data Not connected Ground +5Vdc Clear To Send Request To Send Output signal (see Figure 3 Default configuration RS-232: 9600, 8, N, 1, no handshaking, ACK/NAK disabled. - Page 20 Technical Features Figure 4. Using GFS4150-9 Power GFS4150-9 EXT TRIGGER TRIGGER Figure 5. Using External Power Supply GFS4150-9 EXT TRIGGER Vext 30Vdc TRIGGER Gryphon™ GFS4XXX...
-
Page 21: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications Button and LED Status The top of the product has a button and three indicator LEDs: ON = Power ON POWER OFF = Power OFF or standby (only (yellow LED) USB model) ON = Good Read GOOD Blinks = USB enumeration or inter-... -
Page 22: Ergonomic Recommendations
Ergonomic Recommendations Ergonomic Recommendations In order to avoid or minimize the potential risk of ergonomic injury follow the recommendations below. Consult with your local Health & Safety Manager to ensure that you are adhering to your company’s safety programs to prevent employee injury. CAUTION •... -
Page 23: Regulatory Information
Any changes or modifications to equipment not expressly approved by Datalogic could void the user's authority to operate the equipment. Reader Labeling Sample labels are shown for illustrative purposes only. Please view the la- bels on your product for actual details, as they may vary. - Page 24 Reader Labeling Gryphon™ GFS4XXX...
-
Page 25: Weee Statement
Webseite www.scanning.datalogic.com. Spanish Si desea información acerca de los procedimientos para el desecho de los residuos del equipo eléctrico y electrónico (WEEE), visite la página Web www.scanning.datalogic.com. Portuguese Para informações sobre a disposição de Sucatagem de Equipamentos Elétricos e Eletrônicos (WEEE -Waste Electrical and Electronic Equipment), consultar o site web www.scanning.datalogic.com. -
Page 26: Datalogic Scanning Limited Factory Warranty
Products are sold on the basis of specifications applicable at the time of manufacture and Datalogic has no obligation to modify or update products once sold. If Datalogic determines that a product has defects in material or work-... -
Page 27: Warranty Claims Process
Datalogic or until the expiration of the original warranty period, which- ever is longer. Datalogic does not guarantee, and it is not responsible for, the maintenance of, damage to, or loss of configurations, data, and ap- plications on the repaired units and at its sole discretion can return the units in the “factory default”... -
Page 28: Warranty Exclusions
Warranty Exclusions The Datalogic Factory Warranty shall not apply to: any product which has been damaged, modified, altered, repaired or upgraded by other than Datalogic service personnel or its authorized representatives; (ii) any claimed defect, failure or damage which Datalogic deter-... -
Page 29: No Assignment
Risk of Loss Customer shall bear risk of loss or damage for product in transit to Dat- alogic. Datalogic shall assume risk of loss or damage for product in Dat- alogic’s possession. In the absence of specific written instructions for the... - Page 30 Datalogic Scanning Limited Factory Warranty NOTES Gryphon™ GFS4XXX...
-
Page 31: Declaration Of Conformity
DECLARATION OF CONFORMITY EC-064 Rev.: 0 Pag.: 1 di 1 Datalogic Scanning Group Srl Via S. Vitalino, 13 Lippo di Calderara di Reno (BO) 40012 Italy dichiara che declares that the déclare que le bescheinigt, daß das Gerät declare que el... - Page 32 Telephone: 49 (0) 61 51/93 58-0 Telephone: (65) 6435-1311 germany.scanning@datalogic.com singapore.scanning@datalogic.com India Iberia Datalogic Scanning India Datalogic Scanning SAS Sucursal en España Telephone: 91- 22 - 64504739 Telephone: 34 91 746 28 60 india.scanning@datalogic.com spain.scanning@datalogic.com Italy United Kingdom Datalogic Scanning SpA Datalogic Scanning LTD Telephone: [39] (0) 39/62903.1...
