71-7690-250
11/08
Lionel
CA-4 Caboose
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-4 Caboose and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel CA-4 Caboose

Summary of Contents for Lionel CA-4 Caboose

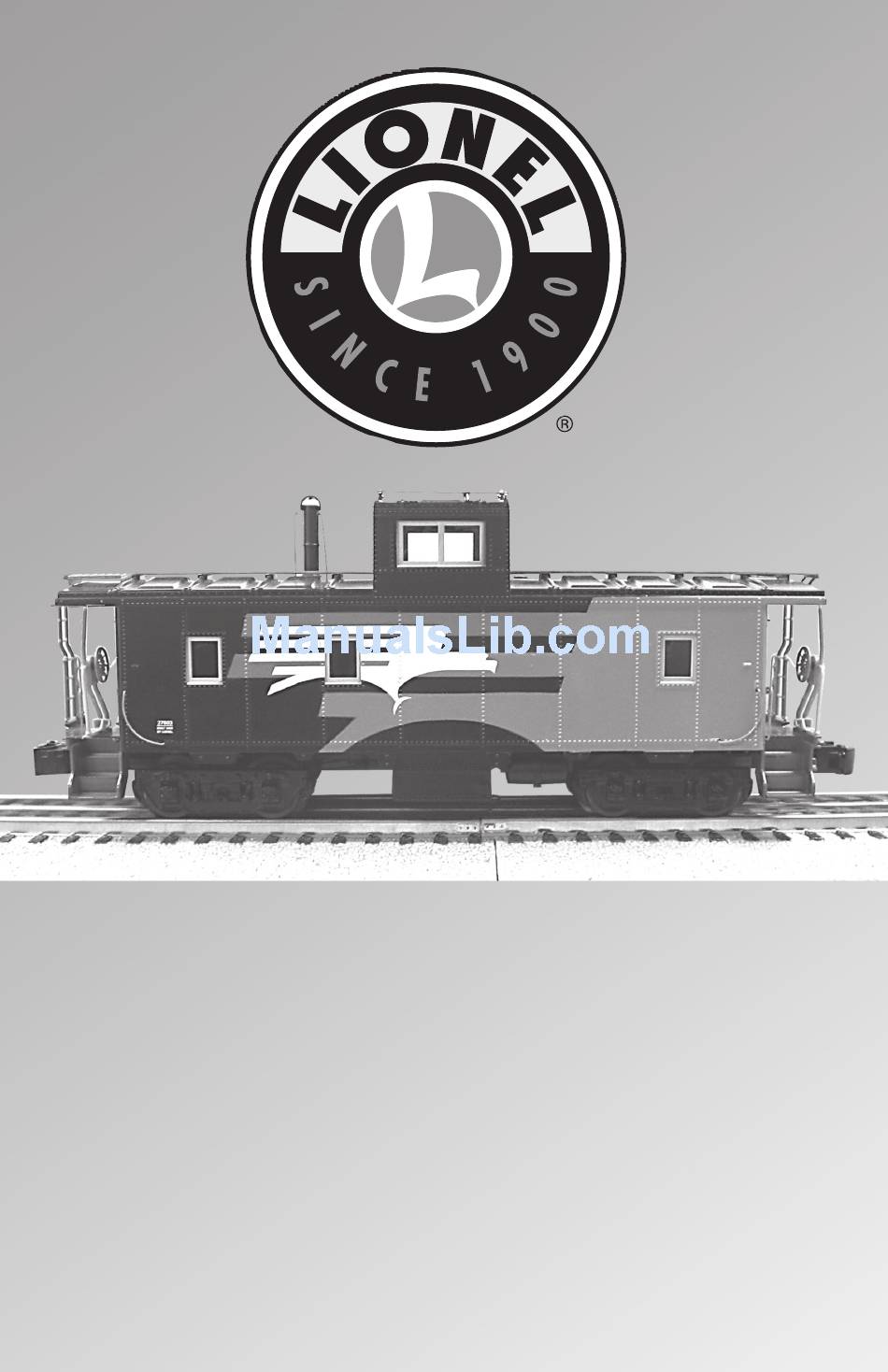

  • Page 1 71-7690-250 11/08 Lionel CA-4 Caboose Owner’s Manual...
  • Page 2 Adding smoke fluid to your caboose’s smoke unit Switching your smoke generator ON or OFF Replacing the interior lamps Notes Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel , TrainMaster , Odyssey...
  • Page 3 Operating the couplers o operate the couplers by hand, slide the uncoupling tab on the side of the coupler shaft back towards the car. Do not push down on the tab. To operate the couplers with a Remote-Control Track section (available separately, 6-65530 for O gauge; 6-12746 or 6-65149 for O-27;...
  • Page 4 The smoke generator requires the periodic addition of Lionel smoke fluid in order to function. Swing the hood at the top of the stack out of the way before adding smoke fluid as illustrated in Figure 2.

  • Page 5: Switching Your Smoke Generator On Or Off

    Switching your smoke generator ON or OFF s illustrated in Figure 3, the SMOKE switch is located on the underside of your caboose. Sliding this switch to the ON position will activate the smoke generator. Be sure that you have added smoke fluid when the switch is in the ON position. Slide the switch to the OFF position to turn off the smoke unit.

  • Page 6: Replacing The Interior Lamps

    Replacing the interior lamps our caboose is lighted by three interior lamps, Lionel part no. 630-9134-300. During the course of normal operations, these lamps may require replacement. Please contact your authorized Lionel Service center if your lamp requires replacement.
  • Page 7 Notes...

  • Page 8: Warranty Information

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
