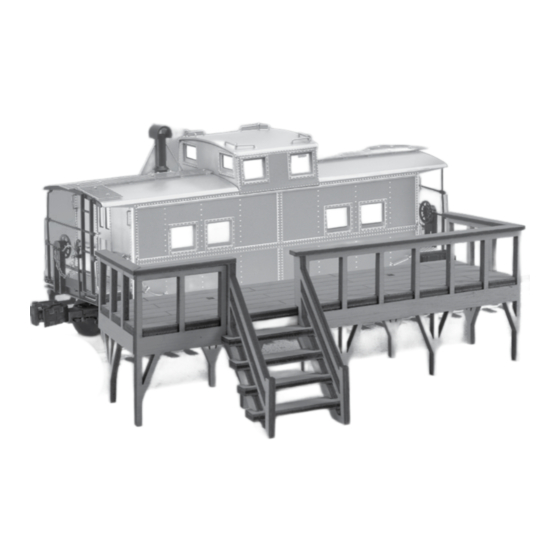

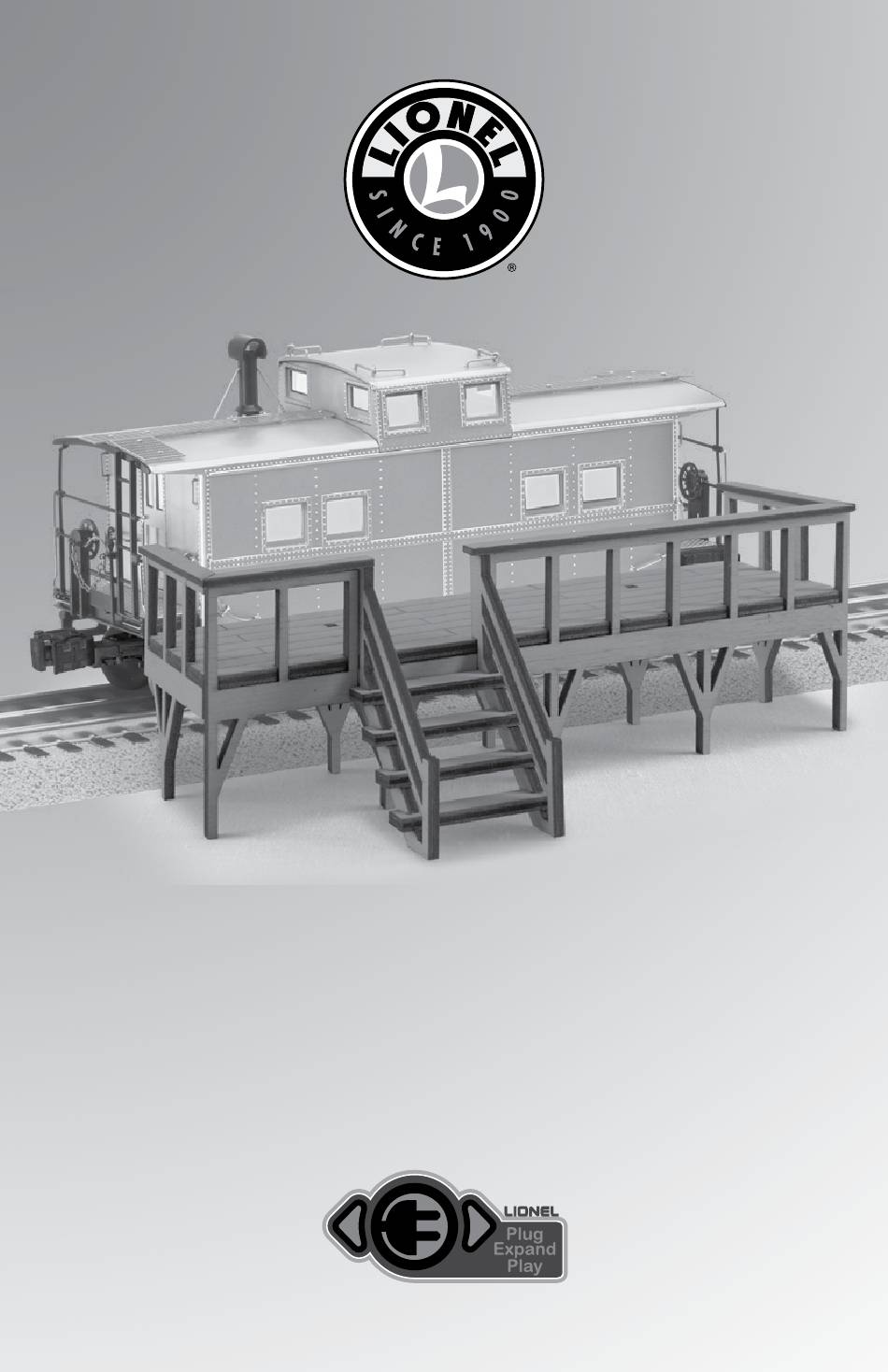

- Page 1 20329130250 12/22 Lionel Lionel Caboose with Deck Caboose with Deck Owner’s Manual Owner’s Manual...
- Page 2 More complicated wiring necessary on older accessories is ® simplified with the new standardized cable system fitted on every Plug-Expand-Play accessory. The following Lionel marks are used throughout this Owner’ s Manual and are protected under law. All rights reserved. Lionel ® , Plug-Expand-Play ®...
- Page 3 Wiring your caboose to a Plug-Expand-Play lock-on our Northeastern caboose and decking comes with a 10 inch piece of FasTrack with a male con- nector cable. Your caboose interior lighting is powered by the track, connecting the 10 inch Plug- Expand-Play FasTrack to a power supply will allow you to park your accessory off your main track.
- Page 4 Wiring your caboose to a Plug-Expand-Play lock-on continued On/Off switch Figure 2. Switch location...
- Page 5 Lionel Caboose Restaurant Deck Assembly Instructions our decking is made of unfinished birch material. You can choose to paint or stain prior to assem- bly should you choose. Note! Paint, stain & wood glue are not included in this kit. Test fits parts together prior to gluing.
- Page 6 Lionel Caboose Restaurant Deck Assembly Instructions continued...
- Page 7 LED that is expected to last for the life of the accessory. The LED is not user serviceable. If service is required, we recommend that you have your accessory serviced at a Lionel Factory Trained Authorized Service Station or Lionel Service.
- Page 8 Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
