- Page 1 LCT 450 USER MANUAL...
-
Page 2: Table Of Contents
index intro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . features and top applications . -
Page 4: Intro
Thank you for choosing the LEWITT LCT 450! The LCT 450 delivers exceptionally high value for money, that makes the LCT 450 a true studio workhorse and a perfect candidate for building up your microphone collection. The Austrian-developed LCT 450 features a... -
Page 5: Features And Top Applications
Top applications LEWITT’s entrance to the world of large diaphragm Vocals & background vocals condenser microphones at an affordable price Classic drum & percussion overhead Natural authentic sound with first-class transient Acoustic instruments (strings, guitars, piano and response similar) -
Page 6: User Interface

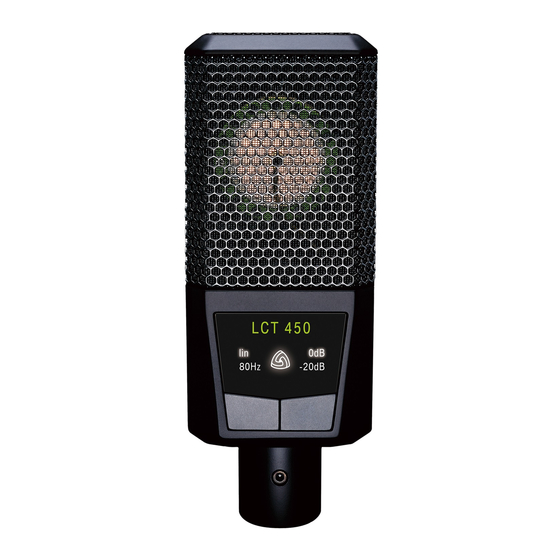

User interface Status indicator Indicates different active settings such as key lock, automatic attenuation, clipping history ... see below for details. Low-cut filter / Use to reduce unwanted low frequency noise caused by wind, footsteps, structure-borne noise or likewise. The low-cut filter at 80Hz affects the microphone input by 12 dB per octave and can be set by pressing the left pushbutton Pre-Attenuation... - Page 7 Right pushbutton Push to change attenuation settings. Also activates Automatic Attenuation. Automatic Attenuation Pressing the right push button for more than two seconds activates (Status Indicator turns red) and deactivates (Status Indicator turns white) Automatic Attenuation. In this mode the microphone adjusts the attenuation setting automatically when clipping has occurred. Key Lock Press and hold either the left or the right push button for about four seconds to activate (Status Indicator...
-
Page 8: Technical Data
Tech Data Low-cut 6 dB / octave at 80 Hz Rated impedance Acoustical operating principle < 150 ohms pressure gradient transducer, externally polarized Rated load impedance Transducer Ø > 1.000 ohms 25.4 mm / 1 inch Supply voltage Polar pattern 48 V +/- 4 V Cardioid Current consumption... -
Page 9: Safety Guidelines
Safety guidelines The capsule is a sensitive, high precision component. Make sure you do not drop it from high heights and avoid strong mechanical stress and force. To ensure high sensitivity and best sound reproduction of the microphone, avoid exposing it to moisture, dust or extreme temperatures. -
Page 10: Warranty
To avoid any damages in transit, please use the original packaging if available. Please do not send your product to LEWITT GmbH directly as it will not be serviced. Freight charges have to be covered by the owner of the product. -
Page 11: Regulatory Information
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause DI Roman Perschon undesired operation. CEO LEWITT GmbH Declaration of conformity can be requested at info@lewitt-audio.com.
